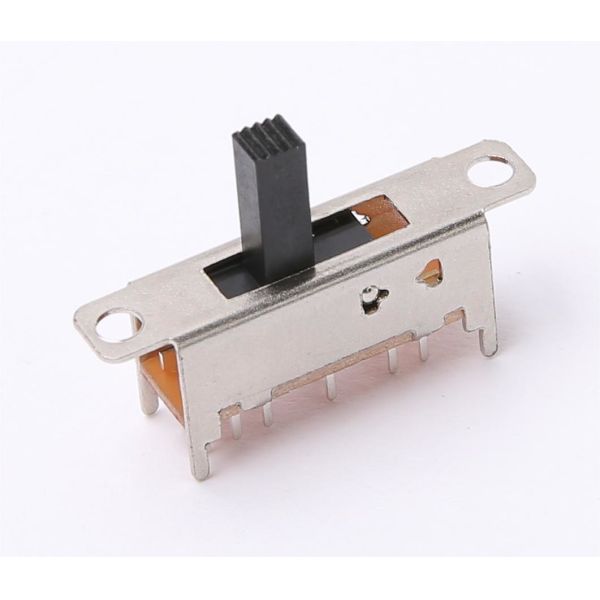

SS25D03 SPDT Slide Switch 2Pole 5 Positions DIP PCB Soldering Type With Flange

Product Description

SS Series Mini slide switch for DC application,SMD or through hole terminals1P3T, 1P3T, 2P2T & 2P3T,2P4T,2P5T functions.

Features:

Mini Type

Smooth Slide Performance

PCB Through Hole Insersion Soldering

Clear Click Sound

Complaint to RoHS Directive

How to order:

What is Slide Switch

A slide switch is an electromechanical device that controls the current flow in a circuit path.The series of devices are driven by sliding mechanical switches. The slide switch uses a slider that moves from the open (off) position to the closed (on) position.These characteristics include contact timing,circuit, switching function,voltage rating (AC or DC),current rating,and actuator type.

Application of Slide Switches

Sliding switches are most suitable for controlling current in small projects. Slide switches come in many terminal types, including leads, quick-connect ,feeders, screw terminals,welded terminals, or blade terminals, surface mount technology, and panel mount switches.

Material and Finish Spec:

Knob: PA

Contact Clip: Ag Plated Copper

Spring Plate: Copper Natural Finish

Frame: CRS Zinc Plating

Terminal:Ag plated Brass

Terminal Base: Phenol Resin Color Yellow

Product Specifications

Our Advantages

1.Design,prototype & automation basis in South China’s manufacture center--Dongguan .

2.Manufacture Center in Sichuan Province and located Yangzi River wharf and Chongqing Airport .

3.10+ production lines, 100+ experienced managers and workers.

4.10+ dedicated and experienced engineers/ designers in R&D department.

5.Help customers quickly transfer their design ideas into mass production, complete prototype design, development and verification.
