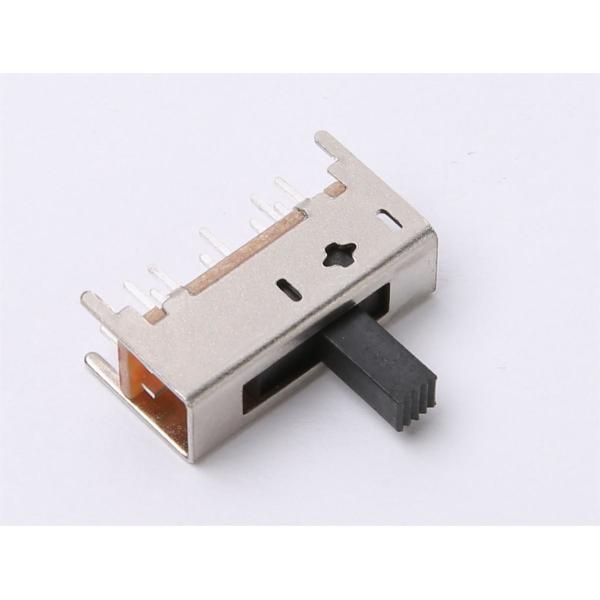

SS25D01 SPDT Slide Switch 2 Pole 5 Position DIP PCB Soldering Type
SS25D01 SPDT Slide Switch 2 Pole 5 Position DIP PCB Soldering Type
Specifications
Brand Name :
SANNI
Model Number :
SS25D01
Place of Origin :
China
MOQ :
2000pcs
Price :
USD0.1~USD0.15 per pc
Payment Terms :
T/T
Supply Ability :
100000pcs per Month
Delivery Time :
25 working days
Packaging Details :
2000pcs per Carton box,
Curcuit :
SPDT
Terminal Material :
Brass with silver plating
Terminal Finish :
Gold plating or Silver plating
Housing Material :
SPCC
Travel life :
10000 cycles @100MΩ max
Position :
2Pole 5 Positions
Description

SS25D01 SPDT Slide Switch 2Pole 5 Position DIP PCB Soldering Type

Product Description

SS Series Mini slide switch for DC application,SMD or through hole terminals1P3T, 1P3T, 2P2T & 2P3T,2P4T,2P5T functions.

Features:

Mini Type

PCB DIP Soldering

Smooth Sliding

Clear Click Sound

RoHS Complaint Directive

How to order:

SS25D01 SPDT Slide Switch 2 Pole 5 Position DIP PCB Soldering Type

What is Slide Switch

A slide switch is an electromechanical device used to control the current flow in a circuit path.The series of devices are driven by sliding mechanical switches. The slide switch uses a slider that moves (slides) from the open (off) position to the closed (on) position.These characteristics include circuit, contact timing,switching function,voltage rating (AC or DC),current rating, and actuator type.

Application of Slide Switch

Sliding switches are most suitable for controlling current in small projects. Slide switches come in many terminal types, including leads, feeders, quick-connect ,welded terminals, screw terminals, or blade terminals, surface mount technology, and panel mount switches.

SS25D01 SPDT Slide Switch 2 Pole 5 Position DIP PCB Soldering Type

Material and Finish Spec:

Knob: PA

Contact Clip: Ag Plating Copper

Spring Plate: Copper Natural

Terminal:Ag plating Brass

Terminal Base: Phenol Resin Yellow

Frame: CRS Zinc Plating

Characteristics:

1.Electrical Characteristics
Power Rate 0.3A 30VDC
Contact Resistance 100mΩ Max
Withstand Voltage AC500V for 1 Minute
Insulation resistance 100MΩ at 500V DC
2.Mechanical Characteristics
Operating Force 200±100gf
Switching Life Unloading 15-18 cycles per min10,000 cycles Min.

Our Advantages

1.Design,prototype & automation basis in China’s manufacture center --Dongguan .

2.Manufacture Center in Sichuan Province and located Yangzi River wharf and Chongqing Airport .

3.10+ dedicated and experienced engineers/ designers in R&D department.

4.10+ production lines, 100+ experienced managers and workers.

5.Help customers quickly transfer their design ideas into mass production, complete prototype design, development and verification.

SS25D01 SPDT Slide Switch 2 Pole 5 Position DIP PCB Soldering Type

SS25D01 SPDT Slide Switch 2 Pole 5 Position DIP PCB Soldering TypeSS25D01 SPDT Slide Switch 2 Pole 5 Position DIP PCB Soldering TypeSS25D01 SPDT Slide Switch 2 Pole 5 Position DIP PCB Soldering TypeSS25D01 SPDT Slide Switch 2 Pole 5 Position DIP PCB Soldering TypeSS25D01 SPDT Slide Switch 2 Pole 5 Position DIP PCB Soldering TypeSS25D01 SPDT Slide Switch 2 Pole 5 Position DIP PCB Soldering TypeSS25D01 SPDT Slide Switch 2 Pole 5 Position DIP PCB Soldering Type

SS25D01 SPDT Slide Switch 2 Pole 5 Position DIP PCB Soldering Type

SS25D01 SPDT Slide Switch 2 Pole 5 Position DIP PCB Soldering TypeSS25D01 SPDT Slide Switch 2 Pole 5 Position DIP PCB Soldering TypeSS25D01 SPDT Slide Switch 2 Pole 5 Position DIP PCB Soldering Type
