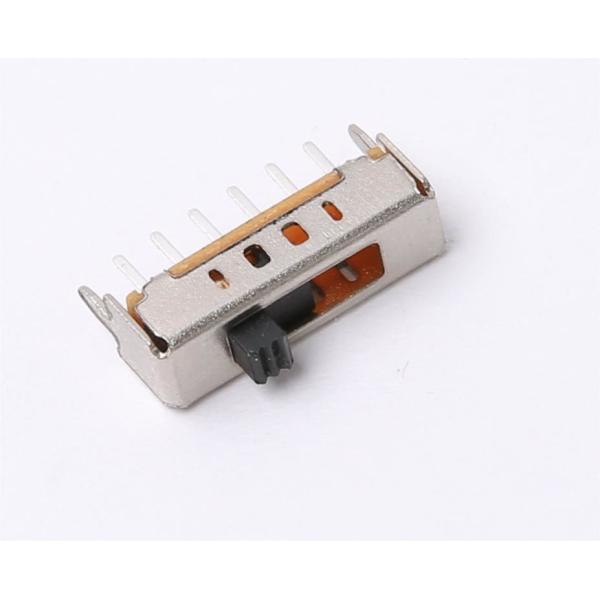

SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application
SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application
Specifications
Brand Name :
SANNI
Model Number :
SS14D01
Place of Origin :
China
MOQ :
2000pcs
Price :
USD0.1~USD0.15 per pc
Payment Terms :
T/T
Supply Ability :
100000pcs per Month
Delivery Time :
25 working days
Packaging Details :
2000pcs per Carton box,
Housing Material :
SPCC
Terminal Material :
Copper
Terminal Finish :
Silver plating
Travel life :
10000 cycles at 00MΩ max
Position :
1Pole 4 Position
Curcuit :
SPDT
Description

SS14D01 SPDT Slide Switch PCB DIP Soldering Type

Product Description

SS Series Mini slide switch for DC application,SMD or through hole terminals1P2T, ,1P3T,1P4T, 2P2T & 2P3T functions.

How to order:

SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application

Features:

RoHS Complaint

Mini Type

SMD Soldering

Smooth Slide

Clear Click Sound

Application of Slide Switch

Sliding switches are most suitable for controlling current in small projects. Slide switches come in many terminal types, including feeders, leads, welded terminals, screw terminals, quick-connect or blade terminals, surface mount technology, and panel mount switches.

SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application

Material and Finish Spec:

Spring Plate: Copper

Terminal:Brass with Ag plating

Terminal Base: Phenol Resin Yellow

Contact Clip: Copper with Ag Plating

Knob: PA

Frame: SPCC Zinc Plating

Characteristics:

1.Electrical Characteristics
Rating 30V DC 0.3A
Contact Resistance 100mΩ Max
Insulation resistance 100MΩ @ 500V DC
Withstand Voltage AC500V for 1 Minute
2.Mechanical Characteristics
Operating Force 200gt±100gf
Switching Life 10,000 cycles Min., Unloaded 15-18 cycles per min

SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application

SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC ApplicationSS14D01 SPDT Slide Switch 1 Pole 4 Position For DC ApplicationSS14D01 SPDT Slide Switch 1 Pole 4 Position For DC ApplicationSS14D01 SPDT Slide Switch 1 Pole 4 Position For DC ApplicationSS14D01 SPDT Slide Switch 1 Pole 4 Position For DC ApplicationSS14D01 SPDT Slide Switch 1 Pole 4 Position For DC ApplicationSS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application

SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application

SS14D01 SPDT Slide Switch 1 Pole 4 Position For DC ApplicationSS14D01 SPDT Slide Switch 1 Pole 4 Position For DC ApplicationSS14D01 SPDT Slide Switch 1 Pole 4 Position For DC Application
