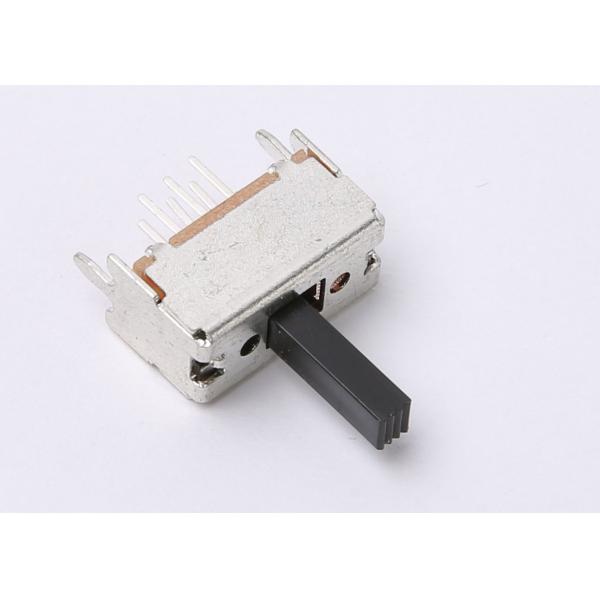

SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15
SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15
SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15
SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15
Specifications
Brand Name :
SANNI
Model Number :
SS12D27
Place of Origin :
China
MOQ :
2000pcs
Price :
USD0.1~USD0.15 per pc
Payment Terms :
T/T
Supply Ability :
100000pcs per Month
Delivery Time :
25 working days
Packaging Details :
2000pcs per Carton box,
Housing Material :
SPCC
Terminal Material :
Copper
Terminal Finish :
Gold plating,silver plating
Position :
1Pole 3 Position
Travel life :
10000 cycles @100MΩ max
Curcuit :
SPDT
Description

SS22D15 SPDT Slide Switch 2Pole 2 Position PCB DIP Soldering Type

Product Description

SS Series Mini slide switch for DC application,SMD or through hole terminals1P2T, 1P4T, 2P2T & 2P3T functions.

How to Order:

SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15

Features:

Mini Type

SMD Soldering

Smooth Slide

Clear Click Sound

Complaint with RoHS Directive

Material and Finish Spec:

Terminal:Brass with Ag plated

Terminal Base: Phenol Resin Yellow

Spring Plate: Copper natural

Contact Clip: Copper with Ag Plated

Knob: PA

Frame: SPCC Zinc Plated

What is Slide Switch

A slide switch is an electromechanical device used to control the flow of current in a circuit path. The slide switch use a slider that moves (slides) from the open (off) position to the closed (on) position.The series of devices are driven by sliding mechanical switches. These characteristics include circuit, contact timing, switching function, current rating, voltage rating (AC or DC), and actuator type.

Application of Slide Switch

Sliding switches are most suitable for controlling current in small projects. Slide switches come in many terminal types, including feeders, leads, welded terminals, screw terminals, quick-connect or blade terminals, surface mount technology, and panel mount switches.

SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15

Characteristics:

1.Electrical Characteristics
Rating 0.3A ,15V DC
Contact Resistance 100mΩ Max
Insulation resistance 100MΩ at 500V DC
Withstand Voltage 500V AC for 1 Minute
2.Mechanical Characteristics
Operating Force 200±100gf
Switching Life 10,000 cycles Min. Unloading 15-18 cycles per minute

Our Services

1. Can customize to meet all your need

2. Within 24 hours to reply your inquiries

3.Strong R&D team for technical support

4. Flexible lead time and can accept lower MOQ

SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15

SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15

SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15

SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15SPDT Ultra Miniature Slide Switch 2 Pole 2 Position SS22D15
