Specifications
Brand Name :
zmkj
Model Number :
YAG Ingots
Place of Origin :
China
MOQ :
10kg
Price :
by case
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500pcs
Delivery Time :
3-4weeks
Packaging Details :
single wafer case under 1000 cleaning room
material :
YAG Single crystal
size :
2inch
Thermal conductivity :
7.4 W·m-1·K-1
Spectral Range :
400~1100nm(but not 470~500nm)。
Product Name :
Yttrium Aluminum Garnet
Doping :
Er:YAG Ce:YAG Nd:YAG Yb:YAG
Description

10x10mmt Terbium gallium garnet (TGG)crystals substrate wafer for laser device

Product Type: Yttrium aluminum garnet (YAG) is an isotropic crystal with cubic symmetry. It has excellent optical and thermodynamic properties. Its mechanical properties and chemical stability are close to that of sapphire crystal, and there is no birefringence effect of sapphire. Pure YAG crystals have a high transmittance in the range of 0.25 ~ 5um and no absorption in the range of 2 ~ 3μm, while glass has a strong H2O absorption band. Therefore, undoped pure YAG crystals are a new type of substrate and window materials for ultraviolet and infrared optical devices. At the same time, the excellent physical and chemical properties and optical properties of YAG crystals make them important optical applications in high temperature and high energy physical environments.

The application of YAG material:

Undoped pure YAG crystal is a new type of substrate and window material for ultraviolet and infrared optical devices.

YAG crystals have important optical applications in high-temperature and high-energy physical environments.

The application of YAG material:

It has excellent optical and thermodynamic properties. Its mechanical properties and chemical stability are close to that of sapphire crystal, and there is no birefringence effect of sapphire. Pure YAG crystals have a high transmittance in the range of 0.25 ~ 5um and no absorption in the range of 2 ~ 3μm, while glass has a strong H2O absorption band.

The main performance parameters
Crystal structure Cubic
Lattice Constant 12.02 A
Melting point 1970 ℃
Mohs hardness 8.5
Density 4.55 + 0.04g/cm3
Specific heat 0.59J/g cm? -3 @0-20 ℃
Modulus of elasticity 310 GPa
Young's modulus 3.17x10 4 Kg/mm2
Poisson ratio 0.3
Tensile strength 0.13-0.26GPa
Thermal expansion coefficient

[111]: 7.8x10 -6 /℃ @0-250℃

[110] : 7.7x10 -6 / ℃ @0-250℃

[100]: 8.2x10 -6 / ℃ @0-250℃
Thermal conductivity

14W/m/K@20 ℃

10.5W/m/K@100 ℃
Calorescence coefficient Dn/dt = 7.3x10-6 /℃
Thermal shock 800W/m
Refractive index 1.8197@1064mm
Transmittance range 250-5000nm
(Without absorption in 2000 - 3000 nm)
Anti-optical-damage threshold ≥ 15Jcm -2 @1064nm
Standard Orientation <111> and <100>

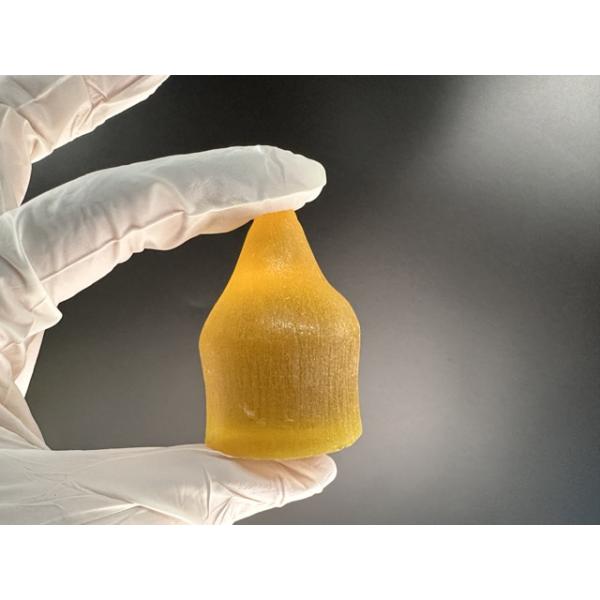

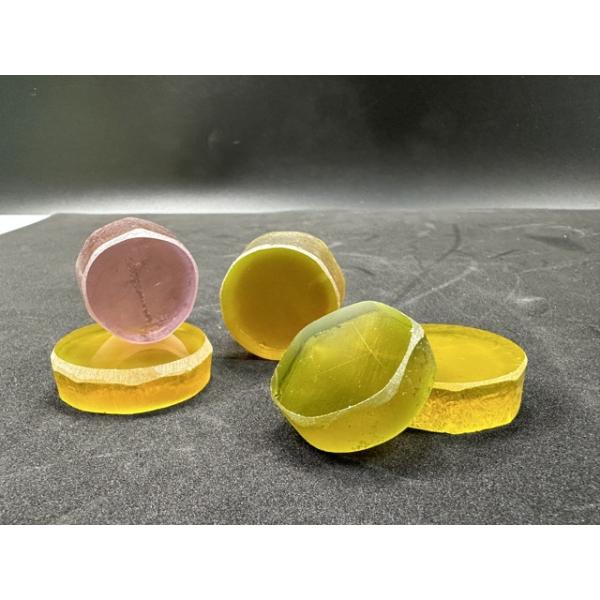

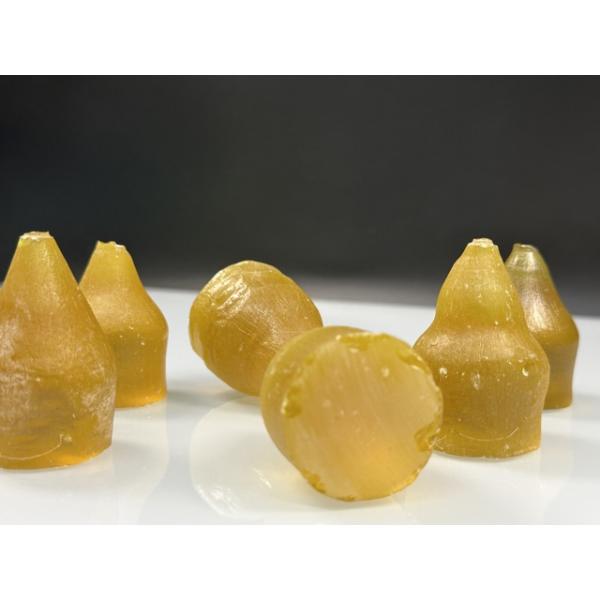

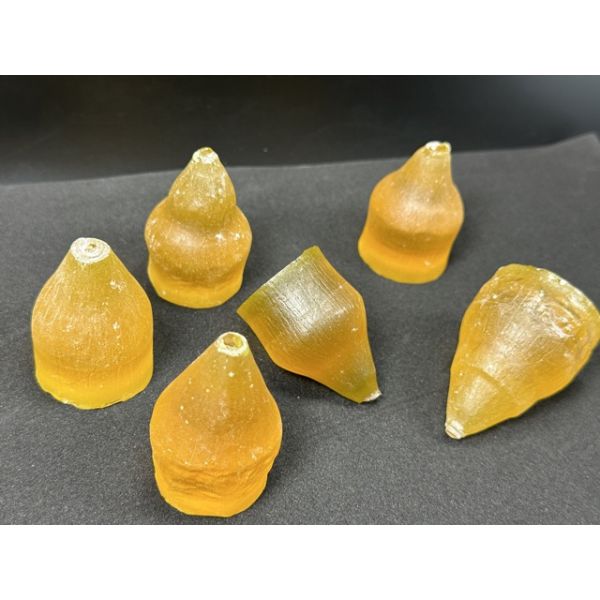

Some leftover YAG crystal anchorage

Yttrium Aluminum Garnet Wafer YAG Ingots Er:YAG Ce:YAG Nd:YAG Yb:YAGYttrium Aluminum Garnet Wafer YAG Ingots Er:YAG Ce:YAG Nd:YAG Yb:YAGYttrium Aluminum Garnet Wafer YAG Ingots Er:YAG Ce:YAG Nd:YAG Yb:YAGYttrium Aluminum Garnet Wafer YAG Ingots Er:YAG Ce:YAG Nd:YAG Yb:YAG

We also can offer Er:YAG, Ce:YAG, Nd:YAG, Yb:YAG, and others

Yttrium Aluminum Garnet Wafer YAG Ingots Er:YAG Ce:YAG Nd:YAG Yb:YAGYttrium Aluminum Garnet Wafer YAG Ingots Er:YAG Ce:YAG Nd:YAG Yb:YAGYttrium Aluminum Garnet Wafer YAG Ingots Er:YAG Ce:YAG Nd:YAG Yb:YAGYttrium Aluminum Garnet Wafer YAG Ingots Er:YAG Ce:YAG Nd:YAG Yb:YAG
