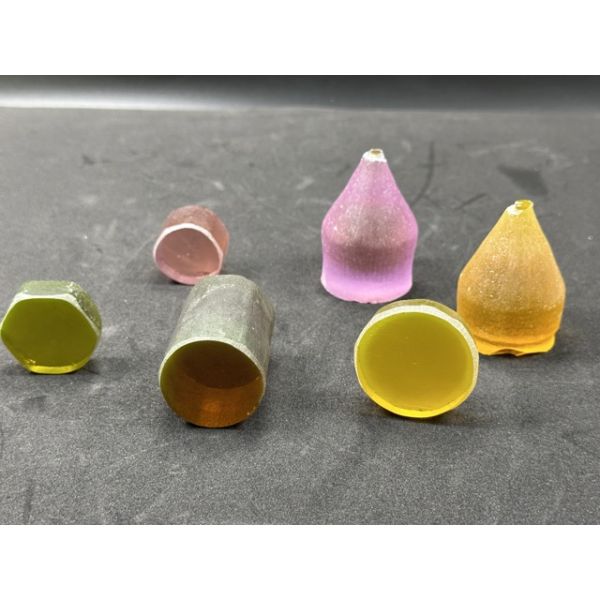

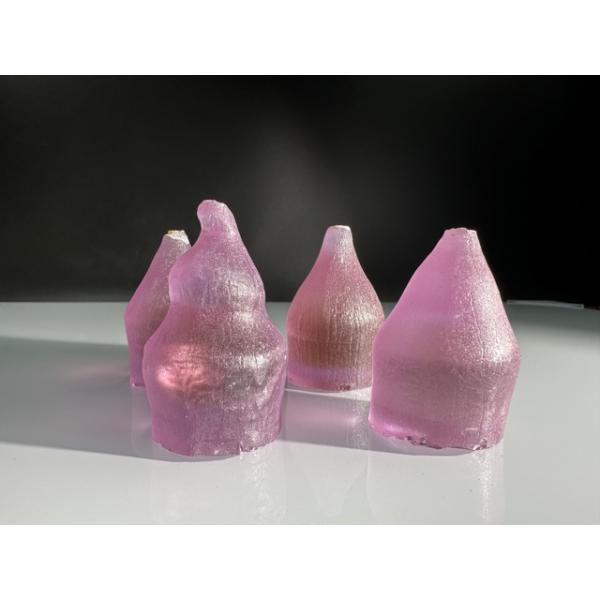

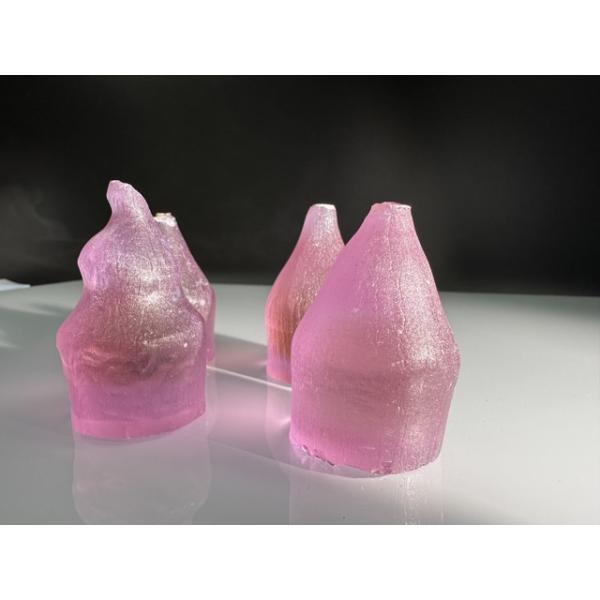

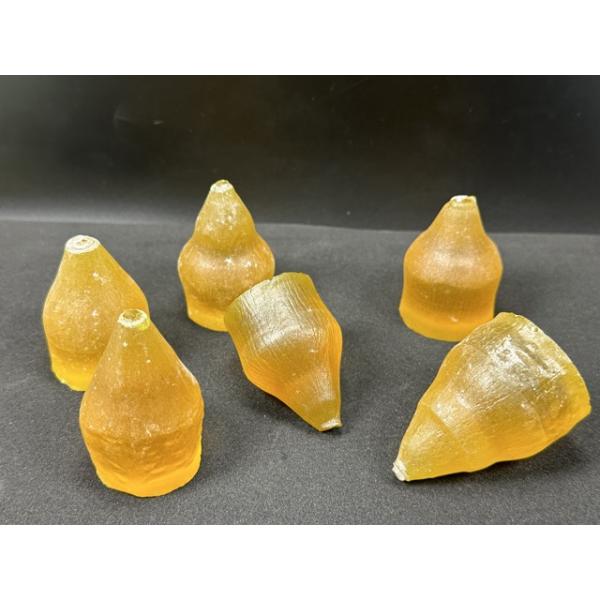

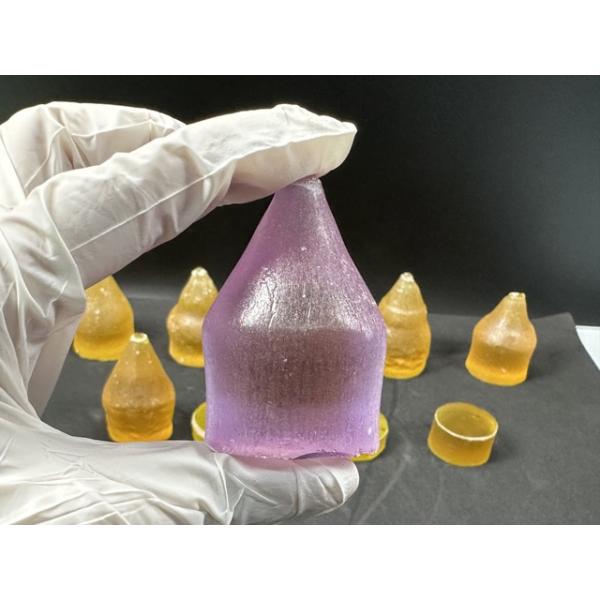

Nd,Ce:YAG Laser Crystal 1inch 2inch 10x10mmt YAG Plates Yttrium Aluminum Garnet Wafer

Product Type: Nd,Ce: YAG(neodymium-doped and cerium Yttrium aluminum garnet) laser rod is the ideal working material for repetition frequency air-cooled laser, widely used in small laser rangefinding machines and laser medical instruments, the Nd,Ce: YAG laser rod produced. Our product has reached the international level, it is suitable for a variety of working modes (pulse, Q switch, mode locking).

The application of Nd, Ce: YAG Material:

Undoped pure YAG crystal is a new type of substrate and window material for ultraviolet and infrared optical devices.

YAG crystals have important optical applications in high-temperature and high-energy physical environments.

The Normal parameters of Nd, Ce:YAG:

• Diameter: 3-12mm, length: 50-100mm
• Chemical formula: Nd,Ce: Y3Al5O12
• Crystal structure: Cubic
• Density: 4.56 g/cm³
• Melting point: 1960°C
• Refractive index: 1.82 at 1064nm
• Absorption coefficient: 0.1-0.5 cm-1 at 808nm
• Emission cross-section: 2.8x10-19 cm2 at 1064nm
• Decay time: 230μs
• Pump wavelength: 808nm
• Laser wavelength: 1064nm

The Applications of Nd, Ce:YAG:

Nd,Ce: YAG laser crystal is widely used in high-power solid-state lasers for industrial and medical applications, such as laser cutting, welding, marking, and medical surgery.

Advantages:

High efficiency: Nd,Ce: YAG laser crystal has high absorption and emission cross-sections, which lead to high lasing efficiency and low threshold.

Good thermal conductivity: Nd,Ce: YAG laser crystal has good thermal conductivity, which allows for high output powers and long pulse durations.

Broad absorption bandwidth: Nd,Ce: YAG laser crystal has a broad absorption bandwidth, which allows for efficient pumping with various laser diodes.

Related Products: Nd:YAG laser crystal, Er:YAG laser crystal, Yb:YAG laser crystal.
