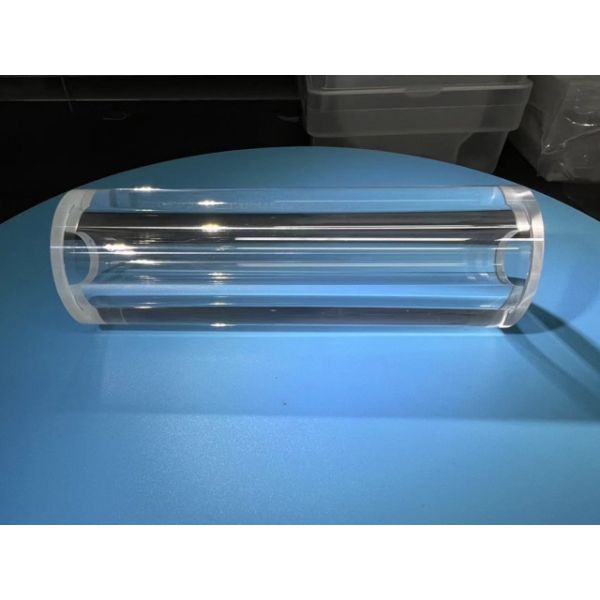

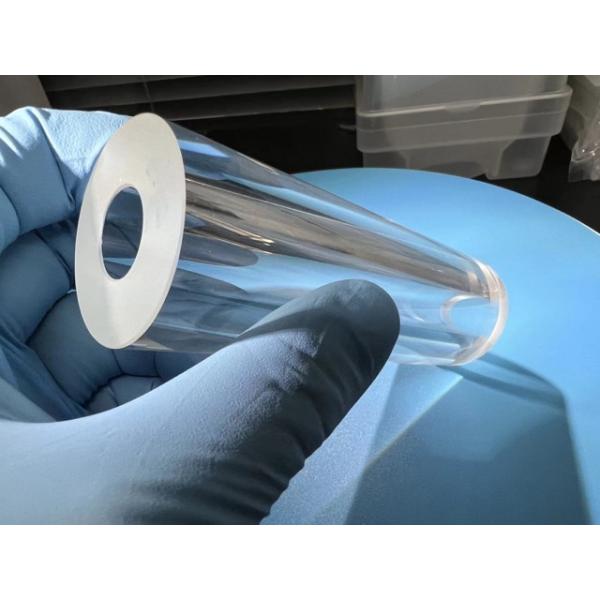

High Temperature Resistance Sapphire Tube 50.4mm Large Diameter KY Sapphire Rods
High Temperature Resistance Sapphire Tube 50.4mm Large Diameter KY Sapphire Rods
High Temperature Resistance Sapphire Tube 50.4mm Large Diameter KY Sapphire Rods
High Temperature Resistance Sapphire Tube 50.4mm Large Diameter KY Sapphire Rods
High Temperature Resistance Sapphire Tube 50.4mm Large Diameter KY Sapphire Rods
High Temperature Resistance Sapphire Tube 50.4mm Large Diameter KY Sapphire Rods
High Temperature Resistance Sapphire Tube 50.4mm Large Diameter KY Sapphire Rods
High Temperature Resistance Sapphire Tube 50.4mm Large Diameter KY Sapphire Rods
Specifications
Brand Name :
ZMSH
Model Number :
Sapphire tube
Certification :
ROHS
Place of Origin :
China
MOQ :
2pcs
Price :
by case
Payment Terms :
T/T, Western Union
Supply Ability :
3000pcs per month
Delivery Time :
2-4weeks
Packaging Details :
plastic bag
material :
Sapphire crystal
surface :
optical polished rough blank
hardness :
Mohs 9.0
Technology :
KY
Working temperature :
1950°C
Purity :
99.995%
Length :
1-300mm
Diemeter :
50.4mm 2inch
Description

Pressure Resistant Sapphire Glass Tube Al2O3 Sapphire Glass Tube Single Crystal Sapphire Glass Tube

Semiconductor Processing applications:

(HPD CVD, PECVD, Dry Etch, Wet Etch)

  • Plasma containment tubes

  • Plasma applicator tube

  • Process gas injector nozzles

  • Thermocouple protection sheath (Thermowell)

  • Water treatment/cleaning

  • Endpoint detector

  • Excimer Corona Tubes

Lamps and Lamp Envelopes applications:

  • Electronic Infra-Red countermeasures

  • Ultraviolet sterilization

  • Flashlamps

  • High-intensity lamps

Sapphire Tube Benefits

Sapphire tubes made of synthetic sapphire possess unique combination of excellent optical, physical and chemical properties.
One of the hardest minerials and ranks a 9 on the Mohs scale, sapphire is virtually scratch resistance. Sapphire has high melting temperature of 2030 °C. Its excellent thermal conductivity and heat resistance make it ideal for high temperature applications. Its exceptional chemical stability and corrosion resistance can withstands harsh environments such as fluorine plasma, acid and alkaline. In addition, sapphire offers excellent transmission bandwidths between the UV and IR at 0.15-5.5µm.
The edge-defined-film fed method ( EFG method ) provides the ability to produce various shapes of sapphire tubes with minimal or no grinding.
All this unique properties offer a cost-effective solution for the applications where hardness, scratch proof, corrosion resistance, heat resistant as well as optical properties of sapphire tubes are required.

SAPPHIRE TUBE DETAILS:

High Temperature Resistance Sapphire Tube 50.4mm Large Diameter KY Sapphire RodsHigh Temperature Resistance Sapphire Tube 50.4mm Large Diameter KY Sapphire RodsHigh Temperature Resistance Sapphire Tube 50.4mm Large Diameter KY Sapphire RodsHigh Temperature Resistance Sapphire Tube 50.4mm Large Diameter KY Sapphire Rods

Recommend Products:

2inch GSGG 2inch YAG 2inch MgO

High Temperature Resistance Sapphire Tube 50.4mm Large Diameter KY Sapphire RodsHigh Temperature Resistance Sapphire Tube 50.4mm Large Diameter KY Sapphire RodsHigh Temperature Resistance Sapphire Tube 50.4mm Large Diameter KY Sapphire Rods

FAQ
Q: How to pay?
A: T/T, Paypal, Secure payment and Assurance payment.

Q: What's your MOQ?
A: (1) For inventory, the MOQ is 1pcs.
(2) For customized products, the MOQ is 3pcs up.

Q: What's the delivery time?
A: (1) For the standard products
For inventory: the delivery is 5 workdays after you place the order.
For customized products: the delivery is 2 -4 weeks after you order contact.
