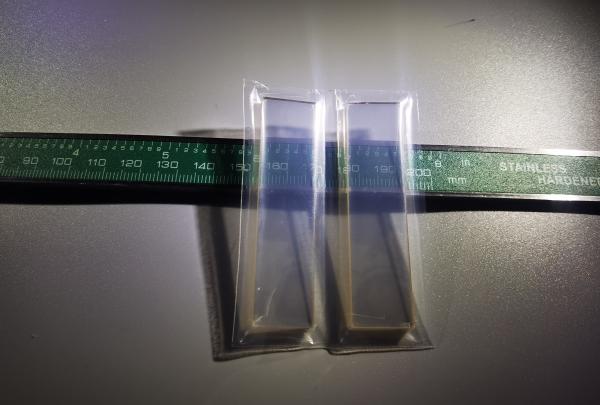

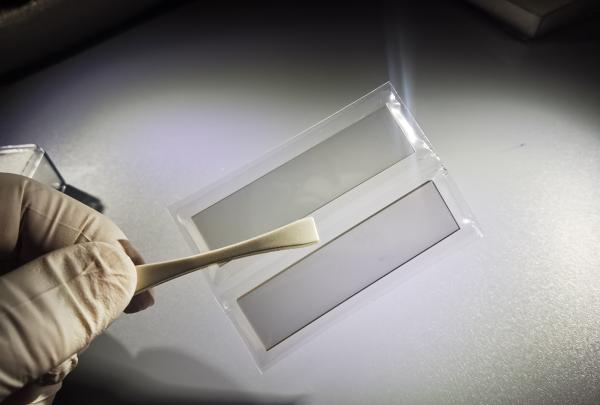

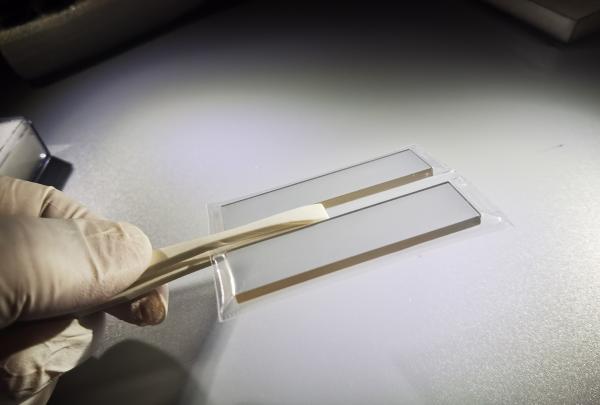

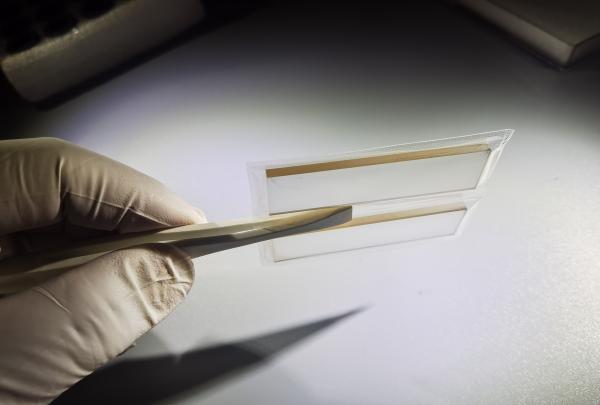

Customized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mm
Customized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mm
Customized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mm
Customized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mm
Customized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mm
Customized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mm
Customized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mm
Customized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mm
Customized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mm
Customized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mm
Specifications
Brand Name :
ZMKJ
Model Number :
60x10x0.5mmt
Place of Origin :
CHINA
MOQ :
1pcs
Price :
by case
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1-50pcs/month
Delivery Time :
2-4weeks
Packaging Details :
single wafer package in 100-grade cleaning room
Material :
SiC single crystal 4H-N type
Grade :
Dummy /Production grade
Thicnkss :
0.5MM
Suraface :
polished
Application :
bearing test
Diameter :
60x10x0.5mmt
color :
Tee green
Description


Customzied size/60x10x0.5mmt/2inch/3inch/4inch/6inch 6H-N/4H-SEMI/ 4H-N SIC ingots/High purity 4H-N 4inch 6inch dia 150mm silicon carbide single crystal (sic) substrates wafersS/ Customzied as-cut sic wafers SiC windows/lens/glasses

About Silicon Carbide (SiC)Crystal

Silicon carbide (SiC), also known as carborundum, is a semiconductor containing silicon and carbon with chemical formula SiC. SiC is used in semiconductor electronics devices that operate at high temperatures or high voltages, or both.SiC is also one of the important LED components, it is a popular substrate for growing GaN devices, and it also serves as a heat spreader in high-power LEDs.

1. Description
Property4H-SiC, Single Crystal6H-SiC, Single Crystal
Lattice Parametersa=3.076 Å c=10.053 Åa=3.073 Å c=15.117 Å
Stacking SequenceABCBABCACB
Mohs Hardness≈9.2≈9.2
Density3.21 g/cm33.21 g/cm3
Therm. Expansion Coefficient4-5×10-6/K4-5×10-6/K
Refraction Index @750nm

no = 2.61
ne = 2.66

no = 2.60
ne = 2.65

Dielectric Constantc~9.66c~9.66
Thermal Conductivity (N-type, 0.02 ohm.cm)

a~4.2 W/cm·K@298K
c~3.7 W/cm·K@298K
Thermal Conductivity (Semi-insulating)

a~4.9 W/cm·K@298K
c~3.9 W/cm·K@298K

a~4.6 W/cm·K@298K
c~3.2 W/cm·K@298K

Band-gap3.23 eV3.02 eV
Break-Down Electrical Field3-5×106V/cm3-5×106V/cm
Saturation Drift Velocity2.0×105m/s2.0×105m/s

Customized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mm

High purity 4inch diameter Silicon Carbide (SiC) Substrate Specification
Customized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mmCustomized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mm
Customized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mm

CATALOGUE COMMON SIZE

4H-N Type / High Purity SiC wafer/ingots
2 inch 4H N-Type SiC wafer/ingots
3 inch 4H N-Type SiC wafer
4 inch 4H N-Type SiC wafer/ingots
6 inch 4H N-Type SiC wafer/ingots


4H Semi-insulating / High Purity SiC wafer

2 inch 4H Semi-insulating SiC wafer
3 inch 4H Semi-insulating SiC wafer
4 inch 4H Semi-insulating SiC wafer
6 inch 4H Semi-insulating SiC wafer
6H N-Type SiC wafer
2 inch 6H N-Type SiC wafer/ingot
Customzied size for 2-6inch

About ZMKJ Company

ZMKJ can provides high quality single crystal SiC wafer ( Silicon Carbide ) to electronic and optoelectronic industry . SiC wafer is a next generation semiconductor material , with unique electrical properties and excellent thermal properties , compared to silicon wafer and GaAs wafer , SiC wafer is more suitable for high temperature and high power device application . SiC wafer can be supplied in diameter 2-6 inch , both 4H and 6H SiC , N-type , Nitrogen doped , and semi-insulating type available . Please contact us for more product information .


Our Relation Products
Sapphire wafer＆ lens/ LiTaO3 Crystal/ SiC wafers/ LaAlO3 / SrTiO3/wafers/ Ruby Ball

Customized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mmCustomized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mmCustomized SIC Silicon Carbide Wafer Single Crystal Window Piece 60 X 10 X 0.5mm
