Description of GaP Wafer:

In semiconductors, gallium phosphide is a type III-V compound semiconductor that has a wide indirect band gallium phosphide (gap) Wafersgap. The crystal structure of this compound is the same as silicon. Its lattice constant is 0.545 nm and its electron and hole mobility are approximately 100 and 75 cm2/V-s, respectively. This material is odorless and insoluble in water. It has been used in the fabrication of many electronic devices, including CMOS and RF/V/A switches.

The main substrate material for LEDs is gallium phosphide, and it is transparent to red, yellow, and orange light. This characteristic makes gallium phosphide a superior choice for LEDs. These diodes are transparent to most light, so their use in electronic components depends on how brightly they emit light. However, there is a problem associated with this material. Although it is highly conductive, it does not emit enough light to be useful as a source of illumination.

1. Bandgap: GaP has a direct bandgap of approximately 2.26 eV at room temperature. This bandgap energy level makes GaP suitable for optoelectronic applications, including LEDs and photodetectors.
2. Optical Properties: GaP wafers exhibit excellent optical properties, such as high transparency in the visible spectrum. This transparency is advantageous for optoelectronic devices operating in the visible light range.
3. Electrical Properties: GaP has good electrical properties, including high electron mobility and low dark current, making it suitable for high-speed electronic devices and low-noise optoelectronic devices.
4. Thermal Properties: GaP wafers have relatively good thermal conductivity, aiding in heat dissipation from electronic devices. This property is important for maintaining device performance and reliability.
5. Crystal Structure: GaP has a zincblende crystal structure, which influences its electronic and optical properties. The crystal structure also affects the growth and fabrication processes of GaP-based devices.
6. Doping: GaP wafers can be doped with various impurities to modify their electrical conductivity and optical properties. This dopant control is essential for tailoring GaP devices for specific applications.
7. Compatibility with III-V Compounds: GaP is compatible with other III-V compound semiconductors, allowing for the growth of heterostructures and the integration of different materials to create advanced devices.

The Form of GaP Wafer:

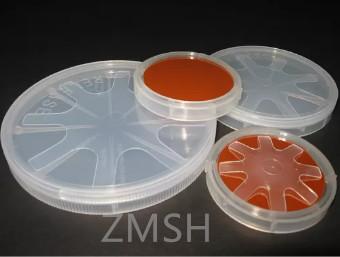

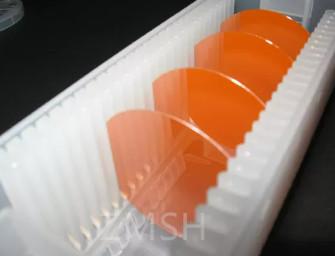

The Physical Photo of GaP Wafer:

1. Light-Emitting Diodes (LEDs):
GaP wafers are commonly used in the fabrication of LEDs for various lighting applications, including indicator lights, displays, and automotive lighting.
2. Laser Diodes:
GaP wafers are utilized in the production of laser diodes for applications such as optical data storage, telecommunications, and medical devices.
3. Photodetectors:
GaP wafers are employed in photodetectors for light sensing applications, including optical communications, imaging systems, and environmental monitoring.
4. Solar Cells:
GaP wafers are used in the development of high-efficiency solar cells, particularly in multijunction solar cell structures for space applications and terrestrial concentrator photovoltaics.
5. Optoelectronic Devices:
GaP wafers are integral to various optoelectronic devices, such as photonic integrated circuits, optical sensors, and optoelectronic modulators.
6. High-Speed Electronics:
GaP wafers are utilized in high-speed electronic devices, including high-frequency transistors, microwave integrated circuits, and RF power amplifiers.
7. Semiconductor Lasers:
GaP wafers are employed in the fabrication of semiconductor lasers used in applications such as optical communications, barcode scanners, and medical equipment.
8. Photonics:
GaP wafers play a crucial role in photonics applications, including waveguides, optical switches, and photonic crystals for manipulating light at the nanoscale.
9. Sensor Technology:
GaP wafers are used in the development of sensors for various applications, such as gas sensing, environmental monitoring, and biomedical diagnostics.
10.Heterojunction Devices:
GaP wafers are integrated with other III-V compound semiconductors to create heterojunction devices, enabling advanced functionalities in electronic and optoelectronic systems.

Application Pictures of GaP Wafer:

FAQ:

1. Q:What is gallium phosphide used for?
A: Gallium phosphide has been used in the manufacture of low-cost red, orange, and green light-emitting diodes (LEDs) with low to medium brightness since the 1960s. It is used standalone or together with gallium arsenide
