Fluorine Tin Oxide Glass FTO Coated Glass Substrate FTO Glass1'' x1'' 1'' x3'' Transmittance 80~85%
Fluorine Tin Oxide Glass FTO Coated Glass Substrate FTO Glass1'' x1'' 1'' x3'' Transmittance 80~85%
Fluorine Tin Oxide Glass FTO Coated Glass Substrate FTO Glass1'' x1'' 1'' x3'' Transmittance 80~85%
Fluorine Tin Oxide Glass FTO Coated Glass Substrate FTO Glass1'' x1'' 1'' x3'' Transmittance 80~85%
Fluorine Tin Oxide Glass FTO Coated Glass Substrate FTO Glass1'' x1'' 1'' x3'' Transmittance 80~85%
Fluorine Tin Oxide Glass FTO Coated Glass Substrate FTO Glass1'' x1'' 1'' x3'' Transmittance 80~85%
Fluorine Tin Oxide Glass FTO Coated Glass Substrate FTO Glass1'' x1'' 1'' x3'' Transmittance 80~85%
Fluorine Tin Oxide Glass FTO Coated Glass Substrate FTO Glass1'' x1'' 1'' x3'' Transmittance 80~85%
Fluorine Tin Oxide Glass FTO Coated Glass Substrate FTO Glass1'' x1'' 1'' x3'' Transmittance 80~85%
Fluorine Tin Oxide Glass FTO Coated Glass Substrate FTO Glass1'' x1'' 1'' x3'' Transmittance 80~85%
Specifications
Brand Name :
ZMSH
Model Number :
FTO Glass
Place of Origin :
China
MOQ :
25
Payment Terms :
T/T
Delivery Time :
2-4weeks
Product Name: :
Fluorine Tin Oxide glass, FTO coated glass substrate
Other Names: :
Fluorine Tin Oxide glass, FTO conductive glass substrate, Fluorine Tin Oxide coated glass substrate, FTO thin film coated glass, FTO glass slide
Standard Size :
1"x1"(or 25x25mm), 1"x3"(or 25x75mm) , 100x100mm, 300x300mm (Or specific size, according to requirements)
Standard Thickness: :
1.1 mm or 2.2mm or 1.6mm
Resistance : :
6-8 ohm/sq, 7-10 ohm/sq, 10-15 ohm/sq, 58-72 ohm/sq
Transmittance: :
80~85%;
Haze: :
80~85%;
Application: :
FTO glass is widely used in new technologies such as solar cells, biological experiments, electrochemical experiments (for electrodes), and universities and colleges;
Description

Fluorine Tin Oxide glass FTO coated glass substrate FTO glass1"x1" 1"x3" Transmittance 80~85%

Fluorine Tin Oxide glass‘s abstract

Fluorine Tin Oxide (FTO) glass is a conductive glass substrate coated with a thin layer of fluorine-doped tin oxide, offering excellent electrical conductivity and optical properties. It is commonly used in solar cells, electrochemical experiments, and biological applications. Available in various sizes (1"x1", 1"x3", 100x100mm, 300x300mm) and thicknesses (1.1mm, 2.2mm, 1.6mm), it features a resistance range of 6-72 ohm/sq, high transmittance (80-85%), and low haze (≦5%). With a temperature resistance of up to 550℃, FTO glass is ideal for advanced research and development in universities and laboratories.

Fluorine Tin Oxide glass‘s data sheet

Product Name: Fluorine Tin Oxide glass, FTO coated glass substrate
Other Names: Fluorine Tin Oxide glass, FTO conductive glass substrate, Fluorine Tin Oxide coated glass substrate, FTO thin film coated glass, FTO glass slide
Standard Size
(Length x Width):		 1"x1"(or 25x25mm), 1"x3"(or 25x75mm) , 100x100mm, 300x300mm
(Or specific size, according to requirements)
Standard Thickness: 1.1 mm or 2.2mm or 1.6mm
Resistance : 6-8 ohm/sq, 7-10 ohm/sq, 10-15 ohm/sq, 58-72 ohm/sq
Transmittance: 80~85%;
Haze: ≦5%
Resistant temperature: ≦450℃, ≦550℃
Application: FTO glass is widely used in new technologies such as solar cells, biological experiments, electrochemical experiments (for electrodes), and universities and colleges;

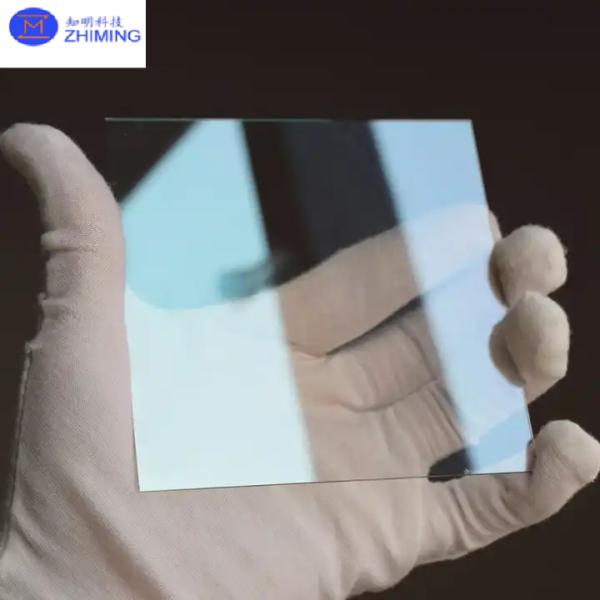

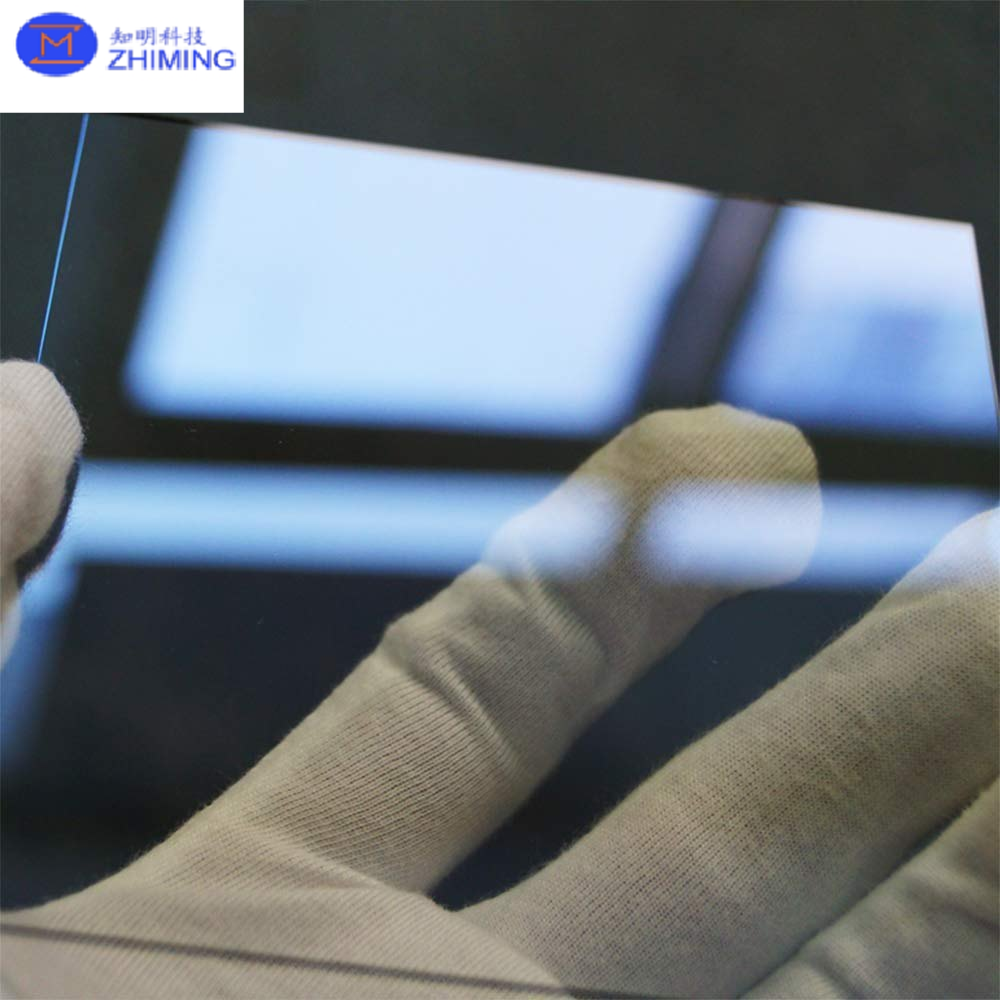

Fluorine Tin Oxide glass‘s pictuere

Fluorine Tin Oxide Glass FTO Coated Glass Substrate FTO Glass1'' x1'' 1'' x3'' Transmittance 80~85%Fluorine Tin Oxide Glass FTO Coated Glass Substrate FTO Glass1'' x1'' 1'' x3'' Transmittance 80~85%

Fluorine Tin Oxide glass‘s application

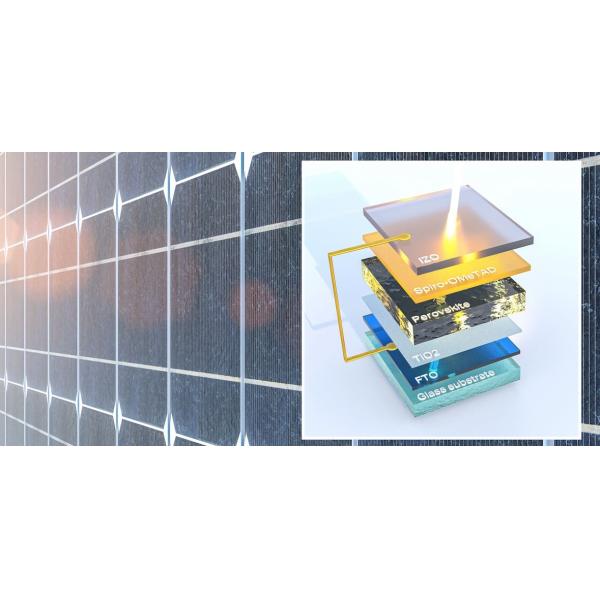

Solar Cells:

Fluorine Tin Oxide Glass FTO Coated Glass Substrate FTO Glass1'' x1'' 1'' x3'' Transmittance 80~85%

FTO glass serves as a transparent conductive substrate in solar cells. It allows light to pass through while providing excellent conductivity, helping to improve the efficiency of solar cells.

Electrochemical Experiments:

Fluorine Tin Oxide Glass FTO Coated Glass Substrate FTO Glass1'' x1'' 1'' x3'' Transmittance 80~85%

FTO glass is widely used in electrochemical experiments as an electrode material, especially in studying electrochemical reactions, corrosion testing, and sensor development.

Biological Experiments:

Fluorine Tin Oxide Glass FTO Coated Glass Substrate FTO Glass1'' x1'' 1'' x3'' Transmittance 80~85%

FTO glass is increasingly employed in biological research because of its unique combination of electrical conductivity, optical transparency, and chemical stability. It provides an ideal surface for cell culture, allowing researchers to monitor cellular behavior under controlled conditions. Additionally, FTO glass is used in surface sensors for detecting biological signals, such as changes in pH or ion concentration, which are critical in diagnostics. Its conductive properties make it suitable for electrodes in electrochemical devices, enabling precise biological detection, analysis, and real-time monitoring of biochemical reactions, thus advancing applications in biosensing, tissue engineering, and bioelectronic interfaces.

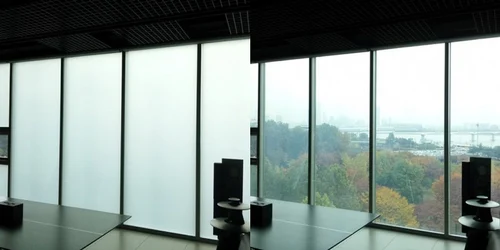

Smart Windows:

Fluorine Tin Oxide Glass FTO Coated Glass Substrate FTO Glass1'' x1'' 1'' x3'' Transmittance 80~85%

FTO glass can be used in smart windows as a conductive film, adjusting the transparency and heat conductivity of windows in certain applications.

Q&A

Q: What are the main properties of FTO glass?

A:

  • High Optical Transparency: It allows light to pass through, which is essential for applications like photovoltaic devices and touchscreens.
  • Low Electrical Resistivity: The fluorine doping significantly reduces the resistivity of tin oxide, ensuring efficient charge transport.
  • Chemical Stability: FTO glass is resistant to corrosion and oxidation, maintaining its performance even in harsh environments.
  • Thermal Durability: It can withstand high temperatures, which is important in industrial applications like solar cell manufacturing.
