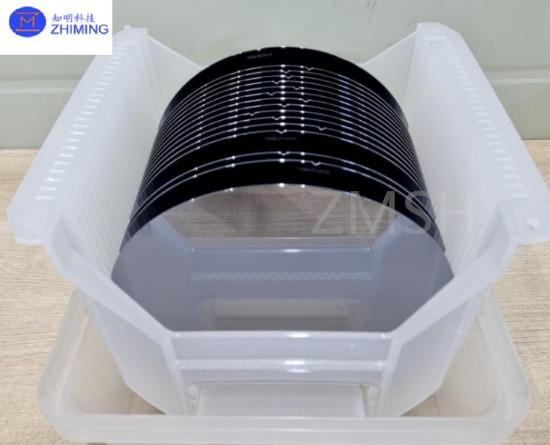

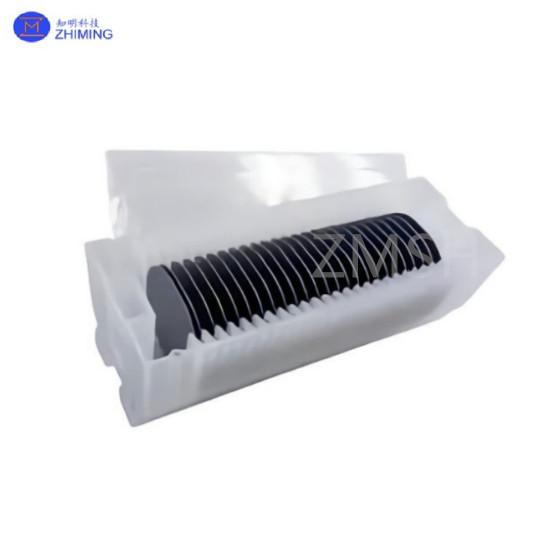

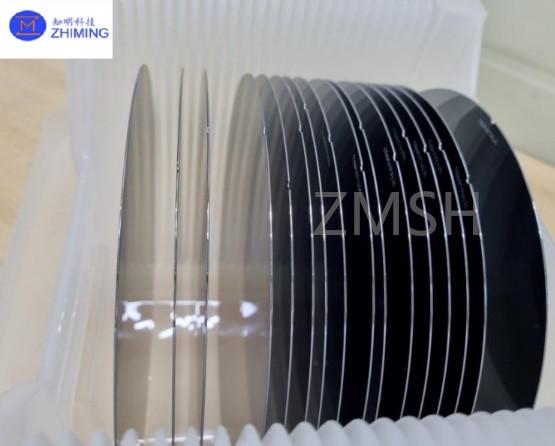

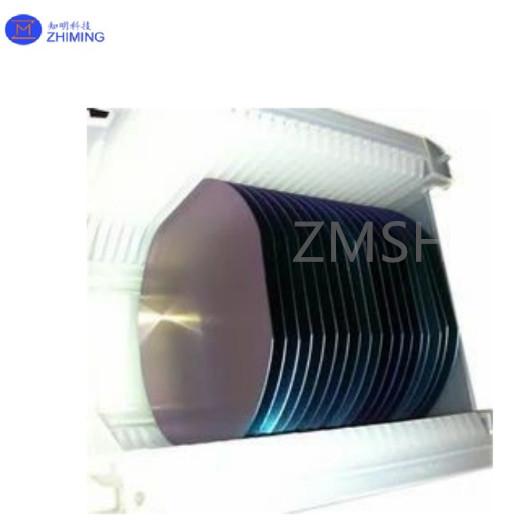

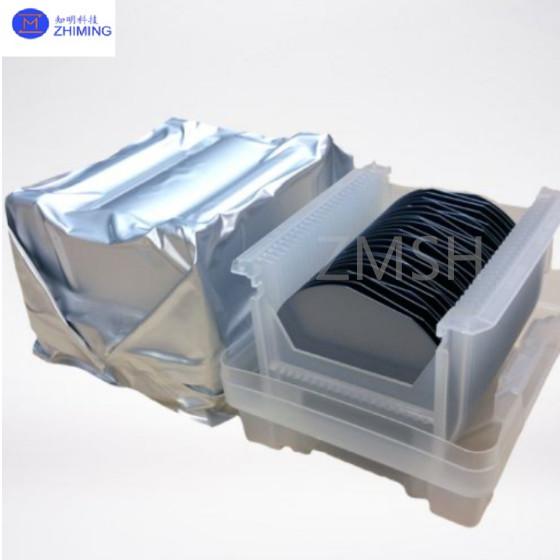

SOI wafer P Type N Type 6 inch 8 inch 12 inch Surface polish SSP/DSP

Abstract of SOI wafer

Silicon on Insulator (SOI) is an advanced semiconductor technology where a thin insulating layer, typically silicon dioxide (SiO₂), is inserted between the silicon substrate and the active silicon layer. This structure significantly reduces parasitic capacitance, improves switching speed, lowers power consumption, and enhances radiation resistance compared to traditional bulk silicon technology.

SOI stands for silicon-on-insulator, or Silicon On a substrate, which introduces a layer of buried oxide between the top layer of silicon and the underlying substrate.

SOI specification

Structure of SOI

SOI wafers typically consist of three main layers:

1.Top Silicon Layer (Device Layer): The thin silicon layer where semiconductor devices are fabricated. The thickness varies from a few nanometers to tens of micrometers depending on the application.

2.Buried Oxide (BOX) Layer: A thin layer of silicon dioxide (SiO₂) that provides electrical insulation. It ranges in thickness from tens of nanometers to a few micrometers.

3.Handle Wafer (Substrate): A mechanical support layer, usually made of bulk silicon or other high-performance materials.

The thickness of both the top silicon and buried oxide layers can be customized to optimize performance for specific applications.

SOI Manufacturing Processes

SOI wafers are produced using three primary methods:

1.SIMOX (Separation by IMplanted OXygen)

Involves implanting oxygen ions into a silicon wafer and oxidizing them at high temperatures to form a buried oxide layer.

Produces high-quality SOI wafers but is relatively expensive.

2.Smart Cut™ (Developed by Soitec, France)

Uses hydrogen ion implantation and wafer bonding to create SOI structures.

The most widely used method in commercial SOI production.

3.Wafer Bonding & Etch-Back

Involves bonding two silicon wafers and selectively etching one to the desired thickness.

Used for thick SOI and specialized applications.

Applications of SOI

Due to its unique performance benefits, SOI technology is widely adopted in various industries:

1.High-Performance Computing (HPC)

Companies like IBM and AMD use SOI in high-end server CPUs to boost processing speeds and reduce power consumption.

SOI is widely used in supercomputers and AI processors.

2.Mobile & Low-Power Devices

FD-SOI technology is used in smartphones, wearables, and IoT devices to balance performance and power efficiency.

Chipmakers like STMicroelectronics and GlobalFoundries produce FD-SOI chips for low-power applications.

3.RF & Wireless Communication (RF SOI)

RF SOI is widely adopted in 5G, Wi-Fi 6E, and millimeter-wave communication.

Used in RF switches, low-noise amplifiers (LNA), and RF front-end modules (RF FEM).

4.Automotive Electronics

Power SOI is extensively used in electric vehicles (EVs) and advanced driver assistance systems (ADAS).

It enables high-temperature and high-voltage operation, ensuring reliability in harsh conditions.

5.Silicon Photonics & Optical Applications

SOI substrates are used in silicon photonics chips for high-speed optical communication.

Applications include data centers, high-speed optical interconnects, and LiDAR (Light Detection and Ranging).

Advantages of SOI wafer

1.Reduced parasitic capacitance and increased operating speed – Compared to bulk silicon materials, SOI devices achieve a speed improvement of 20-35%.

2.Lower power consumption – Due to reduced parasitic capacitance and minimized leakage current, SOI devices can lower power consumption by 35-70%.

3.Elimination of latch-up effects – SOI technology prevents latch-up, improving device reliability.

4.Suppression of substrate noise and reduced soft errors – SOI effectively mitigates pulse current interference from the substrate, decreasing the occurrence of soft errors.

5.Compatibility with existing silicon processes – SOI technology integrates well with conventional silicon fabrication, reducing processing steps by 13-20%.
