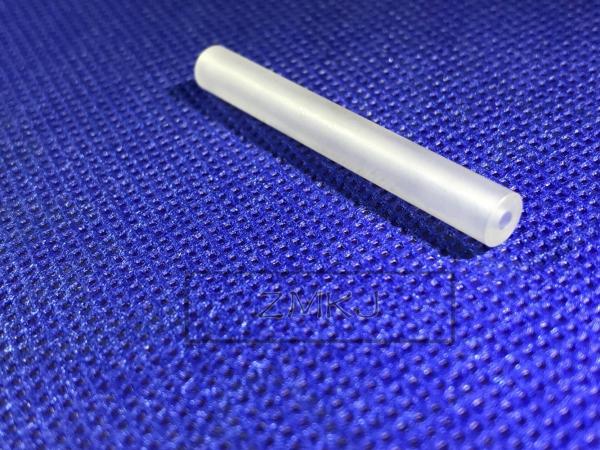

Polished Al2O3 Crystal Sapphire tube , Sapphire Cup Tube Pipe Industrial
Polished Al2O3 Crystal Sapphire tube , Sapphire Cup Tube Pipe Industrial
Polished Al2O3 Crystal Sapphire tube , Sapphire Cup Tube Pipe Industrial
Polished Al2O3 Crystal Sapphire tube , Sapphire Cup Tube Pipe Industrial
Polished Al2O3 Crystal Sapphire tube , Sapphire Cup Tube Pipe Industrial
Polished Al2O3 Crystal Sapphire tube , Sapphire Cup Tube Pipe Industrial
Polished Al2O3 Crystal Sapphire tube , Sapphire Cup Tube Pipe Industrial
Polished Al2O3 Crystal Sapphire tube , Sapphire Cup Tube Pipe Industrial
Specifications
Brand Name :
zmkj
Model Number :
sapphire tube
Place of Origin :
china
MOQ :
2pcs
Price :
by case
Payment Terms :
T/T, Western Union
Supply Ability :
3000pcs per month
Delivery Time :
2-4weeks
Packaging Details :
plastic bag
material :
sapphire crystal
surface :
polished or rough
orientation :
C-AXIS
Application :
tube/pipe
hardness :
9.0
Description

sapphire bearing parts with hole, Al2O3 single crystal glass ,sapphire optical glass ingots, sapphire optical rods,sapphire optical stick,Al2O3 single crystal glass lens,optical glass ingots by sapphire ,sapphire optical rods

What is sapphire?

Synthetic Sapphire is a single crystal form of corundum, Al2O3, also known as alpha-alumina, and single crystal Al2O3,have 9.0 hardness.

Sapphire is aluminium oxide in the purest form with no porosity or grain boundaries, making it theoretically dense.

The combination of favourable chemical, electrical, mechanical,optical, surface, thermal, and durability properties make sapphire a preferred material for high performance system and component designs. For various semiconductor applications,

sapphire is the best choice in comparison with other synthetic single-crystals.

Polished Al2O3 Crystal Sapphire tube , Sapphire Cup Tube Pipe Industrial

Product name industrial sapphire wafer
sapphire optical lens chemical formula AL2O3
Crystal structure Hexagonal
Hardness Mohs 9H
Compressvise strength Gpa 2.0
Density(20℃) 3.98g/cm
Fusion point 2040℃
Boiling point 2980℃
Coefficient of Thermal Expansion α=5.8×10 -6 /K
Specific heat 0.418W.s/g/k
Thermal conduction 25.12W/m/k(@100°C)
Optical transmission range 0.17-5.5μm
Transmission(0.3~5um) 85-88%
Refractive index no=1.768nd
ne=1.76nd
dn/dt 13×10-6/K(@633nm)
Permittivity 11.5(//c), 9.3(⊥c)

How about advantage of sapphire glass?

1-Thinner and Stronger than Standard Glass Windows


2-Transmits Wavelengths Ranging From UV to Mid-Infrared


3-Features Extreme Surface Hardness and Chemical Resistance
-------------------------------------------------------------------------------------------------------------------

What applications arethese products for ?

LED OPtical element applications mobile camera cover glass

mechanical parts watch and other consumer electronics military applications

Fingerprint recognition allication SOS substrates Artificial jewelry

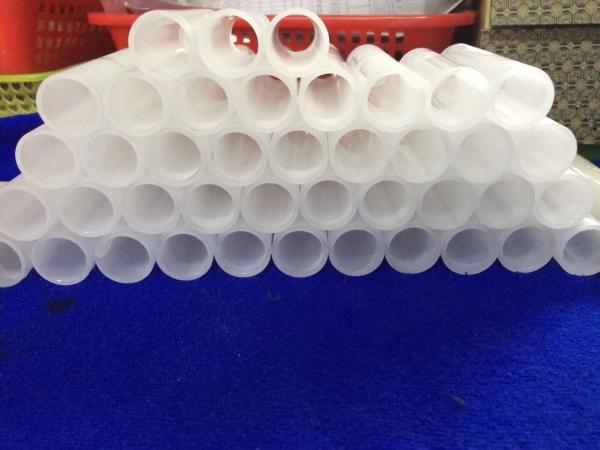

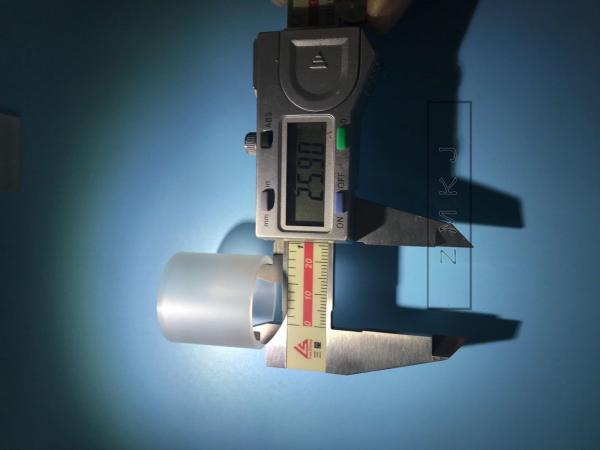

Sapphire parts products in detail

Polished Al2O3 Crystal Sapphire tube , Sapphire Cup Tube Pipe Industrial

Polished Al2O3 Crystal Sapphire tube , Sapphire Cup Tube Pipe IndustrialPolished Al2O3 Crystal Sapphire tube , Sapphire Cup Tube Pipe Industrial

Polished Al2O3 Crystal Sapphire tube , Sapphire Cup Tube Pipe Industrial

4.We also can supply professional customized service in time and provide

cooperation and support of new product development and technology appliance

in other semiconductor crystal material products

Polished Al2O3 Crystal Sapphire tube , Sapphire Cup Tube Pipe Industrial
