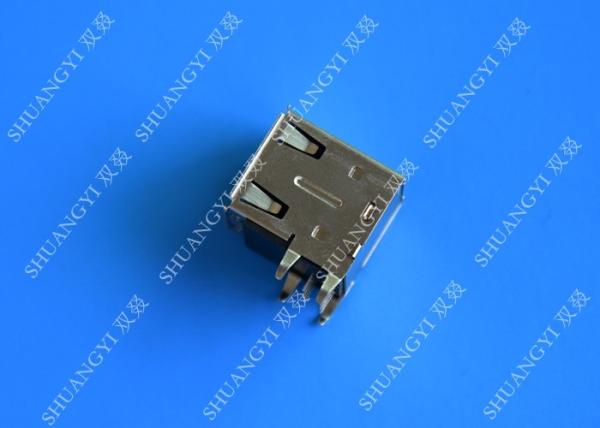

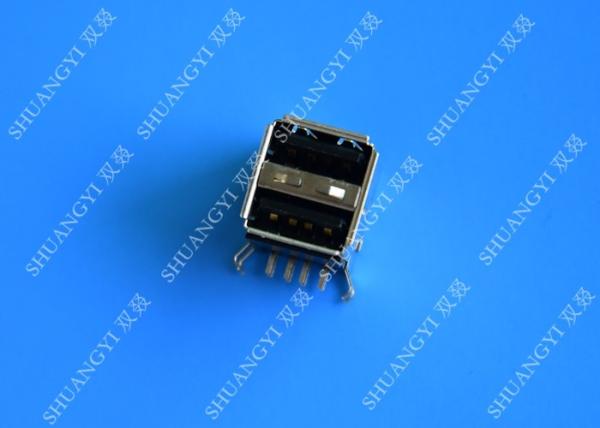

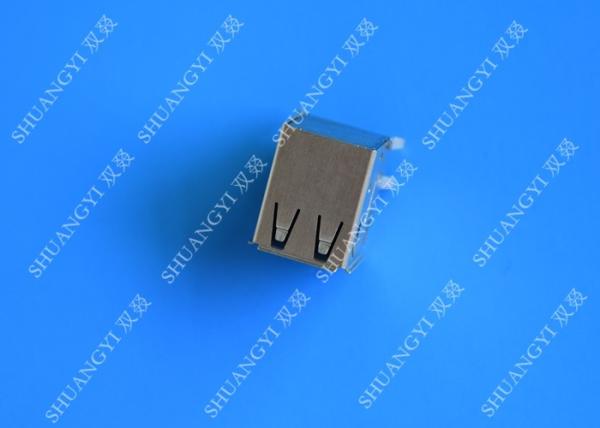

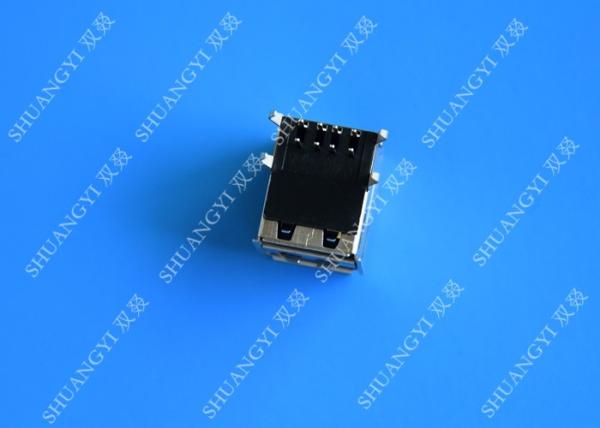

DIP Foot 4 Pin AF Type Double USB Charging Connector Female For PCB
DIP Foot 4 Pin AF Type Double USB Charging Connector Female For PCB
DIP Foot 4 Pin AF Type Double USB Charging Connector Female For PCB
DIP Foot 4 Pin AF Type Double USB Charging Connector Female For PCB
DIP Foot 4 Pin AF Type Double USB Charging Connector Female For PCB
DIP Foot 4 Pin AF Type Double USB Charging Connector Female For PCB
DIP Foot 4 Pin AF Type Double USB Charging Connector Female For PCB
DIP Foot 4 Pin AF Type Double USB Charging Connector Female For PCB
Specifications
Brand Name :
SHUANG YI
Model Number :
USB2.0/60
Certification :
ISO9001/SGS/UL/RoHS/Reach
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
100000 Piece/Pieces Per Month
Delivery Time :
7~10 Work Days
Packaging Details :
1.Reel packing 2.Custom box packing 3.According to client's request
Application :
PCB, PC System, Printer, Server
Contact Platin :
1'-50u'
Material :
ABS/PBT/PA66/LCP
Gender :
Female
Description

DIP Foot 4 Pin AF Type Double USB Charging Connector Female For PCB

Electrical:

1. Current Rating

1.5 Amps

2. Voltage Rating

125 Vac

3. Insulation Resistance

500 MΩmin

4. Contact Resistance

30 MΩmax

5. Withstanding Voltage

AC 1000V RMS 50Hz or 60Hz 1 min

Mechanical:

1. Insertion Force

2 Contacts....350g 4 Contacts….500g 6 Contacts….750g

8 Contacts….900g 10 Contacts....1050g

2. Retention Strength

7.7KG.F min between jack and plug

3. Durability

750 Mating cycles min

Material:

1. Housing

ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)

2. Contact Wire

Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel

3. Shield

0.20~0.25mm thickness brass with tin plated

4. Gold Plating

1u inch,3u inch,6u inch,15u inch,30u inch,50u inch

5. RoHS peak wave solder

RoHS peak wave solder temperature rating 240°C±5°C

Environmental:

1. Working Temperature

-40°C to 85°C

2. Unbeatable quality: ROHS&UL SGS

Application:

1. Networking products: NIC, HUB, Switch, Router, BriRIDGE,

2. Work Station: PC/System, Printer,Server,NB,IACable, Moden,XDSL Application, Set-Top-Box.

3. OEM & ODM offered
