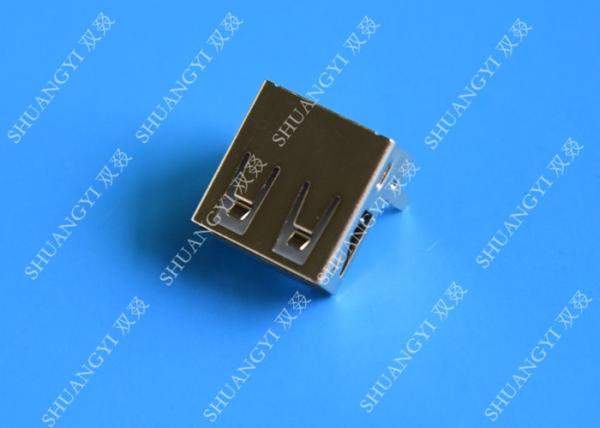

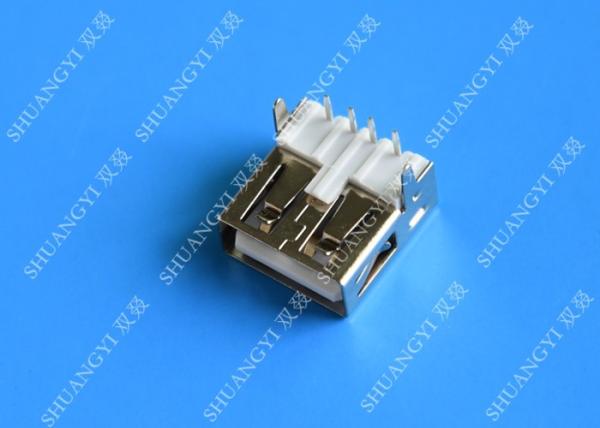

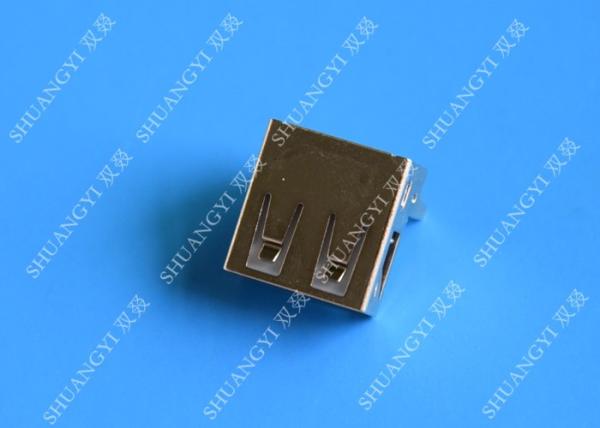

Female Straight Pin USB Charging Connector With 30 MΩ Contact Resistance
Female Straight Pin USB Charging Connector With 30 MΩ Contact Resistance
Female Straight Pin USB Charging Connector With 30 MΩ Contact Resistance
Female Straight Pin USB Charging Connector With 30 MΩ Contact Resistance
Female Straight Pin USB Charging Connector With 30 MΩ Contact Resistance
Female Straight Pin USB Charging Connector With 30 MΩ Contact Resistance
Female Straight Pin USB Charging Connector With 30 MΩ Contact Resistance
Female Straight Pin USB Charging Connector With 30 MΩ Contact Resistance
Female Straight Pin USB Charging Connector With 30 MΩ Contact Resistance
Female Straight Pin USB Charging Connector With 30 MΩ Contact Resistance
Specifications
Brand Name :
SHUANG YI
Model Number :
USB2.0/62
Certification :
ISO9001/SGS/UL/RoHS/Reach
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
100000 Piece/Pieces Per Month
Delivery Time :
7~10 Work Days
Packaging Details :
1.Reel Packing 2.Custom Box Packing 3.According To Client's Request
Application :
PCB, PC System, Printer, Server
Contact Platin :
1'-50u'
Material :
ABS/PBT/PA66/LCP
Gender :
Female
Description

Female Straight Pin USB Charging Connector With 30 MΩ Contact Resistance

Specification:

Electrical:

1. Current Rating 1.5 Amps
2. Voltage Rating 125 Vac
3. Insulation Resistance 500 MΩmin
4. Contact Resistance 30 MΩmax
5. Withstanding Voltage AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical:
1. Insertion Force

2 Contacts....350g 4 Contacts….500g 6 Contacts….750g

8 Contacts….900g 10 Contacts....1050g
2. Retention Strength 7.7KG.F min between jack and plug
3. Durability 750 Mating cycles min

Material:

1. Housing ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2. Contact Wire Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel
3. Shield 0.20~0.25mm thickness brass with tin plated
4. Gold Plating 1u inch,3u inch,6u inch,15u inch,30u inch,50u inch
5. RoHS peak wave solder RoHS peak wave solder temperature rating 240°C±5°C

Environmental:

1. Working Temperature -40°C to 85°C
2. Unbeatable quality: ROHS&UL SGS

Application:

1. Networking products: NIC, HUB, Switch, Router, BriRIDGE,
2. Work Station: PC/System, Printer,Server,NB,IACable, Moden,XDSL Application, Set-Top-Box.
3. OEM & ODM offered
