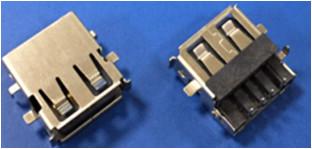

4pin AF Type USB2.0 Connector with 90 degreee dip foot
4pin AF Type USB2.0 Connector with 90 degreee dip foot
Specifications
Brand Name :
SHUANG YI
MOQ :
Negotiation
Certification :
ISO9001/SGS/UL/RoHS/Reach
Place of Origin :
Guangdong, China (Mainland)
Price :
Negotiation
Supply Ability :
100000 Piece/Pieces per Month
Delivery Time :
7~10 work days
Packaging Details :
1.custom polybag packing 2.custom paper box packing 3.According to client's request
Model Number :
RJ45
Type :
RJ45
Contact Plating :
1'-50u'
Application :
PCB, PC/SYSTEM,PRINTER,SERVER
Material :
ABS/PBT/PA66/LCP
Gender :
Female
Description

Specifications

4pin AF type USB2.0 connector with 90 degreee dip foot

Fast L/T: 7-10 days under 10K
Unbeatable quality: ROHS&UL SGS CE
OEM & ODM offered

DESCRIPTION
4pin AF type USB2.0 connector with 90 degreee dip foot

DONGGUAN XUNWANG ELECTRONIC CO.,LTD is one of the leading company in Electronic

Component industry with its high quality and competitive price. We provide RJ Jack, RJ45

Connector, PCB Modular Jacks, Modular Jack, and Phone Jack.Our goal is to provide customers

products of high quality, competitive price, and superior services.If you are searching for

Waterproof Connector, RJ Jack, RF Antenna, Microwave Cable & Connector, USB Connector,

Stamping Part, and European Socket, please feel free to contact us.
Electrical
1.Current Rating 1.5 amps
2.Voltage Rating 125vac
3.Insulation Resistance 500 MΩmin
4.Contact Resistance 30 MΩmax
5.Withstanding Voltage AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1.Insertion Force

2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g

8 CONTACTS….900g 10 CONTACTS....1050g
2.Retention Strength 7.7KG.F min between jack and plug
3.Durability 750 mating cycles min
Material
1.Housing ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2.Contact Wire Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel
3.Shield 0.20~0.25mm thickness brass with tin plated
4.Gold Plating 1u inch,3u inch,6u inch,15u inch,30u inch,50u inch
5.RoHS peak wave solder RoHS peak wave solder temperature rating 240°C±5°C
Environmental
Working Temperature -40°C to 85°C
APPLICATION
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK
STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.
