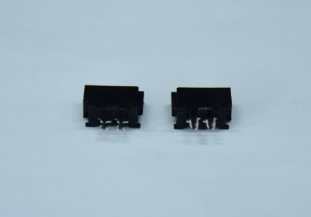

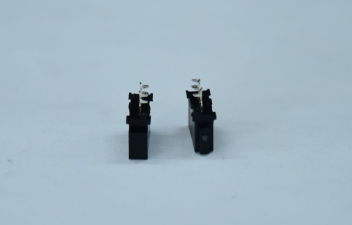

Product Name:SATA female chassis connector punch down 180° Gold plated 30u'' Wire to Board Connector

Product Overview:
This connector is a wire to board connector designed specifically for the SATA interface, especially for applications where SATA cables need to be connected to a circuit board. It features a 180-degree stamped design for flexible mounting in limited spaces, and the gold finger portion is 30 micro inches (30u'') gold plated to improve conductivity and corrosion resistance, ensuring stable and reliable data transmission.

Key Features:
1. 180-degree stamped design: The unique stamped design allows the connector to be installed in a space-saving manner and permits connections to be made in more compact environments.
2. Gold-plated gold finger: The gold finger portion is plated with high-purity gold to a thickness of 30 micro inches, which effectively reduces contact resistance, improves signal transmission efficiency, and enhances oxidation and corrosion resistance.
3. High quality materials: The connectors are made of high quality materials to ensure stable performance even in harsh environments.
4. Easy Installation: Designed with a convenient mounting interface, it makes the installation process simple and quick, reducing installation cost and time.
5. Wide compatibility: Suitable for a wide range of SATA interface devices, such as solid state drives, portable hard drives, computer motherboards, etc.

Technical parameters:
Interface type: SATA female
Installation method: punch down (punching)
Rotation angle: 180°
Plating thickness: 30u'' (30 micro inches)
Applicable cable: SATA cable
Operating Temperature: Typically -40°C to +85°C depending on the product
Operating humidity: 5% to 95% RH (no condensation), depending on the specific product

Application Areas:
The connector is widely used in personal computers, servers, storage devices, data centers and other fields that require high-speed data transmission and stable connections. It is especially suitable for those application scenarios that have strict space requirements or require highly reliable connections.

Caution:
During installation and use, please make sure that the connector pins and board interface are not damaged, so as not to affect the quality of data transmission.
Please install and use the connector correctly according to the product manual to avoid damage to the equipment caused by improper operation.
Check the connection status of the connector regularly to ensure the stability and reliability of data transmission.
