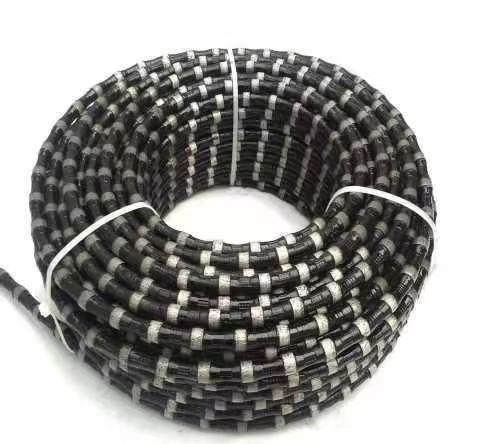

10.5mm 11.5mm Diamond Wire Saw Cutting For Cut Marble
10.5mm 11.5mm Diamond Wire Saw Cutting For Cut Marble
Specifications
Place of Origin :
China
MOQ :
1 pc
size :
diameter 9 and 10.5 and 11.5 mm
Purpose :
For cut marble stone
cutting speed :
high efficient
quality :
Good quality
suitable :
Dry/Wet cutting
packing :
in carton
Description

Diamond Wire Saw For Cut Marble

1. Universal wet cutting wires.

2. Good cutting result and high efficiency for quarrying.

3. Accurate dimension and fine appearance for processing.

4. For marble quarrying and concrete cutting

Diamond wire saw for cut Marble profiling

Bead dia.

Model

Application for

Fixed by

Bead Num/m

Line speed

Efficiency

Life

remark

D9

DGE3

Marble abnormal
shapping cutting

Import plastic

33-37m

22-28m/s

2-15m2/h

20-30m2/m

sintered

Diamond spring wire for marble quarrying

Bead dia.

Model

Application for

Fixed by

Bead Number/m

Line speed

Efficiency

Life

remark

D10.5

DGE3

Marble quarrying

Spring
holding up

27—30/m

35—40m/s

8—12m2/h

25—35m2/m

sintered

Diamond spring wire for marble quarrying

Bead dia.

Model

Application for

Fixed by

Bead Number/m

Line speed

Efficiency

Life

remark

D11.5

DGE3

Marble quarrying

Spring
holding up

33—37/m

30—35m/s

6—10m2/h

25—35m2/m

sintered

10.5mm 11.5mm Diamond Wire Saw Cutting For Cut Marble

10.5mm 11.5mm Diamond Wire Saw Cutting For Cut Marble
