Specifications

Condition :

New

Type :

Band Saw

Use :

Woodworking

Style :

Horizontal, Horizontal Portable Swing Blade Sawmill

Place of Origin :

Shandong, China

Brand Name :

Shandong Jierui Machinery Equipment Co.,Ltd.

Usage :

woodworking, Cutting Wood

Voltage :

220-380V

Dimension(L*W*H) :

2*1.1*1.4M

Warranty :

1 Year

Application :

Personal Use, DIY Cutting Wood, Wood Factory, Construction works, Building Material Shops, FARM, Furniture factory

Weight (KG) :

500 KG

Key Selling Points :

Energy saving

Max.Working Width(mm) :

1000mm

Band Saw Type :

Furniture Band Saw,Lumber Sawing Machine,Log Band Saw

Applicable Industries :

Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Construction works , Energy & Mining

Marketing Type :

New Product 2021

Machinery Test Report :

Provided

Video outgoing-inspection :

Provided

Warranty of core components :

1 Year

Core Components :

Motor

Product Name :

Wood Cutting Band Saw Machine

Keyword :

Precision Wood Cutting Sliding Table Saw Machine

Showroom Location :

None

Name :

Bandsaw Sawmill

After-sales Service Provided :

Online Support

Function :

Cutting Lumber

Advantage :

High Effeciency

Color :

Customer Actual Requirements

Packaging Details :

Customizable packaging

Supply Ability :

100 Set/Sets per Month

Price :

$1,500.00/sets 1-4 sets

MOQ :

1 PC

Payment Terms :

L/C, T/T, Western Union, MoneyGram

Description

Product Paramenters

Sawmill parameters	JR59	JR69	JR80	JR1000
Max Log Cutting Dia(cm)	60	70	92	105
Max Log Cutting Dia(inch)	24	28	36	41
Max Log Cutting Length	3.5m	3.5m	3.5m	3.5m
Track Length	4m	4m	4m	4m
Motor Power	5.5KW/18HP	5.5KW/18HP	7.5KW/18HP	11KW/27HP
Engine power	Electricity/Gasoline/Diesel	Electricity/Gasoline/Diesel	Electricity/Gasoline/Diesel	Electricity/Gasoline/Diesel
Packing Size	2.1m1m1.5m	2.1m1m1.6m	2.1m1m1.76m	2.1m1m1.76m
Voltage Options	220V/380V	220V/380V	220V/380V	380V
Saw Wheel Diameter	450mm	450mm	500mm	500mm
Blade Size	3300350.9mm	3500350.9mm	4200350.9mm	4200350.9mm
Lifting	manual	manual	manual	manual
Walking	manual	manual	manual	manual
Safe cutting Speed	6m/min	6m/min	4m/min	4m/min
Dimension	4m2.5m1.8m	4m2.5m1.8m	4m2.5m1.8m	4m2.5m1.8m
Weight	500kg	550kg	650kg	770kg
Warranty	1 year	1 year	1 year	1 year
Color customization	Supported	Supported	Supported	Supported
Logo customization	Supported	Supported	Supported	Supported

Products Description

Product type

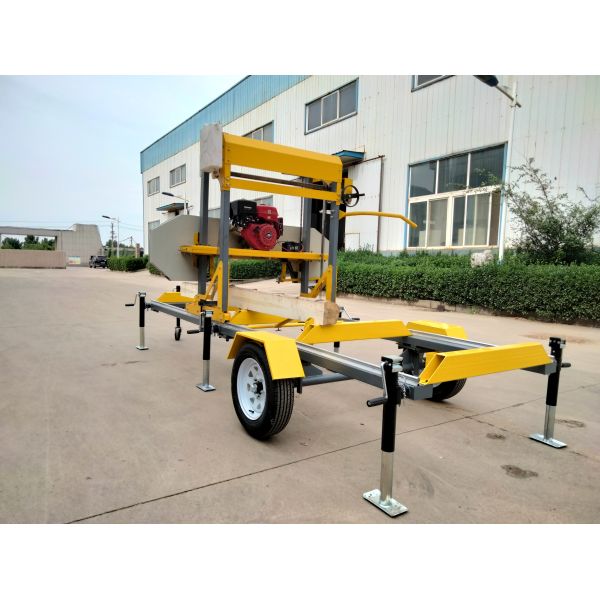

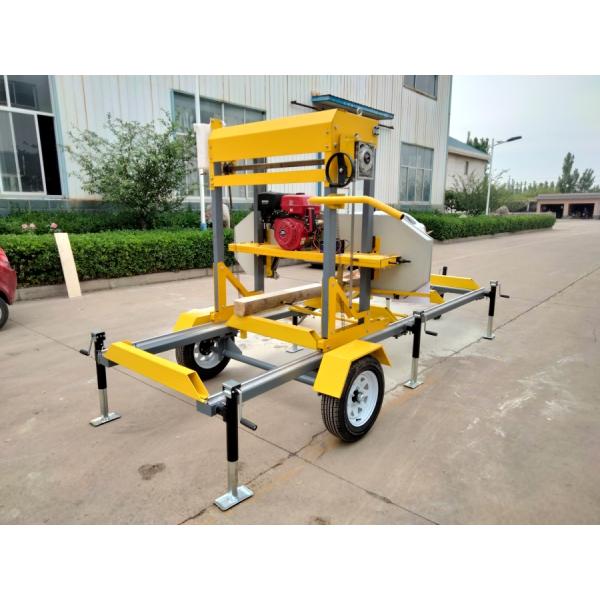

Portable sawmill with trailer

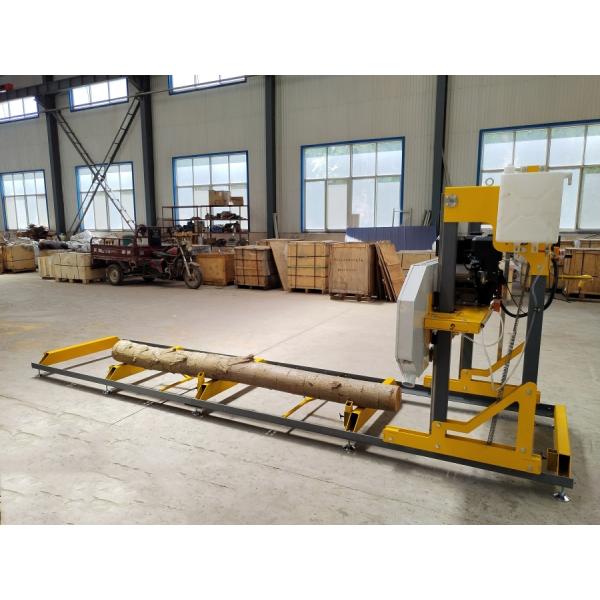

Portable sawmill

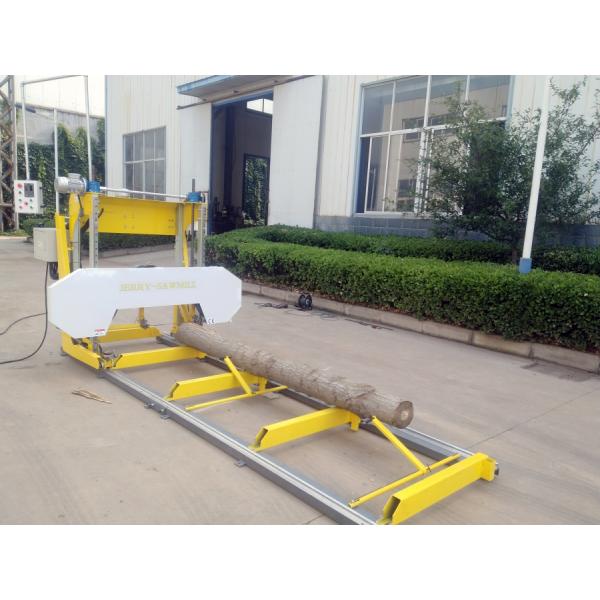

Electric automatic sawmill

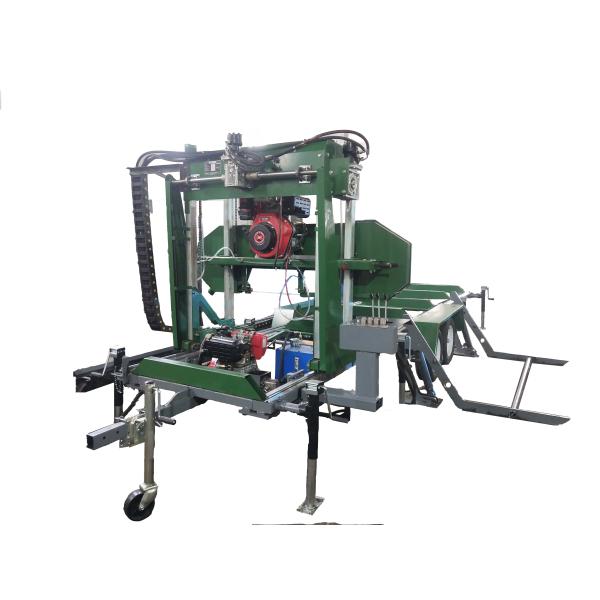

Gasoline/diesel powered sawmill

Super large sawmill

Hydraulic full-automatic sawmill

Application: It is suitable for the scale production of sawmill and is widely used in wood processing in the original forest area.

Features: 1.Hand forward and backward,hand lifting. 2.Power is gasoline engine/electric motor 3.It is also effective for hardwood Advantage: 1.The machine has the features of high cutting speed,high cutting rate,high quality of final，Saw road thickness is only 0.9mm product,great reduce the lost of sawdust. 2.It is simple installation, easy operation, labor saving , and high productivity. 3.simple , safe and pro-environment; 4.Automatic control the timber thickness, high-precision. 5.High cutting efficiency, smooth; high flatness of the cutting plate; 6.The thickness of processing wood can be adjusted according to your need 7.There's no need the professional sawyers, the ordinary workers can operate the machine expertly.

From the details,where are our advantages

1.About lifting system

Other

1.Steel wire rope is used for lifting and easy to wear.

2.Sudden interruption will lead to great security risks.

3.Pulley design is adopted,the structure is complex,and there may be more fault points.

Our

1.Chain design,simple structure and convenient replacement.

2.The sprocket rotates with a bearing,which is not easy to wear,It has been tested without fault after 30000 times of lifting and lowering

2.About lift rails

Other

1.The lifting track adopts hard friction which is easy to wear, the lifting is not smooth,and it is easy to get stuck.

2.The saw wheel needs to be adjusted on four sides,which is difficult to adjust.

Our

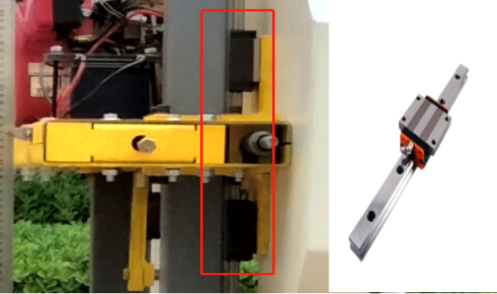

1.Saw blade lifting adopts linear guide rail with double sliding blocks.

2.Smooth lifting,no jamming,high sawing precision and better stability blade lifting adopts linear guide rail.

3.Single screw adjustment,simple and convenient.

3.About lifting power unit

Other

1.Mechanical locking device through pin shaft and wheel disc.

2.The size adjustment is not accurate enough.

3.The pin shaff is easily worn due to vibration,resulting in potential safety hazards.

4.Lifting of sawing machine is more laborious.

Our

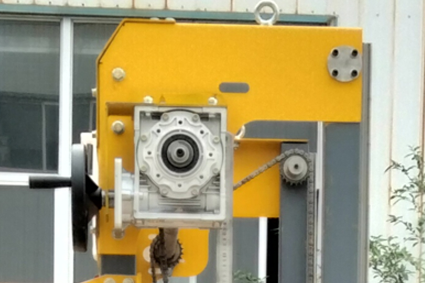

1.Adopt reducer for lifting ,stable and labor-saving.

2.The reducer is equipped with a locking system,which can be locked at any position.

3.Ensure more accurate sawing.

4.About walking track

Other

T-shaped guide rail is adopted , and the operation is not stable enough.

Our

The use of cylindrical linear guide rail makes the operation stable and the walking more labor-saving.

5.Aout engine starting

Other

1.Manual start only.

2.The engine support frame is thin and vibrates greatly.

Our

1.It can be started electrically or manually,with more choices and convenience.

2.The double-layer support frame can better reduce the vibration and has better stability when combined with the sliding block.

Operation process

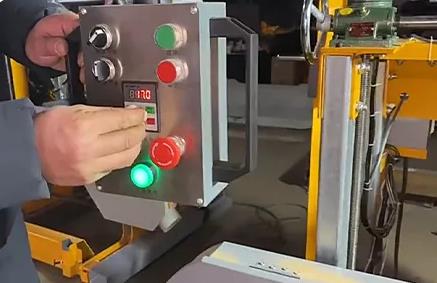

Open control button

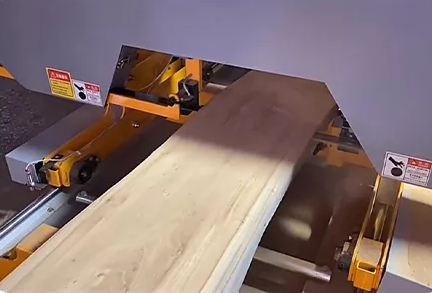

The machine is working

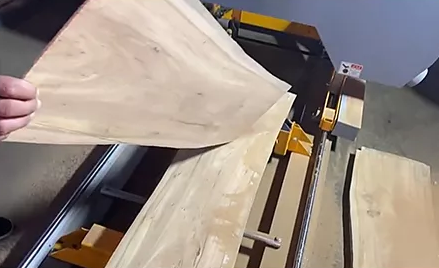

Processing completed

Our certificate

MEMBERSHIP CERTIFICATE

ENGINE CERTIFICATE

CE CERTIFICATE

Attend the exhibition

Ancillary product

ShanDong JieRui Machinery Equipment Co.,Ltd. Is One Of The World's Leading Man-Ufacturers Of High Quality Sawmills. Established In 2008, The Company Has Always Been Committed To The Production And R&D Of Sawmills And Sincerely Serves 13 000 Enterprises. Our Products Have Been Exported To 80 Countries In The World. Our Companycurrently Covers a Largenumber Of Product Lines Including Log Sawing Equipment, Solid Wood Furniture Pro-Cessing Equipment, And Wood Shredding Equipment,Saw Band Production Line.The Standardization Of Quality Management And Service, It Has Won The Favor Of Many Customers As The World's Best Supplier Of Sawmills, The Company Is Aiming To Continuously Strengthen Its Own Technological Innovation, Accelerate The R&D Of Sawmill Machinery, Andstrive To Provide Each Partner With The Best Combination Of Sawmill Production Lines. As The World's Best Supplier Of Sawmills, The Company Is Aiming To Continuously Strengthen Its Own Technological Innovation, Accelerate The R&D Of Sawmill Machinery, And Strive To Provide Each Partner With The Best Combination Of Sawmill Production Lines. Based On The Service Philosophy Of "Quality For Life" And"Customer-Centered", Jierui Machinery Insists On Standing At The Forefront Of Market Science And Tech-Nology So That Each Product Can Take Up The Company's Brand Value, Allowing Each Service Detail To Penetrateinto The Customer's Mind, Shouldering Responsibility. We Are Willing To Work With All The Partners To Join Hands In Creating a Bright Future.

Product packaging

FAQ

Q: Are You Factory Or Trading Company? A) We Are Iso9001 Certified Factory, Mainly Manufacture In Forestry & Farm Machinery. B) Using "Self-Produced Self-Marketing" Business, Reducing The Cost Of Intermediate Links.

Q: What's Your Company Advantages? A) As The Leading Manufacturer Of Forest Machines, We Have Exported To European Market For More Than Ten Years, Familiar With Forest And Farm Market And Can Recommend To Clients Right Products. B) We Have Various Products And Can Offer All The Machines And Tools In The Forest And Farm. You Can Get All The Items You Need. Easy And Convenient For You. C) With Us Your Money And Your Business Is Safe. We Can Offer 7-Days Refund In Case Of Bad Quality, And Alibaba Trade Assurance Payment For Safety. D) Coming Together Is a Beginning; Keeping Together Is Progress; Working Together Is Success. Q: Can We Buy One Sample? Yes, We Need To Add Sample Fee To The Price And Will Return It Back To Your After Receiving Your Large Order In Future. Q: What's Your Delivery Time? After Receiving Your Payment, We Start To Produce Your Order. It Usually Takes About 15-45 Days Depending On The Products You Order. Q: How Do You Control Your Quality? To Guarantee High Quality And Efficient Management, We Have Passed Iso9001 Quality Management System Certificate. All Of Our Products Are 100% Inspected Before Shipment. Our Whole Manufacturing Processes Are Under a Very Serious And Strict System In Our Company.

Q: What's Your Product Warranty? The Warranty Time Of The Machine Is One Year. During This Period, We Will Send You The Replacement For The Broken Part(Not Man Made). To Meet The Every Demand Of Customer Is Our Goal. We Are Standing By For Any Question Of Customer. We Try To Make Our Service Fast, Efficient And Satisfied. Q: What's Your Company Mainly Exporting Market? We Mainly Export To European, North American, Australia, English And Southeast Asia Market. Because Of Good Quality And Service, We Have Establish Good And Long Business Relations With Many Clients. Welcome Clients From All Over The World To Visit Our Factory.
