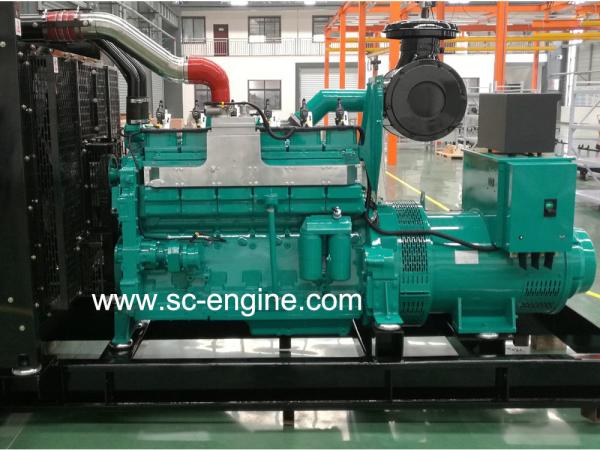

Cummins 300kva to 400kva Natural Gas Generator For Sale
Cummins 300kva to 400kva Natural Gas Generator For Sale
Specifications
Place of Origin :
Chongqing,China
Brand Name :
Cummins
Certification :
ISO9001:2008
Model Number :
SCKTA19-270GF30
MOQ :
1
Price :
Negotible
Packaging Details :
Standard Export Wooden Box
Delivery Time :
20 DAYS AFTER DEPOSIT
Payment Terms :
30% T/T Deposit, Balance before Shipment
Supply Ability :
1000 SETS
Usage :
Generator
Fuel :
Natural Gas
Stroke :
4 Stroke
Cylinder :
Multi-cylinder
Cold Style :
Water-cooled
Start :
Electric Start
Description

1. Generator Set Parameter

Model:

SC6K300G

Performance Grade:

G2

Rated Power:

270KW

Rated Current:

486A

Rated Voltage:

230/400V

Rated Frequency:

50HZ

Rated Speed:

1500r/min

The Factor of Rated Power:

0.8(lag)

Phase:

3Phase, 4line

The regulating rate of steady voltage:

≤±1%

The regulating rate of instantaneous voltage:

≤±20%

The regulating rate of steady frequency:

≤1%

The regulating rate of instantaneous frequency:

-10%～+12%

The time of steady voltage:

≤1s

The Recovery Time of Frequency:

≤5s

Usage Condition:

Temp. -12～45℃, altitude ≤2200m


2. Engine Parameter

Model:

SC6KTAA19

Type:

Line, 6-cylinder, 4-stroke

Air Intake:

Turbocharged, AA-inner-cooling

Bore*Stroke:

159mm*159mm

Compression Ratio:

10.5:1

Dis.:

19L

Rated Power:

300KW

Speed:

1500r/min

Fuel Consumption:

≤1.0g/KW.h

The regulation of rotating speed

E-Speed

Start Method:

DC24V Electric start


Cummins 300kva to 400kva Natural Gas Generator For Sale

3.Control System (Optional)

Electronic throttle

Bosch

Air inlet temperature pressure sensor

Bosch

Crankshaft position sensor

Bosch

ignition coil

IC-SP

RC pressure regulator

Madas

Proportional mixer

IMPCO


4. Fuel

Fuel Type

Nature Gas

Intake Pressure

3Kpa-20Kpa Pressure Change Rate≤1Kpa/min

methane concentration

≥70%

Low Heat Value(LHV)

≥ 4.2MJ/Nm3

Impurity particle size

≤5μm,content ≤30mg/nm³

Sulfide

≤20mg/Nm³

Intake Temp.

≤40℃；

Water Concentration

≤40g/nm³
Note: Using soften water is required when the engine performing high-low Temperature cycle. Cooling water should be slightly alkaline clean water, not containing corrosive compounds, such as chloride, sulfate or acid, etc. the main indicators are as follows :
Hardness: 0.7～5.3me/L
Chloride ion content: <150mg/L
PH : 7～8.5





Configuration
1. Configuration

Nature Gas Engine

Radiator

Engine Control System

Exhaust pipe connecting elbow *1

Nature Gas Intake System *1

additional accessories could be according to customer’s requirement


2. Engine Electronic Control Module(ECM)

u After the control system of the muti-point sequential ignition engine collects the position signal of the camshaft, it controls the ignition coil to fire in sequence.

u 12V,24V compatible

u The ignition time and ignition energy can be accurate via programming the Map.

u Equip high energy ignition coil for each cylinder

u Self-learn Function: ECW will self-correct the running parameter via temperature sensor, pressure sensor and throttle position signal.

u Industrial grade spark plug, high voltage wire

u Work Temp. :-20°to 85°

u Exhaust System

u Wet, Heat insulated exhaust manifold

u Industrial grade muffler

u Exhaust shock proof corrugated pipe

3. Lubricating System

u forced lubricgtion by Lube oil circulation pump with safety valve, and splash lubrication.

u Lube oil heater (Optional)

u Cummins fleetguard filter

u The brand of lube oil: Special lube oil for Cummins Nature Gas Gensets(Recommendation)
