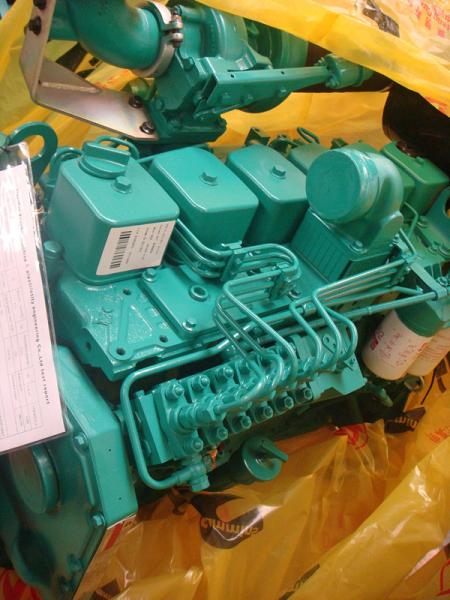

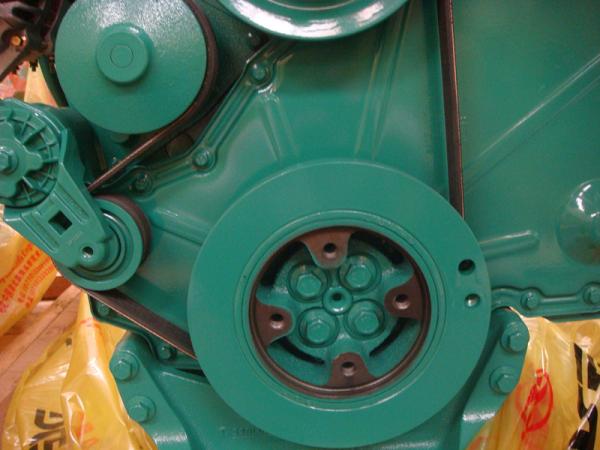

New Cummins 6BT5.9-G2 diesel engine used for genset
New Cummins 6BT5.9-G2 diesel engine used for genset
New Cummins 6BT5.9-G2 diesel engine used for genset
New Cummins 6BT5.9-G2 diesel engine used for genset
Specifications
Brand Name :
Cummins
Model Number :
6BT5.9-G1
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
15 working days
Packaging Details :
Standard Export Wooden Box
Usage :
Generator
Fuel :
Diesel
Stroke :
4 Stroke
Cylinder :
Multi-cylinder
Cold Style :
Water-cooled
Start :
Electric Start
Description

Cummins engine 6BT5.9 G1 / 6BT5.9 G2 generator

Technical Specification

Cylinder In-line 6

Compression Ration 17.5:1

Displacement 5.9L

Rated Speed 1500r/min (1800r/min)

Rated Power 86~92KW (100KW)

Standby Power 92~102KW

Genset Matching Power 50~75KW

Fuel Injection Pump A

Steady Speed Droop ≤1%(Electrical Governor)

Lubricant Capacity 16.4L

Coolant Capacity 10.4L(Engine Only)

Net Weight 411kg

Wet Weight 437kg

Overall Dimension(LXWXH) 1035X711X992mm

Coolant Intake Size Φ58mm

Coolant Outlet Size Φ45mm

Cooling Way Positive Water Cooling Cycle

Engine Type Prime Power Standby Power
4B3.9-G1 24 kW @ 1500 r/min 27 kW @ 1500 r/min
4B3.9-G2 24 kW @ 1500 r/min 27 kW @ 1500 r/min
4BT3.9-G1 36 kW @ 1500 r/min 40 kW @ 1500 r/min
4BT3.9-G2 36 kW @ 1500 r/min 40 kW @ 1500 r/min
4BTA3.9-G2 50 kW @ 1500 r/min 55 kW @ 1500 r/min
4BTA3.9-G2 50 kW @ 1500 r/min 55 kW @ 1500 r/min
4BTA3.9-G2 50 kW @ 1500 r/min 55 kW @ 1500 r/min
4BTA3.9-G1 58 kW @ 1500r/min 64kW @ 1500r/min
4BTA3.9-G2 58 kW @ 1500r/min 64kW @ 1500r/min
67 kW @ 1800r/min 74kW @ 1800r/min
4BTA3.9-G2 (12V ) 58 kW @ 1500r/min 64kW @ 1500r/min
67 kW @ 1800r/min 74kW @ 1800r/min
6BT5.9-G1 86 kW @ 1500 r/min 92 kW @ 1500 r/min
6BT5.9-G1 86 kW @ 1500 r/min 92 kW @ 1500 r/min
6BT5.9-G2 86 kW @ 1500 r/min 92 kW @ 1500 r/min
6BT5.9-G2 (12V ) 86 kW @ 1500 r/min 92 kW @ 1500 r/min
6BT5.9-G2 86 kW @ 1500 r/min 92 kW @ 1500 r/min
6BT5.9-G1 92 kW @ 1500 r/min 101 kW @ 1500 r/min
6BT5.9-G2 96 kW @ 1500 r/min 106 kW @ 1500 r/min
115 kW @ 1800 r/min 127 kW @ 1500 r/min
6BT5.9-G2 96 kW @ 1500 r/min 106 kW @ 1500 r/min
115 kW @ 1800 r/min 127 kW @ 1500 r/min
6BT5.9-G2 96 kW @ 1500 r/min 106 kW @ 1500 r/min
115 kW @ 1800 r/min 127 kW @ 1500 r/min
6BTA5.9-G2 106 kW @ 1500 r/min 116 kW @ 1500 r/min
120 kW @ 1800 r/min 132 kW @ 1800 r/min
6BTA5.9-G2(12V) 106 kW @ 1500 r/min 116 kW @ 1500 r/min
120kW @ 1800 r/min 132 kW @ 1800 r/min
6BTAA5.9-G2 120 kW @ 1500 r/min 130 kW @ 1500 r/min
132 kW @ 1800 r/min 145 kW @ 1800 r/min
6BTAA5.9-G2 120 kW @ 1500 r/min 130 kW @ 1500 r/min
132 kW @ 1800 r/min 145 kW @ 1800 r/min
6BTAA5.9-G2 (12V) 120 kW @ 1500 r/min 130 kW @ 1500 r/min
132 kW @ 1800 r/min 145 kW @ 1800 r/min
6CT8.3-G2 133kW @ 1500r/min 145 kW @ 1500r/min
6CT8.3-G2 133kW @ 1500r/min 145 kW @ 1500r/min
6CTA8.3-G1 163 kW @ 1500 r/min
6CTA8.3-G2 163 kW @ 1500 r/min 180 kW @ 1500 r/min
170 kW @ 1800 r/min 187 kW @ 1800 r/min
6CTA8.3-G2 163 kW @ 1500 r/min 180 kW @ 1500 r/min
6CTA8.3-G2 163 kW @ 1500 r/min 180 kW @ 1500 r/min
170 kW @ 1800 r/min 187 kW @ 1800 r/min
6CTAA8.3-G2 183 kW @ 1500 r/min 203 kW @ 1500 r/min
190 kW @ 1800 r/min 210 kW @ 1800 r/min
6LTAA8.9-G2 220kW @ 1500r/min 240 kW @ 1500r/min
235kW @ 1800r/min 258kW @ 1800r/min
6LTAA8.9-G2 220kW @ 1500r/min 240 kW @ 1500r/min
