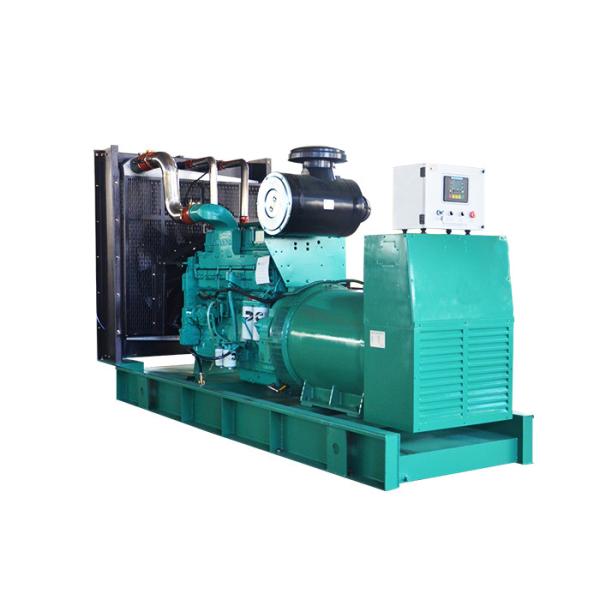

60hz electrical magnetic china 410kw diesel generator with KTA19-G3
60hz electrical magnetic china 410kw diesel generator with KTA19-G3
60hz electrical magnetic china 410kw diesel generator with KTA19-G3
60hz electrical magnetic china 410kw diesel generator with KTA19-G3
60hz electrical magnetic china 410kw diesel generator with KTA19-G3
60hz electrical magnetic china 410kw diesel generator with KTA19-G3
Specifications
Brand Name :
Cummins
Model Number :
KTA19-G3
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
20 SETS per Month
Delivery Time :
30 working days
Packaging Details :
Standard Export Wooden Case
Rated Power :
410KW
Standby Power :
450KW
Frequency :
60hz
Diesel Engine :
KTA19-G3
Alternator :
Stamford
Controller :
Deepsea Controller
Description

60hz electrical magnetic china 410kw diesel generator with KTA19-G3

Product Description
Diesel Generator Specifications
Model: SAC-C410-60
Prime Power: 410KW / 512KVA
Standby Power: 450KW / 562KVA
Frequency: 60HZ
Voltage: 440/254V
Phase: 3 Phase
P.F: 0.8
Fuel: Diesel
Rated Current: 738A
Start Method: 24V DC Start Battery
Accessory: Battery, wire, exhaust pipe, muffler, damper, breaker
Altitude: ≤1000m
Engine Specifications
Manufacturer: CCEC Cummins Engine Co., Ltd
Model: KTA19-G3, 4-cycle
Air Intake System: Turbo, Water/Air cooling
Fuel System: PT type fuel pump, EFC
Cylinder Arrangement: 6 in line
Displacement: 18.9L
Bore and Stroke: 159×159 mm
Compression Ratio: 13.9:1
Rated RPM: 1800rpm
Maximum Output Power: 511KW/695HP
Governor Type: Electronic
Exhaust System
Exhaust Gas Flow: 1713L/s
Exhaust Temperature: 491℃
Max Back Pressure: 10kPa
Air Intake System
Max Intake Restriction: 6.23kPa
Burning Capacity: 647L/s
Air Flow: 11700L/s
Fuel System
100%( Prime Power) Load: 203 g/Kw.h
75%(Prime Power) Load: 195 g/Kw.h
50%(Prime Power) Load: 224 g/Kw.h
100%( Prime Power) Load: 104.1L/h
Oil System
Total Oil Capacity: 50L
Oil Consumption: ≤4g/kwh
Engine Oil Tank Capacity: 38L
Oil Pressure at Rated RPM: 345-483kPa
Cooling System
Total Coolant Capacity: 106L
Thermostat: 82-93℃
Max Water Temperature: 104℃
Alternator Specifications
Manufacturer: STAMFORD
Model: STF410-14
Rated Capacity: 410KW
Winding: 100% Copper Wire
Frequency: 60HZ
Speed: 1800 RPM
Connecting Type: 3 Phase and 4 Wires, “Y” type connecting
Power Factor: 0.8
Protection Grade: IP23
Exciter Type: Brushless, self-exciting, with AVR
Insulation Class, Temperature Rise: H/H
Alternator Warranty: 1 Year No Time Limited
Voltage Regulation: ≥±5%
Control System Specifications
Manufacturer: DEEP SEA ELECTRONICS PLC (UK)
Model: DSE6020
Type: AMF Automatic Operation
Operation: Automatic Start and Auto Mains (Utility) Failure Control
Alarm Protect: Engine pre-heat, Current monitoring, Comprehensive Shutdown, Charge Failure

60hz electrical magnetic china 410kw diesel generator with KTA19-G3

Packaging & Shipping

Diesel generator Packaging: nude or plywood package

Diesel generator Shipping: 20 days after deposit

Our Services

(1) Diesel generator Warranty time: 1 year or 1000 running hours, which occurs the first
