Conventional spot resistance values: 0.1R 0.15R 0.18R 0.2R 0.22R 0.25R 0.27R 0.33R 0.36R 0.39R 0.47R 0.5R 0.56R 0.68R 0.75R 0.82R 1R 1.2R 1.3R 1.5R 1.8R 2 R 2.2R 2.4 R 2.7R 3R 3.3R 3.6R 3.9R 4.3R 4.7R 5.1R 5.6R 6.2R 6.8R 7.5R 8.2R 10R 12R 15R 18R 20R 22R 24R 27R 30R 33R 36R 39R 43R 47R 50R 51R 56R 62R 68R 75R 82R 91R 100R 120R 130R 150R 180R 200R 220R 240R 270R 300R 330R 360R 390R 430R 470R 510R 560R 620R 680R 750R 820R 1K 1.2K 1.5K 1.8K 2K 3K

product name

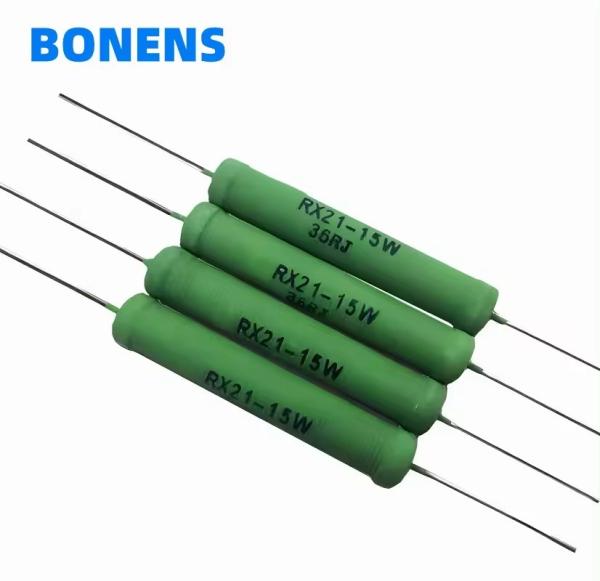

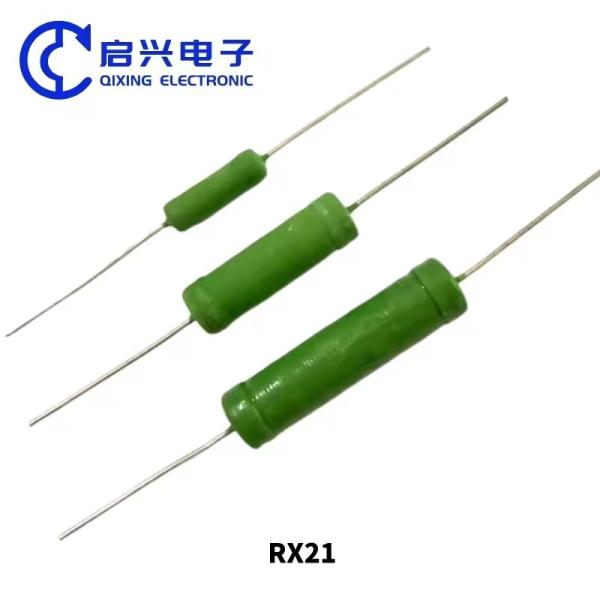

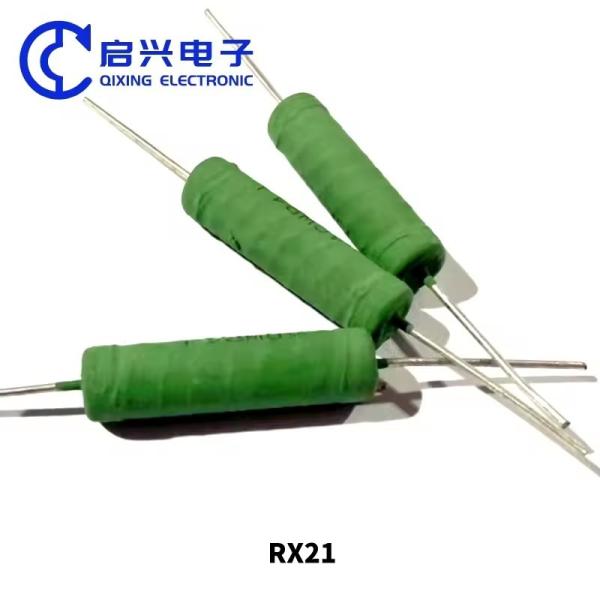

Rx21 Green Paint Wirewound Resistance KNP 0.5W 1W 2W 3W 4W 5W 6W 8W 10W 12W Grey Cylindrical High Power Resistor

product description

RX21 wire-wound resistor. This resistor has small size, high temperature resistance and good moisture-proof performance. It is widely used in DC or AC circuits of various electrical equipment and electronic instruments for voltage reduction, shunt or load purposes.

Environmental conditions for use:
Environmental temperature: -55 ℃ 275 ℃
Relative humidity: (95 ± 3)% (at a temperature of 40 ℃)
Atmospheric pressure: 8.5kpa
Vibration: The vibration frequency is 10500HZ
Voltage withstand: AC peak 500 volts (1 minute)
Overload: The change in resistance value is within ± (2% R+0.05 ohms).

Product Features

Using ceramic core; high temperature resistance; using fusion welding, strong overload capacity (can withstand 10 times rated power in 5 seconds); flame retardant.Operating environment conditions:

application area

RX21 painted wire-wound resistors are suitable for use in DC or AC low-frequency circuits as voltage dividers, shunts, loads, and sampling resistors.

Factory Display

We are a factory with many years of production experience, dedicated to providing customers with high-quality products and services. We have advanced production equipment and a professional research and development team, which can provide sufficient capacity and take on OEM customized and ODM orders.

Our product quality has been widely recognized by customers, and our after-sales service has also been highly praised. With many years of production experience, we have provided services and cooperation to many well-known clients. We welcome friends from all over the world to discuss cooperation, and we will provide the best service and products to return the trust and support of customers.

We always adhere to the business philosophy of "quality first, customer first", constantly improve our own quality and service level, and provide better products and services to customers. We look forward to your cooperation and jointly create a better future

FAQ

1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
