Specifications
Brand Name :
Bonens
Model Number :
BC1
Place of Origin :
Sichuan, China
Resistance :
1Ω~10KΩ
Resistance Tolerance :
±10%
Rated Power :
25W~500W
Operating Temperature :
-55°~+400°
Temperature Coefficient :
±50PPM/℃ ±100PPM/℃
Product name :
wirewound resistor
Description

150w variable power resistor rheostatostat

Product Description

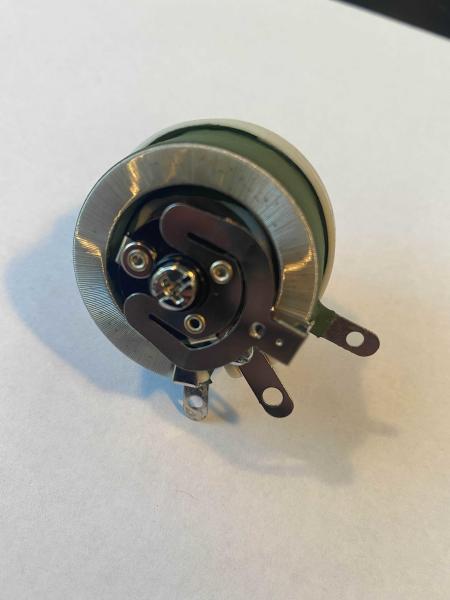

♦BC1 Disk variable resistor photos show:

BC1 Variable Power Resistor Rheostat Round Disk Wirewound Adjustable Resistor 25W 50W 100W 150w 200W 300W

BC1 Variable Power Resistor Rheostat Round Disk Wirewound Adjustable Resistor 25W 50W 100W 150w 200W 300W

BC1 Variable Power Resistor Rheostat Round Disk Wirewound Adjustable Resistor 25W 50W 100W 150w 200W 300W

♦BC1 Disk variable resistor data list:

Electrical Characteristics:

Range of nominal resistance.........1Ω~10KΩ

Resistance tolerance.........±10%

Terminal resistance.........≤0.2% or 1Ω

Insulation resistance.........≥100mΩ(500Vdc)

Max heating temperature.........350°

Environment Characteristics:

Rated power.......................300W @ 85°,or @ 400

Temperature range.................-55°~400°

Vibration.........................10~200HZ, 40m/S2, 3h ΔR≤±3%R

Thermal cycles....................-55°,30min,85°,30min Cycle 3 times ,ΔR≤±3%R, R1≥500MΩ

Moisture..................40±2°,RH:95%-98% 48h ΔR≤±3%R, R1≥100MΩ

Collision............................60~100 times/min, 150m/S2, 4000 times

Physical Characteristics:

Total mechanical travel..........300°±10°

♦BC1 Disk variable resistor dimentions:

Packaging & Shipping

1pcs/box ,12pcs/carton

Send by DHL/UPS/FEDEX/TNT and Land and sea transport
