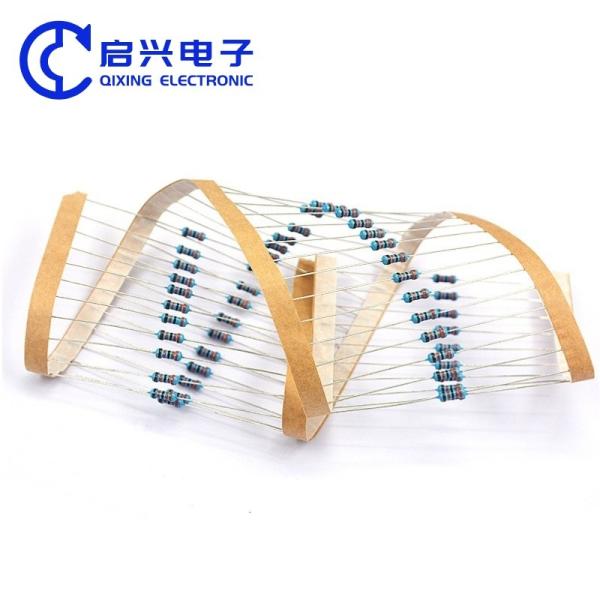

1K 5K 10K 100K 200K 1M ohm Metal Oxide Film Fixed Resistance Resistor For Instrument and Apparatus
1K 5K 10K 100K 200K 1M ohm Metal Oxide Film Fixed Resistance Resistor For Instrument and Apparatus
1K 5K 10K 100K 200K 1M ohm Metal Oxide Film Fixed Resistance Resistor For Instrument and Apparatus
1K 5K 10K 100K 200K 1M ohm Metal Oxide Film Fixed Resistance Resistor For Instrument and Apparatus
1K 5K 10K 100K 200K 1M ohm Metal Oxide Film Fixed Resistance Resistor For Instrument and Apparatus
1K 5K 10K 100K 200K 1M ohm Metal Oxide Film Fixed Resistance Resistor For Instrument and Apparatus
1K 5K 10K 100K 200K 1M ohm Metal Oxide Film Fixed Resistance Resistor For Instrument and Apparatus
1K 5K 10K 100K 200K 1M ohm Metal Oxide Film Fixed Resistance Resistor For Instrument and Apparatus
1K 5K 10K 100K 200K 1M ohm Metal Oxide Film Fixed Resistance Resistor For Instrument and Apparatus
1K 5K 10K 100K 200K 1M ohm Metal Oxide Film Fixed Resistance Resistor For Instrument and Apparatus
1K 5K 10K 100K 200K 1M ohm Metal Oxide Film Fixed Resistance Resistor For Instrument and Apparatus
1K 5K 10K 100K 200K 1M ohm Metal Oxide Film Fixed Resistance Resistor For Instrument and Apparatus
Specifications
Brand Name :
Bonens
Place of Origin :
China
Model Number :
Metal film resistor
Rated Power :
1/4w
Package Type :
Throught Hole
Resistance Tolerance :
1% or 5%
Temperature Coefficient :
15ppm,25ppm,50ppm,100ppm,250ppm
Package Type: :
5000PCS/resistance value /box
Description

Factory Price 1/4W Carbon Film Power Resistor, 1000MΩ Insulation, 300V Max Working, 600V Max Overload

Factory price Color Code Resistor1/4w Carbon Film Power Resistors

Product Details

1)Insulation resistance: 1000M ohm or more

2)Voltage endurance: The resistance variation shall be within±(2% + 0.05ohm) and there shall be no mechanical breakage

3) Intermittent overload:Resistance variation shall be Within ±(2.00% + 0.05ohm

4)Terminal strength:Resistance variation shall be within±(0.5% + 0.05ohm) also there Shall be on mechanical breakage

5)Heat resistively Against soldering:Resistance variation shall be within ± (1.0%+0.05ohm) also there Shall be on mechanical breakage

6) Solder ability:More than 95% of the surface of the lead shall be covered by new solder after the leads are dipped in the

Solder

7) Humidity load test:Resistance variation be Within ± (3.0% + 0.05ohm) Also there shall be mo mechanical breakage

8) Load life test :The variation of the resistance Shall be within ± (3%+0.05ohm) Also there shall be no mechanical Breakage

Rating:

CF(CARBON FILM FIXED RESISTORS)

STYLE

MAX

WORKING

MAX

OVERLOAD

RESISTANCE

VALUE RANGE

CF1/6W / CF1/8W

200V

400V

0.1Ω~22MΩ

CF1/4W / CF1/4WS

300V

600V

0.1Ω~22MΩ

CF1/2W / CF1/2WS

350V

700V

0.1Ω~22MΩ

CF1W / CF1WS

500V

1000V

0.1Ω~22MΩ

CF2W / CF2WS

500V

1000V

0.1Ω~22MΩ

CF3W / CF3WS

600V

1000V

0.1Ω~22MΩ

CF5W / CF5WS

600V

1000V

0.1Ω~22MΩ

Power rating:

1K 5K 10K 100K 200K 1M ohm Metal Oxide Film Fixed Resistance Resistor For Instrument and Apparatus

Marking:

1K 5K 10K 100K 200K 1M ohm Metal Oxide Film Fixed Resistance Resistor For Instrument and Apparatus

Color refer

Color

1 st Band

2 ndBand

3 rd Band

4 th Band

Black

0

0

100

Brown

1

1

101

Red

2

2

102

±2.0%

Orange

3

3

103

Yellow

4

4

104

Green

5

5

105

Blue

6

6

106

Violet

7

7

107

Grey

8

8

108

White

9

9

109

Gold

10-1

±5.0%

Silver

10-2

±10.0%

Construction And Dimession:

Construction:

1K 5K 10K 100K 200K 1M ohm Metal Oxide Film Fixed Resistance Resistor For Instrument and Apparatus

Dimession:

1K 5K 10K 100K 200K 1M ohm Metal Oxide Film Fixed Resistance Resistor For Instrument and Apparatus

TABLE:

WATTS

L

D

H

d ± 0.02mm

PULLING

(Kg)

1/6W 1/8W 1/16W

3.3±0.3

1.8±0.3

28±2.0

0.45

2.5Kg - 30S

1/4WS

1/4W

6.0±0.5

2.3±0.3

27.0±2.0

0.48

2.5Kg - 30S

1/2WS

1/2W

9.0±0.5

3.2±0.3

26.0±2.0

0.58

2.5Kg - 30S

1WS

1W

11.0±1.0

4.5±0.5

35.0±2.0

0.68

3Kg - 30S

2WS

2W

15.0±1.0

5.0±0.5

33.0±2.0

0.78

5Kg - 30S

3WS

3W

17.0±1.0

6.0±0.5

32.0±2.0

0.78

5Kg - 30S

5WS

5W

24.0±1.0

8.0±1.0

28.0±2.0

0.78

5Kg - 30S

FAQ:

1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch

4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,
and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
