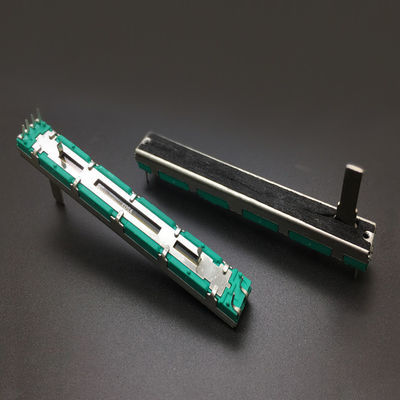

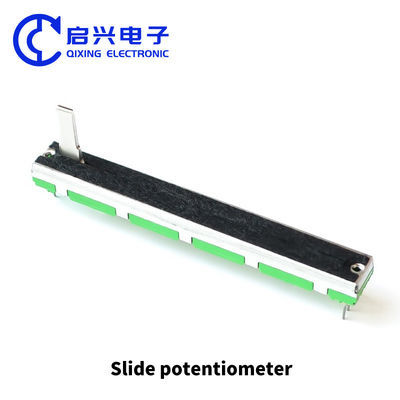

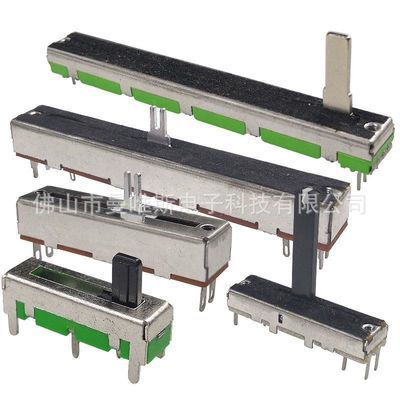

100mm travel Linear 10K 30K slide potentiometer
100mm travel Linear 10K 30K slide potentiometer
100mm travel Linear 10K 30K slide potentiometer
100mm travel Linear 10K 30K slide potentiometer
100mm travel Linear 10K 30K slide potentiometer
100mm travel Linear 10K 30K slide potentiometer
100mm travel Linear 10K 30K slide potentiometer
100mm travel Linear 10K 30K slide potentiometer
100mm travel Linear 10K 30K slide potentiometer
100mm travel Linear 10K 30K slide potentiometer
100mm travel Linear 10K 30K slide potentiometer
100mm travel Linear 10K 30K slide potentiometer
100mm travel Linear 10K 30K slide potentiometer
100mm travel Linear 10K 30K slide potentiometer
100mm travel Linear 10K 30K slide potentiometer
100mm travel Linear 10K 30K slide potentiometer
Specifications
Brand Name :
BONENS
Place of Origin :
Chengdu, Sichuan
Model Number :
SC10005G
Description
product name:
100mm travel Linear 10K 30K slide potentiometer
100mm travel Linear 10K 30K slide potentiometer
Specification
ELECTRICAL CHARACTERISTICS
Total Resistance
10K Ω±20%
Resistance Taper
A, B,C,D,E,MN,RD, W,
Max. Operation Voltage
Linear Taper B :AC 200 V~DC / V
Other Tapers :AC 150 V~DC / V
Rated Power
Single unit: Linear taper B:0.2W, Other tapers : 0.05W
Dual unit: Linear taper B:0.1W, Other tapers :0.025W
Sliding Noise
Less than 100 mV
Insulation Resistance
More than 100 MΩ at DC 250 V
Withstand Voltage
1 minute at AC 300 V
Residual Resistance
Term. 1~2 :Less than 10 Ω
Term. 2~3 :Less than 10 Ω
Gang Error (Dual Unit)
-40 dB ~ 0 dB ± 3dB
MECHANICAL CHARACTERISTICS
Total Sliding Travel
60.0 mm ± 0.5 mm
Operating Force
10 ~ 100 gf
Sliding Stopper Strength
5.0 Kgf.cm Min.
Push-Pull Strength
3.0 Kgf.cm Min . at 5 sec 10 sec
Number of Detents (Click)
1C (Center Detent ),7C,11C,21C,41C
Click Slip-Out Force
/ ~ / gf
Resistance to soldering heat
Solder dip:
Preheating condition: Surface temperature of the substrate shall be settled within 100℃ in one min.
Solder temperature 260±5℃for 5 sec.
Manual Soldering: Less than 300℃ and quicker than 3 seconds.
Sliding Life
10,000 Other / (Cycles Min.)
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Sichuan Qixing Electronics Co., Ltd. is specialized in manufacturing high-power resisters, wire-wound potentiometers, trimmer potentiometers, rotary carbon potentiometers, precision parts and so on ......
Engaged in civil and war industrial products for many years, we enfore ISO9001, ISO2000 quality control systems strictly. Our products are widely used in electronic communication products, instrument measuring appliances, cable TV equipments, electrician products, color television, color console, video and audio products and many other products. In order to maintain a leading position in the industry, we have further strengthened our product development ability.
Moreover, we took the lead in introducing the world leading high temperature polymerization furnaces from the USA to establish ceramic resistance element production line. QIXING has 500 workers at present, among whom we are proud of our 56 professionals(35 of them got over 10 years' experience in potentiometer/ high-power resister).
To satisfy our customers' needs, we provide product design and developing servises, OEM services, best aftersales servises and give best support once customer got a new idea. Providing massive acknowledged products to the war and civil industry units, our company has made certain.
"Technical innovation, striving for perfection, keeping on improving, continuously satisfying customers" is our company's quality policy, and "let customers be satisfied completely" is our goal. All our staff members are zealously creating a magnificent tomorrow with wit and diligence!
FAQ
1. who are we?
We are based in Sichuan, China, start from 2005,sell to Domestic Market(70.00%),Western Europe(8.00%),North America(5.00%),South
Asia(3.00%),Eastern Asia(3.00%),South America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Mid East(2.00%),Southeast
Asia(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer , Resistor, EMI Filter, Knob, Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter, and ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
