Light Duty Adjustable Steel Scaffolding Prop For Concrete Formwork Supporting
Light Duty Adjustable Steel Scaffolding Prop For Concrete Formwork Supporting
Light Duty Adjustable Steel Scaffolding Prop For Concrete Formwork Supporting
Light Duty Adjustable Steel Scaffolding Prop For Concrete Formwork Supporting
Specifications
Brand Name :
LM
Model Number :
LMSP001
Certification :
ASTM, JIS, DIN, BS, EN
Place of Origin :
China
MOQ :
1000
Payment Terms :
L/C, T/T
Delivery Time :
20~30days after receive the L/C or deposit
Packaging Details :
in pallets or in bundle or in bulk
Price :
US $5.5 ~12.30 /PC
Material :
Q235 Q345
Inner tube :
40/48.3mm
Outer tube :
48/56mm
Wall thickness :
1.5-4.0mm
Surface :
Painted ,pre-galvanized ,hot dipped galvanized
Standard :
ASTM, JIS, DIN, BS, EN
Description

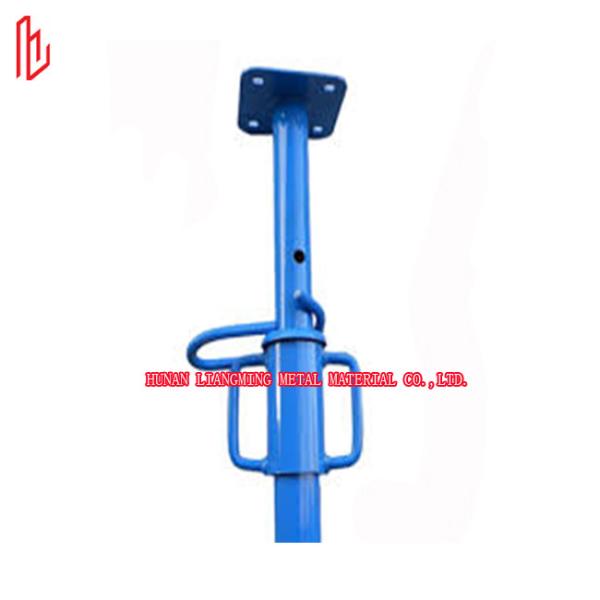

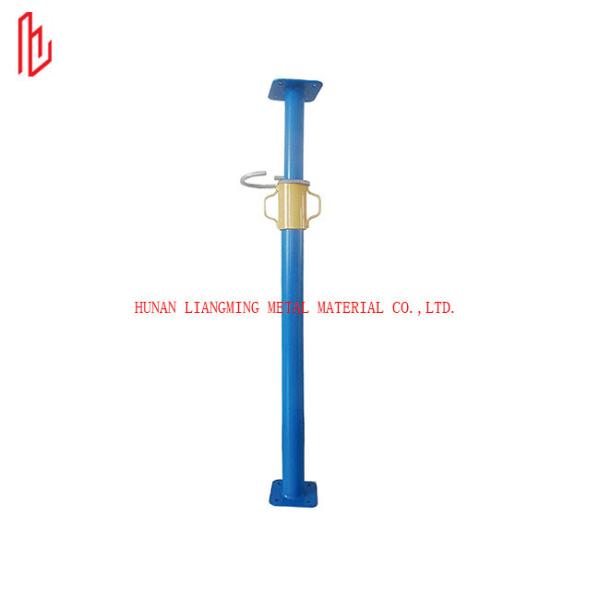

Light Duty Adjustable Scaffolding Steel Prop For Concrete Formwork Supporting

The Steel Prop is a kind of adjustable vertical pipe support for concrete formwork supporting. A high tensile steel pin is located through a slot in the outer section and a hole in the inner section for coarse adjustments. The casting collar located below the pin gives fine adjustment for leveling or striking. Rolled thread ensures no loss of material or strength at this critical point. And this is to ensure assurance of safety when the project constructionThe Steel Prop is a kind of adjustable vertical pipe support for concrete formwork supporting. A high tensile steel pin is located through a slot in the outer section and a hole in the inner section for coarse adjustments. The casting collar located below the pin gives fine adjustment for leveling or striking. Rolled thread ensures no loss of material or strength at this critical point. And this is to ensure assurance of safety when theproject construction.

Light Duty Adjustable Steel Scaffolding Prop For Concrete Formwork SupportingLight Duty Adjustable Steel Scaffolding Prop For Concrete Formwork Supporting

Type Light duty
Color Red/Orange/Blue/ Green etc,.
Main Materials Q235/Q345
Wall thickness 1.5-4.0mm
Size Inner tube diameter(mm) Outer tube diameter(mm) Adjustable length(mm) plate(mm)

More customized size

available

 40/48 48/56 800-1250 120*120*5
1250-2000
1800-2500
2000-3600
2200-4000
3000-5000

Packaging:

Light Duty Adjustable Steel Scaffolding Prop For Concrete Formwork SupportingLight Duty Adjustable Steel Scaffolding Prop For Concrete Formwork Supporting

Light Duty Adjustable Steel Scaffolding Prop For Concrete Formwork SupportingLight Duty Adjustable Steel Scaffolding Prop For Concrete Formwork Supporting

Factory Show

Light Duty Adjustable Steel Scaffolding Prop For Concrete Formwork SupportingLight Duty Adjustable Steel Scaffolding Prop For Concrete Formwork Supporting

Light Duty Adjustable Steel Scaffolding Prop For Concrete Formwork SupportingLight Duty Adjustable Steel Scaffolding Prop For Concrete Formwork Supporting

Steel prop is mainly used for support formwork member with high load bearing capacity ,

it is easy to install and adjustable the height ,it give high speed in construction work ..

Light Duty Adjustable Steel Scaffolding Prop For Concrete Formwork SupportingLight Duty Adjustable Steel Scaffolding Prop For Concrete Formwork Supporting

Light Duty Adjustable Steel Scaffolding Prop For Concrete Formwork SupportingLight Duty Adjustable Steel Scaffolding Prop For Concrete Formwork Supporting
