CHZ-H Carbon steel axle load scale Axle Weighing Scales Road toll scale Export electronic floor scale

The Axle Weighing Scales is composed of a steel structure modular weighing platform, a high-precision resistance strain type analog sensor and a dynamic weighing control display instrument. The weighing display adopts ultra-low drift, low noise, high-precision DC amplifier, fast and high-accuracy delta-sigma A / D converter, the conversion speed is> 500 times / second, and the internal division is 1 million. MCS-51 single-chip microprocessor, large six-digit fluorescent weighing value display and function status display, with uninterrupted clock circuit, standard Rs232c, Rs422 asynchronous serial interface, can communicate with computer, can connect to large screen display, connect to printer Can record and print statistics in Chinese: quadruple order, shift, combined shift, daily report, car number, article number, etc. With strong software functions, dynamic / static weighing switching, gross / net weight display conversion, date / time modification and display, car number / article number setting and display, number / cumulative display, division value selection, peeling, tare Re-keying, zero setting, automatic / manual switching, weighing calibration, parameter setting and modification, shift exchange, storage, storage data checking, clearing, etc.

Second, the characteristics of Axle Weighing Scales :

Double-layer structure, with built-in anti-dimensional holes, extremely convenient for maintenance and installation;

Built-in junction box, beautiful and generous;

U-shaped cold-formed steel group welding, high strength of the scale body;

Slab welding

The structure is fast and durable, and the surface is sandblasted and lacquered, which has strong corrosion resistance.

The maximum axle weight is 60t;

Minimum detection axle weight is 500Kg;

Unlimited number of axes;

Static weighing accuracy: national standard Ⅲ;

The reference size of the table is 3.2m × 0.9m (customized according to the lane width).
3. Components of the Axle Weighing Scales :

One modular weighing platform;

High-precision bridge load cell;

XK3190 series intelligent AC and DC dual-purpose weighing display instrument (with built-in printer);

All stainless steel surge-proof junction box.

Optional accessories:

Explosion-proof kit (EXIBIICT4 / CT5, EXIAIICT6);

Printer (Panasonic P1121 pin ticket / data printer);

Large screen display (3 inches, 5 inches, 8 inches);

Weighing management software;

Anti-surge power protector, UPS uninterruptible power supply.

Fourth, the functional characteristics of Axle Weighing Scales :

Real-time clock, not affected by AC power failure;

Dynamic detection, digital filtering and automatic zero tracking;

Zeroing, peeling, clearing, peeling, microprinting and other functions;

Keyboard setting and calibration;

Print daily reports, classified statistical reports, various general reports, reports of working parameters and standard rates of displays;

Personalized printing of Chinese characters: Users can compile the printing format of pound orders according to their own preferences, and can print the names of Chinese characters;

Axle load accumulation function: a small-scale truck scale can also weigh large-tonnage cars;

Automatic switching of division value: higher display accuracy;

Self-diagnostic function: multiple error messages and alarms.

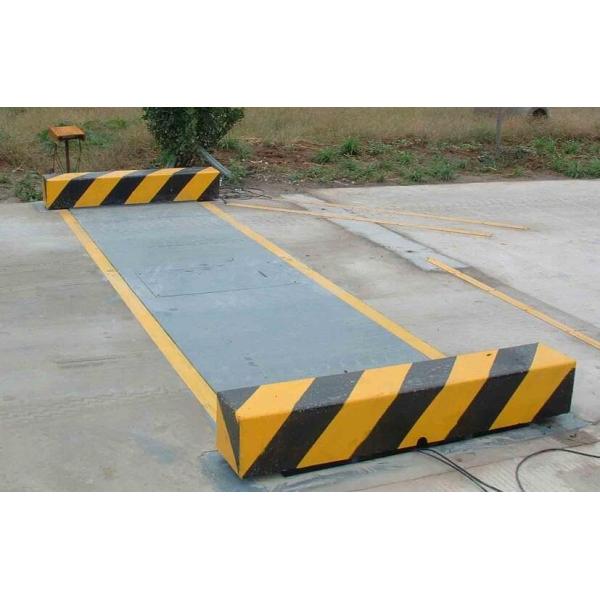

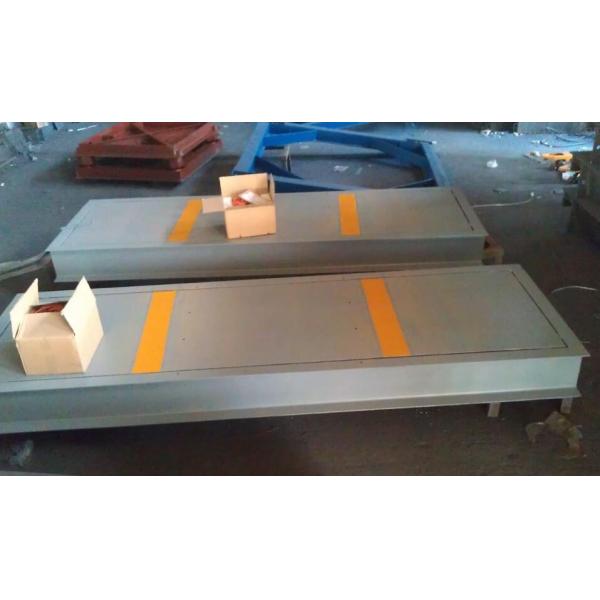

Axle Weighing Scales image:
