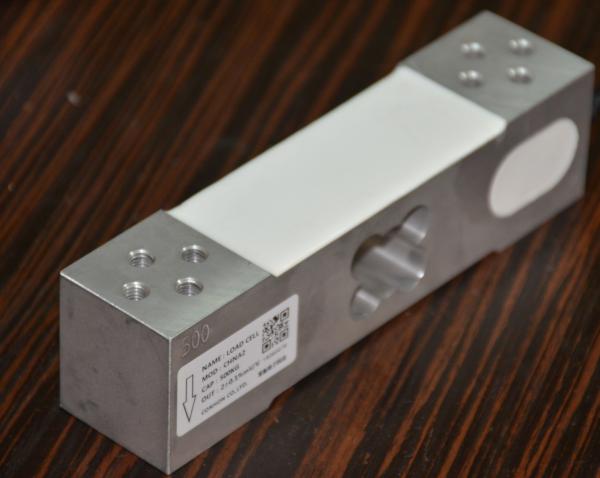

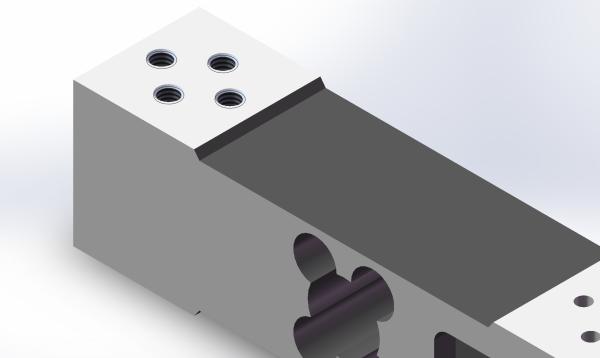

CHCP-2 Single Point Aluminum Alloy 12kg Load Cell Sensor
CHCP-2 Single Point Aluminum Alloy 12kg Load Cell Sensor
CHCP-2 Single Point Aluminum Alloy 12kg Load Cell Sensor
CHCP-2 Single Point Aluminum Alloy 12kg Load Cell Sensor
CHCP-2 Single Point Aluminum Alloy 12kg Load Cell Sensor
CHCP-2 Single Point Aluminum Alloy 12kg Load Cell Sensor
Specifications
Brand Name :
CONHON
Model Number :
CHCP-2
Certification :
CE
Place of Origin :
CHINA
MOQ :
100
Price :
￥800-10000/pcs
Payment Terms :
T/T
Supply Ability :
99999+pc+1m
Communication: :
RS232/485
Material: :
aluminum Alloy
Rated Output: :
Accuracy Level
Range :
3kg, 6kg, 10kg, 12kg, 15kg, 20kg, 25kg, 30kg, 35kg, 40kg, 45kg, 60kg, 120kg, 150kg, 200kg
Safe Temp. Range :
-10ºC to + 70ºC
Temp. Compensated :
-10ºC to + 40ºC
Description

CHCP-2 High Precision Single Point Aluminum Alloy Load Cells Sensor

Product parameters:

Single point type; high-quality aluminum alloy material; high accuracy; high stability; easy and fast installation; suitable for postage scales, packaging scales, small hopper scales, bench scales, etc .;
Product brand: CONHON CHCP-2 load cell, single point sensor
Product model: CHCP-2 load cell,CONHON CHCP-2 load cell
Product Price: Online Inquiry
CONHON CHCP-2 main features
● Single point
● High-quality aluminum alloy
● High precision
● High stability
● Easy and fast installation
● Suitable for post
Asset scale, packaging scale, small hopper scale, bench scale, etc.

60,100,150, 200,250,300,500(kg) (Customizable range)

Rated Output
额定输出
2.0mV/V ±10%
Zero Balance
零点平衡
±3% of rated output
Creep after 30 minutes
蠕变
±0.03% of rated output
Nonlinearity
非线性
±0.03% of rated output
Hysteresis
滞后
±0.03% of rated output
Repeatability
重复性
±0.03% of rated output
Temp. effect on output
灵敏度温漂
≤0.002% of applied output/ºC
Temp. effect on zero
零点温漂
≤0.002% of rated output/ºC
Safe Temp. Range
可用温度范围
-10ºC to + 70ºC
Temp. Compensated
温度补偿范围
-10ºC to + 40ºC
Safe Overload
安全载荷
150%
Input Impedance
输入阻抗
410 ohm ± 20 ohm
Output Impedance
输出阻抗
350 ohm ± 5 ohm
Insulation Resistance
绝缘阻抗
≥5000 M ohm (50V DC)
Rated Excitation
推荐激励电压
10V DC/AC
Maximum Excitation
最大激励电压
15V DC/AC
Cable Length
导线长度
13cm/35cm/275cm
Cable Color Code
导线颜色
Red(+E) Black(-E) Green(+S) White(-S)

Product Size:CHCP-2 Single Point Aluminum Alloy 12kg Load Cell Sensor
