CHCP-4D Single Point Digital Cart Scale 800kg Conhon Load Cells
CHCP-4D Single Point Digital Cart Scale 800kg Conhon Load Cells
CHCP-4D Single Point Digital Cart Scale 800kg Conhon Load Cells
CHCP-4D Single Point Digital Cart Scale 800kg Conhon Load Cells
CHCP-4D Single Point Digital Cart Scale 800kg Conhon Load Cells
CHCP-4D Single Point Digital Cart Scale 800kg Conhon Load Cells
CHCP-4D Single Point Digital Cart Scale 800kg Conhon Load Cells
CHCP-4D Single Point Digital Cart Scale 800kg Conhon Load Cells
CHCP-4D Single Point Digital Cart Scale 800kg Conhon Load Cells
CHCP-4D Single Point Digital Cart Scale 800kg Conhon Load Cells
Specifications
Brand Name :
CONHON
Model Number :
CHCP-4D
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
T/T
Supply Ability :
99999+pc+1m
Delivery Time :
4-6week
Certification :
CE
Price :
￥800-10000/pcs
Range :
60,100,200,250,300,500,800 (kg)
Material :
Aluminum alloy
Communication :
RS232/485
Rated Output :
Accuracy level
Safe Temp. Range :
-10ºC to + 70ºC
Temp. Compensated :
-10ºC to + 40ºC
Description

CONHON CHCP-4D Digital load cell shopping cart Scale load cell sensor

Features:

Single point type; high quality aluminum alloy material; high precision; high stability; easy to install, fast; suitable for postage scales, packaging scales, small hopper scales, platform scales, etc.;

Product brand: Chang Heng CHCP4 load cell, single point sensor

Model: CHCP-4D load cell, constant balance CONHON CHCP-4D load cell

Product Price: Online Inquiry

Main features of CHCP-4D

● Single point

● High quality aluminum alloy

● High precision

● High stability

● Easy and fast installation

● Suitable for postal

Packing scales, small hopper scales, platform scales, etc.

Product parameters:

Range: 60,100,150, 200,250,300,500(kg)

Rated Output
2.0mV/V ±10%
Zero Balance
±3% of rated output
Creep after 30 minutes
±0.03% of rated output
Nonlinearity
±0.03% of rated output
Hysteresis
±0.03% of rated output
Repeatability
±0.03% of rated output
Temp. effect on output
≤0.002% of applied output/ºC
Temp. effect on zero
≤0.002% of rated output/ºC
Safe Temp. Range
-10ºC to + 70ºC
Temp. Compensated
-10ºC to + 40ºC
Safe Overload
150%
Input Impedance
410 ohm ± 20 ohm
Output Impedance
350 ohm ± 5 ohm
Insulation Resistance
≥5000 M ohm (50V DC)
Rated Excitation
10V DC/AC
Maximum Excitation
15V DC/AC
Cable Length
13cm/35cm/275cm
Cable Color Code
Red(+E) Black(-E) Green(RXD) White(TXD)

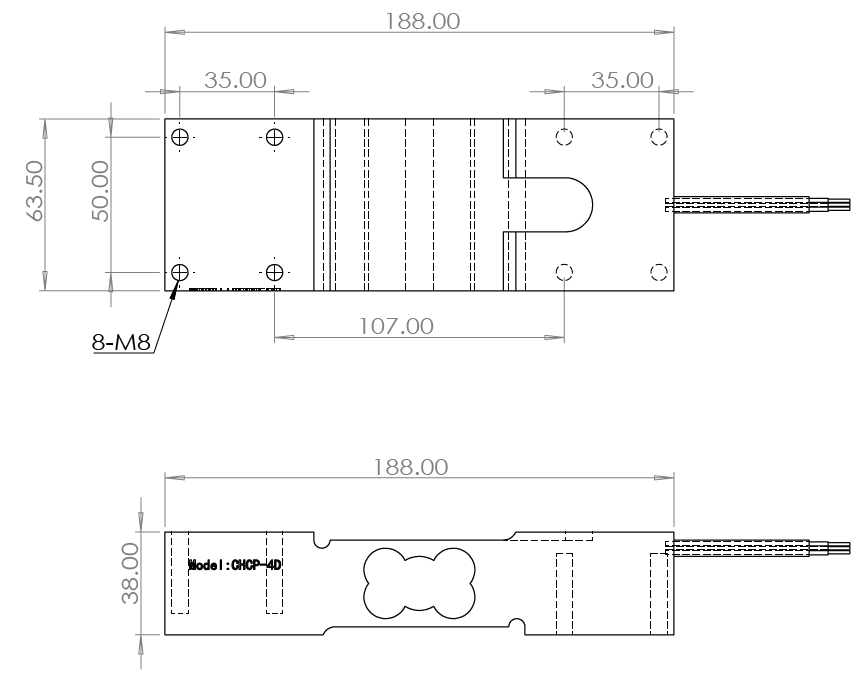

Product Size:

CHCP-4D Single Point Digital Cart Scale 800kg Conhon Load Cells
