78MM Weighing Accessories
78MM Weighing Accessories
78MM Weighing Accessories
78MM Weighing Accessories
Specifications
Brand Name :
General Measure
Model Number :
GM8802F/E
Certification :
-
Place of Origin :
CHINA
MOQ :
1
Price :
Online consultation
Payment Terms :
T/T
Supply Ability :
100000+pc+one week
Delivery Time :
one week
Packaging Details :
Carton
product name :
Weighing Accessories
power supply :
DC18V ~ 36V
Operating temperature :
-10 ~ 45 ℃
Communication Interface :
RS232 / RS485
size :
270 * 202 * 78 mm
Control type :
4-way / 2-way weight
Description

GM8802F / E Weighing Accessories Weight transmitter Digital transmitter Multi-channel weighing transmitter

GM8802F-4 / 2 field weight transmitter is a four-channel / two-channel weight transmitter developed for industrial weighing field applications. This transmitter adopts on-site installation and can be widely used in concrete and asphalt mixing stations, feed, metallurgy, chemical batching and other occasions.

GM8802F / E Weighing Accessories Features:

● On-site installation, dustproof and waterproof

● 24-bit high-precision two-channel, four-channel / two-channel independent AD acquisition module

● Support GM protocol, standard ModBus RTU / ASCII and other protocols

● With 32-bit processor, has stronger data processing ability

● Using special data package transmission method, the communication speed of a single instrument increases by 2 to 4 times per year

● Replace meter with ticket-free code calibration, with backup and restoration of working parameters

GM8802F / E Weighing Accessories specification:

Control type 4-way / 2-way weight
Installation method On-site installation
size 270 * 202 * 78 mm
Working power DC18V ~ 36V
Operating temperature -10 ~ 45 ℃
Maximum temperature 90% R.H non-condensing
strength About 5W
Sensor power DC5V 500mAh
level of accuracy Class III
A / D conversion method Sigma-Delta
A / D conversion speed 120 times / second
Highest display accuracy 1/50000
Communication Interface RS232 / RS485

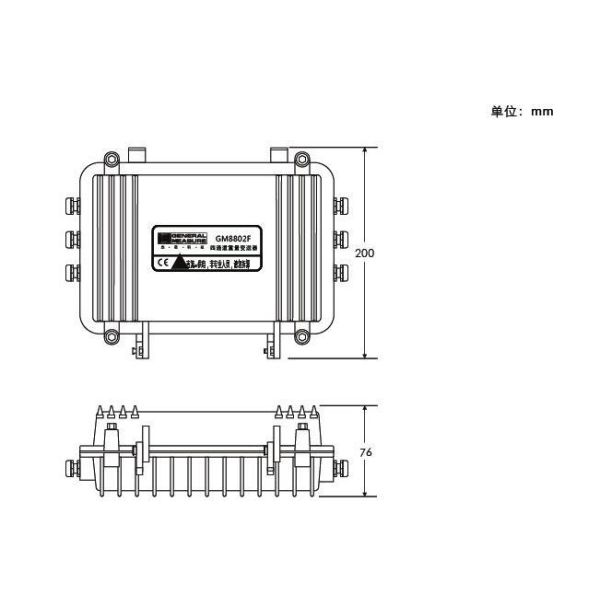

GM8802F / E Weighing Accessories dimension:

78MM Weighing Accessories

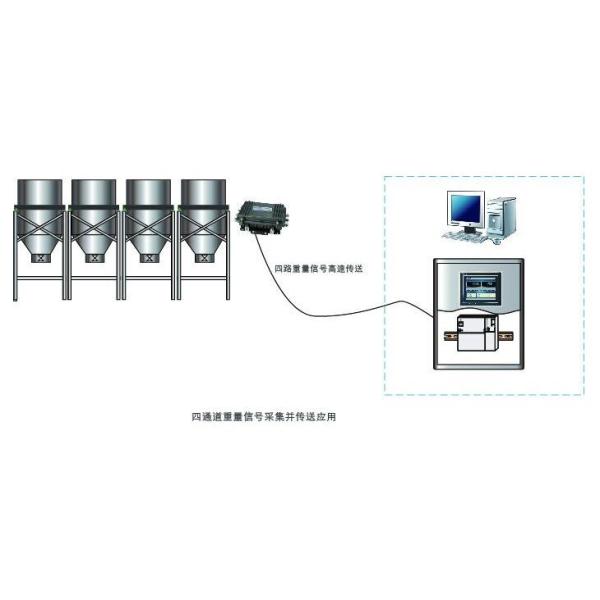

GM8802F / E Weighing Accessories User diagram:

78MM Weighing Accessories

We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
