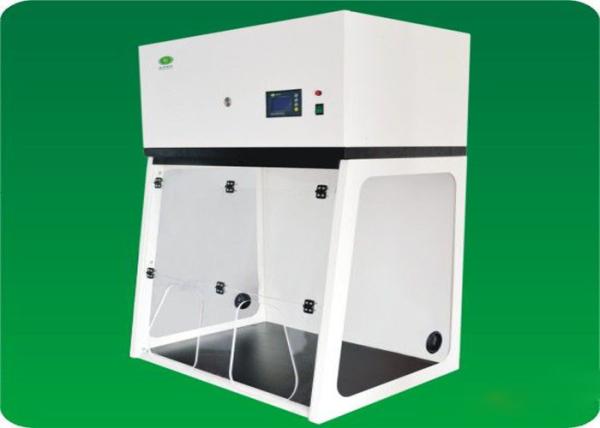

2015 New Design Ductless Laboratory Fume Hood

Description:

Ductless filtering fume hood is an kind of idea fume hood in laboratory with compact structure and flexible usage ,especially suiting for the laboratory environment that has limited space or a handful of toxic medium existing
The air contained Toxic Chemical fog ,vapors ,and particle would be retained by filter systems becoming clean and returning back to the laboratory environment again,which assure nonexistent harm medium leaving in ambient environment . ductless design would be mobile and allowed for convenience transportation.
Transparent enclosure made of acrylic acid material make ambient clearly visible and easily clean. The U.V lamp fixed in back panel would light up working shelf.
Operator shall be protected by an airflow with face velocity 0.5m/s from any harms of toxic gas and particles by the ductless fume hood.

Optional Equipment:

1. Stationary Pedestal base for holding up the fume hood (Size: L*W* H 1000×850×755-820mm)

2. Mobile Stationary Pedestal base for holding up the fume hood ,with caster (Size: L*W* H 1000×850×870mm)

3. Additional filters(Molecular Filter or HEPA Filter)

4. Workbench:
Physical bench (with the size :984×810×25mm)
Epoxy resin bench (with the size:984×810×25mm)
Stainless bench( with the size:984×810×25mm)
Ceramic bench( with the size:984×810×25mm)

5. Opaque Organic glass panel (Size W *H :400mm×1680mm )

6. HEPA filter would be fixed as required by customer for powder handling with the filtering efficiency over 99.997%

7. Additional Fluorescent.

Standard Equipment:

1. LCD Screen

2. Fluorescent light

3. One Anemometer for inspecting the air face velocity

4. Fun Failure alarm device(Manual Operation)

5. Filter Saturation Sampling port

6. Three molecular filters(Combination of Pre-filter and Main filter) for solvent handling.

Advantage:

1. UV lamp. Sterilize the working area.
2. LCD display screen. See the air velocity directly.
3. Inbuilt fan. Easy to install, save time.
4. The air velocity is adjustable (9 levels).
5. Electrical controlled glass.
6. Removable work surface. Easy to clean.
7. Fast delivery.

Welcome to send your inquiry,welcome to visit our factory!
