Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg
Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg
Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg
Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg
Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg
Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg
Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg
Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg
Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg
Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg
Specifications
Brand Name :
JS
Model Number :
HD1000R
Certification :
CE,SGS
Place of Origin :
China
MOQ :
10 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 sets per month
Packaging Details :
Carton package or pallet package
Product name :
Custom electric lift tables
Capacity :
1000kg
Platform Size :
1240x640mm
Elevating Time :
35-45s
Power Parameters :
380V/50Hz
Material :
High Quality Steel
Application :
Warehouse,For Goods Delivery
After-Sales Service :
Engineers Available To Service Machinery Overseas
Waranty :
12 months
OEM :
Support
Showroom Location :
China
Keyword :
Double scissor lift table
Description

Hydraulic Electric Multi Scissors Lift Tables With Rotating Tops 1200 Mm Up To 1000kg Loading Weight Custom Lift Tables

Customized electric scissor lift table with rotating top

Model
Unit
HD1000 with rotating
HD4000 with rotating
Rated Lifting Capacity
Kg
1000
4000
Platform Size
mm
1200mm dia
1000mm dia
Base Size
mm
1240x640
1600x900
Min/Max Height
mm
305/1780
500/1400
Elevating Time
s
35-45
55-65
Power Parameters
380V/50Hz
380V/50Hz
N.W.
Kg
450
450

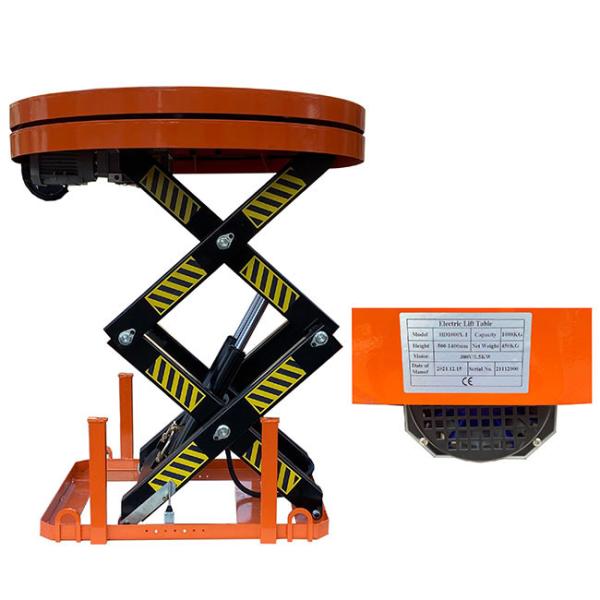

Hydraulic Scissors Lift Tables with Rotating Tops
360 degree swivel top with heavy duty cam rollers and exclusive swivel bearings. Cylinder with Internal Stop, Hard Chrome Plated, Polished Shafting Hydraulic Cylinder Piston Rod.Surfaces are degreased, descaled and painted with safety yellow enamel Integral gear pump with check valve, relief valve, solenoid valve. Smooth steel top with yellow safety strips Magnetic Backing With control box for motor
Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg

Travel limit switch
Limit components adjust the desire height by controller. Industrial design with high-quality components, the hydraulic lift table comes standard with two brake casters that prevent the table from moving when unloaded. In addition, the heavy-duty hydraulic pump mechanism is equipped with a slow-down valve to ensure smooth movement during the lifting process.
Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg

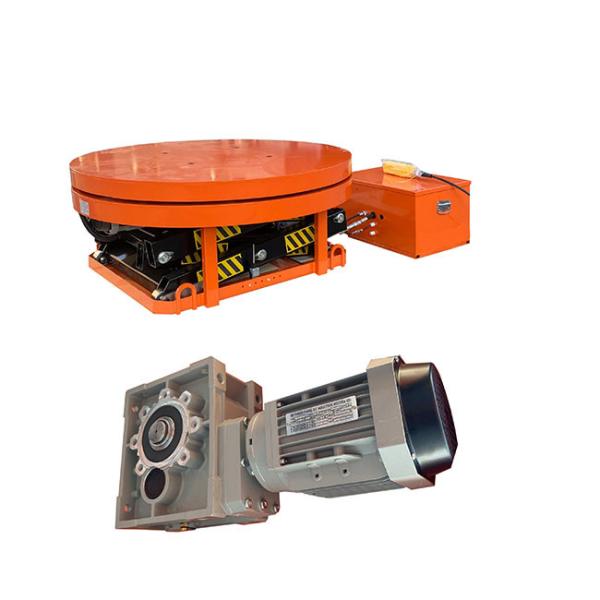

Powerful by Electric
3-phase support powerful in watt. Ideal technical design supply support lifting with Double scissor.
Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg

Scan the QR code to contact us for quick reply for the Custom scissor lift tables
Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg Electric Hydraulic Scissor Lift Tables Multi Stage Scissor Lift With Rotating Tops 1200mm Up To 1000kg
