3T 7.6M CE Heavy Load Hydraulic Scissor Lift Fixed Auto Ladder Cargo Scissor Lift
3T 7.6M CE Heavy Load Hydraulic Scissor Lift Fixed Auto Ladder Cargo Scissor Lift
3T 7.6M CE Heavy Load Hydraulic Scissor Lift Fixed Auto Ladder Cargo Scissor Lift
3T 7.6M CE Heavy Load Hydraulic Scissor Lift Fixed Auto Ladder Cargo Scissor Lift
3T 7.6M CE Heavy Load Hydraulic Scissor Lift Fixed Auto Ladder Cargo Scissor Lift
3T 7.6M CE Heavy Load Hydraulic Scissor Lift Fixed Auto Ladder Cargo Scissor Lift
3T 7.6M CE Heavy Load Hydraulic Scissor Lift Fixed Auto Ladder Cargo Scissor Lift
3T 7.6M CE Heavy Load Hydraulic Scissor Lift Fixed Auto Ladder Cargo Scissor Lift
3T 7.6M CE Heavy Load Hydraulic Scissor Lift Fixed Auto Ladder Cargo Scissor Lift
3T 7.6M CE Heavy Load Hydraulic Scissor Lift Fixed Auto Ladder Cargo Scissor Lift
Specifications
Brand Name :
SDLIFT Or OEM
Model Number :
SJG3-7.6
Certification :
CE TUV SGS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD5980- USD9900 / UNIT
Supply Ability :
3600units per year
Delivery Time :
5-20 work days
Packaging Details :
Iron case or plywood case package
Application :
Scissor Lift For Warehouse Heavy Cargo Lifting
Power Supply :
220V/240V/380V/415V (as request)
Safe Device :
Explosion-Proof Lock Valve
Lift System :
Hydraulic System
Color :
red, grey, yellow, blue, or as your optional
Load Capacity :
3000kgs
Lift height :
7600mm
Material :
high strength Manganese Steel
Platform size :
4m x 2m
Description

3T 7.6M CE Heavy Load Hydraulic Scissor Lift Fixed AutoLadder Cargo Scissor Lift​:

Parameter:
1) load capacity : 3000kgs
2) platform size : 4m x 2m
3) travel height : 7.6m
4) structure : high-strength Manganese steel
5) power : 380v / or 220v / or 240v / or 400v

6) Installation : into pit , underground

Application:

The Hydraulic Scissor Lift can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, to second floor, or to third floor.

Operation is easy. There are 2 sets control system installed on the Hydraulic Scissor Lift , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.

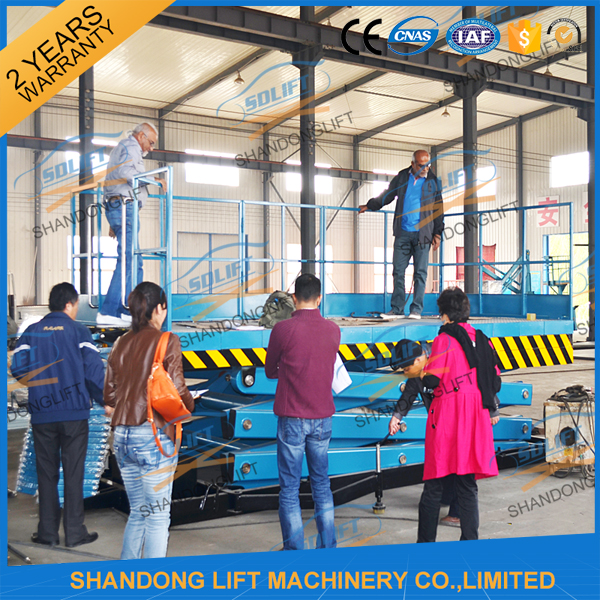

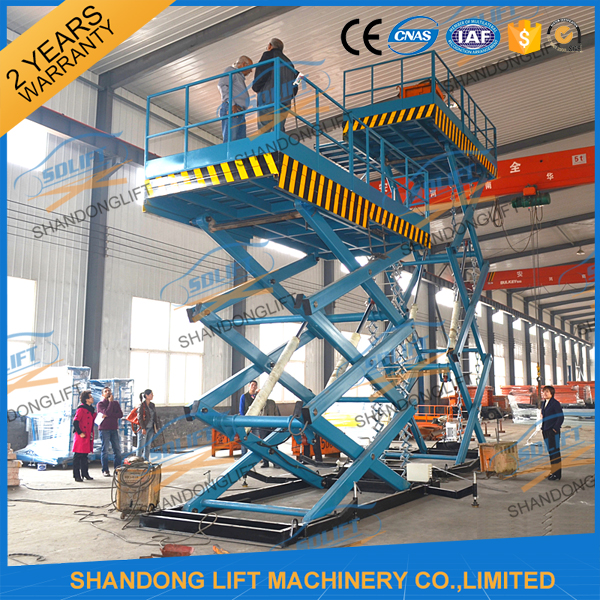

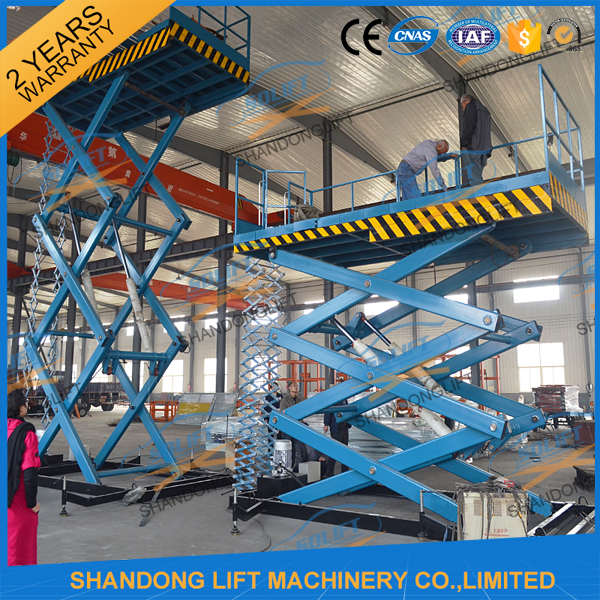

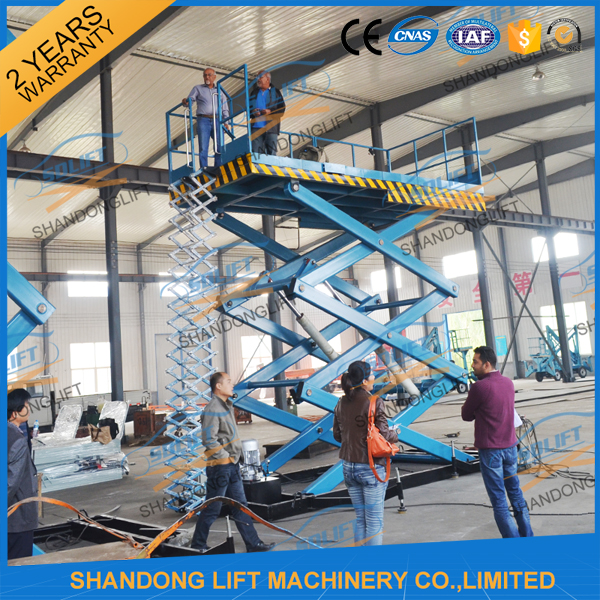

The products showing:

3T 7.6M CE Heavy Load Hydraulic Scissor Lift Fixed Auto Ladder Cargo Scissor Lift3T 7.6M CE Heavy Load Hydraulic Scissor Lift Fixed Auto Ladder Cargo Scissor Lift

3T 7.6M CE Heavy Load Hydraulic Scissor Lift Fixed Auto Ladder Cargo Scissor Lift3T 7.6M CE Heavy Load Hydraulic Scissor Lift Fixed Auto Ladder Cargo Scissor Lift

Configuration:

1) Platform Material:2000mm*100mm rectangular tube +8mm checkered iron

2) Scissor material: 200mm*100mm*15mm high strength Manganese Steel.

3) Hydraulic system: 380V/7.5Kw

4) High Precision Hydraulic Cylinder: 140*2sets

5) Piston Rod: 80*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box, 1 hand controller

Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the car parking lift hydraulic scissor car lift to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the double scissor car lifts are passed 1.2 times loading test before leaving factory.

The models we supplied for clients:

MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG2.5-3

2.5T

5.2m x 2.6m

3m

750mm

220V, 240V, 380V or 400V

SJG2-6.5

2T

5.2m x 2.8m

6.5m

750mm

220V, 240V, 380V or 400V

SJG2.5-3.5

2.5T

5.2m x 2.6m

3.5m

800mm

220V, 240V, 380V or 400V

SJG2.5-5

2.5T

5.6m x 3m

5m

750mm

220V, 240V, 380V or 400V

SJG3-2.5

3T

5m x 2.3m

2.5m

750mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

800mm

220V, 240V, 380V or 400V

SJG3-3.5

3T

5.6m x 2.7m

3.5m

800mm

220V, 240V, 380V or 400V

SJG5-10

5T

4.5m x 2.5m

10m

1150mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

850mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

950mm

220V, 240V, 380V or 400V

SJG15-4.5

15T

8m x 2.2m

4.5m

1050mm

220V, 240V, 380V or 400V

SJG20-5

20T

6m x 3m

5m

950mm

220V, 240V, 380V or 400V

The Hydraulic Scissor Lift​ can be customized as your detailed size.

The Certificates:

3T 7.6M CE Heavy Load Hydraulic Scissor Lift Fixed Auto Ladder Cargo Scissor Lift

Our services:

1) The Hydraulic Scissor Lift can be done as per your detailed parameter

2) Shipment can be arranged from our port to your destination port.

3) Operation video can be sent to you if needed.

4) English manual for car lift installation , using and maintenance.

5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults during warranty time.
7) Supply 24-hours technical assistance by email, telephone or skype.
8) Engineers are available to your country if necessary.
