In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage
In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage
In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage
In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage
In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage
In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage
In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage
In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage
In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage
In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage
In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage
In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage
Specifications
Brand Name :
SDLIFT Or OEM
Model Number :
SJG5-3.5
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD3980- USD7900 / UNIT
Supply Ability :
3600units per year
Delivery Time :
20 work days
Packaging Details :
Iron case or plywood case package
Safe Device :
Explosion-Proof Lock Valve
Motor :
From Italy or Chinese famous brand
Application :
Garage Car Parking Lift
Load Capacity :
5000kgs
Lift height :
3500mm
Platform size: :
5500mmx 2600mm
Description

In Ground 5 ton Hydraulic Car Scissor Lift for Home Garage Basement Car Lift:

Parameter:
1) load capacity : 5000kgs
2) platform size : 5.5m x 2.6m
3) travel height : 3.5m
4) structure : high-strength Manganese steel
5) power : 380v / or 220v / or 240v / or 400v

6) Installation : underground , into a pit

Configuration:

1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.

3) Hydraulic system: 380V/5.5Kw

4) High Precision Hydraulic Cylinder: 100*4sets

5) Piston Rod: 70*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the car parking lift hydraulic scissor car lift to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the car parking lift hydraulic scissor car lifts are passed 1.2 times loading test before leaving factory.

Model list

Model load capacity Platform size Lift height Pit depth Power
SJG2.5-3 2.5T 5.2m×2.6m 3m 750mm 220v, 240v,380v or 400v
SJG2-6.5 2T 5.2m×2.8m 6.5m 800mm 220v, 240v,380v or 400v
SJG2.5-3.5 2.5T 5.2m×2.6m 3.5m 800mm 220v, 240v,380v or 400v
SJG2.5-5 2.5T 5.6m×3m 5m 800mm 220v, 240v,380v or 400v
SJG3-2.5 3T 5m×2.3m 2.5m 750mm 220v, 240v,380v or 400v
SJG3-3 3T 5.2m×2.6m 3m 800mm 220v, 240v,380v or 400v
SJG3-3.5 3T 5.6m×2.7m 3.5m 800mm 220v, 240v,380v or 400v
SJG5-10 5T 4.5m×2.5m 10m 1150mm 220v, 240v,380v or 400v
SJG8-2.5 8T 6.5m×4.5m 2.5m 850mm 220v, 240v,380v or 400v
SJG12-3 12T 5.5m×2.8m 3m 950mm 220v, 240v,380v or 400v
SJG15-4.5 15T 8m×2.2m 4.5m 1150mm 220v, 240v,380v or 400v
SJG20-5 20T 6m×3m 5m 1200mm 220v, 240v,380v or 400v

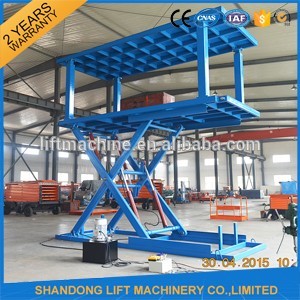

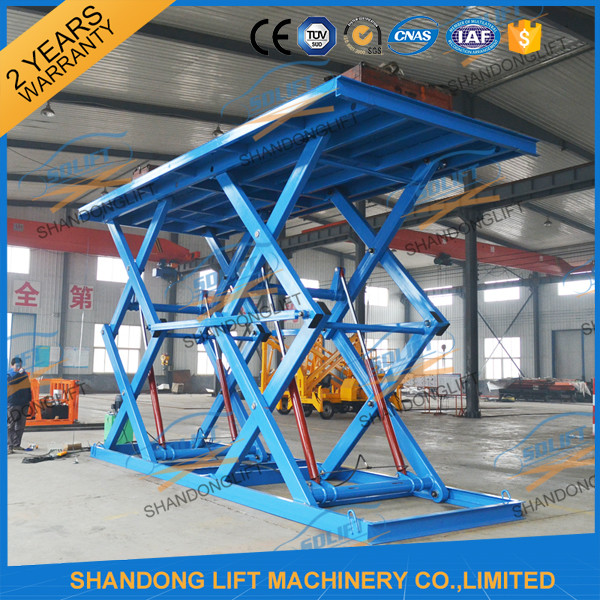

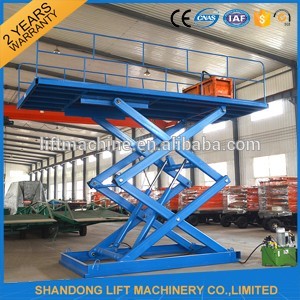

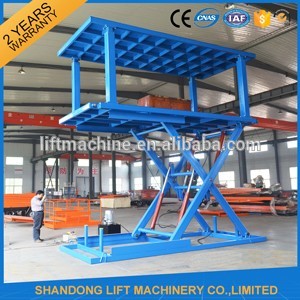

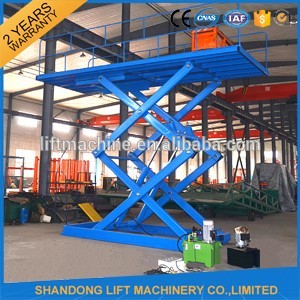

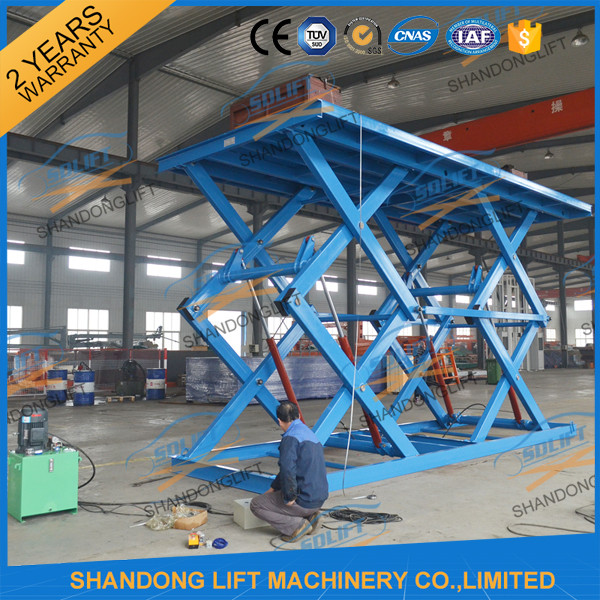

Production pictures:

In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage

In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage

In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage

The Certificates:

In Ground 3 ton Basement Hydraulic Car Scissor Lift for Home Garage

Our services:

1) We can design the customized hydraulic scissor car lift as per your requirement.

2) The hydraulic scissor car lift will be recommended once we got your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.

6 2 years warranty for whole machine without man-made faults.

7) We will send you parts for free if there are any non-human factors faults during warranty time.

8) Supply 24-hours technical assistance by email, telephone or other communication online.
