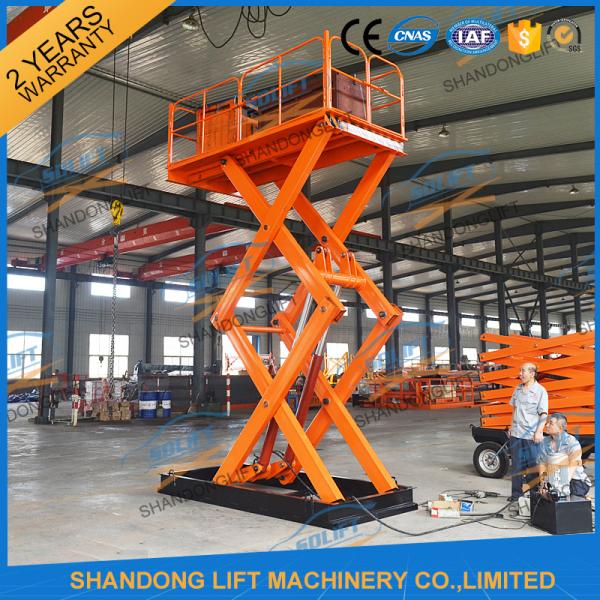

1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE
1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE
1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE
1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE
1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE
1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE
1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE
1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE
1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE
1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE
1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE
1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE
Specifications
Brand Name :
SDLIFT Or OEM
Model Number :
SJG1-5.5
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD2200- USD4800 / UNIT
Payment Terms :
T/T
Supply Ability :
1200units per year
Delivery Time :
30 days after deposit
Packaging Details :
Iron case or plywood case package
Application :
Hydraulic Electric Home Scissor Lift Platform
Lift height :
5500mm
Load capacity :
1000kgs
Lift Mechanism: Scissor Lift Lift Drive / Actuation: Hydraulic Power: 3.0kw Rated Loading :
scissor lift
Handrail :
2 sides or 4 sides
Color :
red, yellow, grey blue or Optional
Safe Device :
Explosion-Proof Lock Valve
Control mode :
Control panel and control box
Feature :
Easy Operation Safety Convenience
Description

Hydraulic Electric Home Scissor Lift Platform with CE

1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE

1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE

Application:

·The stationary hydraulic scissor lift platform can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.

·Load capacity: 300kg - 30000kg

Lift height: 1m - 12m

Platform size: as customized

The frequent models we supplied for our clients:

MODEL LOAD CAPACITY PLATFORM SIZE LIFT HEIGHT PIT DEPTH POWER
SJG0.3-2 0.3T 1.5m x 1.5m 2m 400mm 220V, 240V, 380V or 400V
SJG0.5-3 0.5T 2m x 1.8m 3m 500mm 220V, 240V, 380V or 400V
SJG2.5-5 2.5T 5.6m x 3m 5m 800mm 220V, 240V, 380V or 400V
SJG3-2.5 3T 5m x 2.3m 2.5m 750mm 220V, 240V, 380V or 400V
SJG3-3 3T 5.2m x 2.6m 3m 800mm 220V, 240V, 380V or 400V
SJG3-3.5 3T 5.6m x 2.7m 3.5m 800mm 220V, 240V, 380V or 400V
SJG5-10 5T 4.5m x 2.5m 10m 1150mm 220V, 240V, 380V or 400V
SJG8-2.5 8T 6.5m x 4.5m 2.5m 850mm 220V, 240V, 380V or 400V
SJG12-3 12T 5.5m x 2.8m 3m 950mm 220V, 240V, 380V or 400V
SJG15-4.5 15T 8m x 2.2m 4.5m 1150mm 220V, 240V, 380V or 400V
SJG20-5 20T 6m x 3m 5m 1200mm 220V, 240V, 380V or 400V
The hydraulic scissor lift can be customized as your detailed size.

Parts Showing:

1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE

Configuration:

1) Platform Material:120mm*60mm rectangular tube +4mm checkered anti-slip plate
2) Support scissors: 160mm*80mm*6mm high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or 220v or as your request
4) Hydraulic cylinder: 90*2sets high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: 45*2 hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.

7) Hydraulic pipe: high pressure pipe with double expanded metal protected

8) Hydraulic oil: summer 46#, winter 32#

9) Controller: 1 control box below, 1 hand controller above platform

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above the scissor lift .
3) Equipped 4 guide rails, to ensure the hydraulic scissor lift runs more smoothly and steadily.
4) The limit switch system helps the hydraulic scissor lift table to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the stationary hydraulic scissor lift are passed 1.2 times loading test before leaving factory.

Installation Showing:

Application fields
  • Warehouse
  • Feeding of processing machinery(in wood ,plastic,glass,steel)
  • Conveyor system,packaging system.
  • Loading bay.
  • Loading and unloading pallets for aircraft.
  • Connection between different stages.
  • Application fields

1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE

1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE

The workshop:

1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE

The packages into container:

1T 5.5M Hydraulic Electric Home Scissor Lift Platform With CE

Our services:

1) We can design the hydraulic scissor lift platform as per your requirement.

2) The exactly hydraulic scissor lift platform will be recommended to you once we get your requirement
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
