Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home
Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home
Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home
Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home
Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home
Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home
Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home
Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home
Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home
Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home
Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home
Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home
Specifications
Brand Name :
SDLIFT Or OEM
Model Number :
SJG3.5-3.5
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD7780- USD12800 / UNIT
Supply Ability :
1200 units per year
Delivery Time :
30 days
Packaging Details :
Iron case or plywood case package
Application :
Small Car Lift Hydraulic Car Parking System Outdoor Elevator For Home
Safe Device :
Explosion-Proof Lock Valve
Load capacity :
3000kgs / 3000kgs
Motor :
From Italy or Chinese famous brand
Material :
high strength Manganese Steel
Lift System :
Hydraulic cylinders
Power Supply :
220V/240V/380V/415V (as request)
Safety Trip Bar :
under platform
Description

Small Car Lift Hydraulic Car Parking System Outdoor Elevator For Home with CE

Parameters:

1) Load capacity: 3500kgs (lower platform)
3500kgs (upper platform)
2) Platform size: 5.7m x 2.7m (lower platform)
5.7m x 2.7m (upper platform)
3) Lift height: 3.5m
4) Height between platforms: 3.5m
5) Power: 380v/50hz/3ph/5.5kw (or 220v)
6) Control system: 1 control box, 1 control panel, 2 remotes
7) Control buttons: up, down, stop, emergency
8) Safety device: explosion-proof lock valve
9) Standard: CE, ISO9001

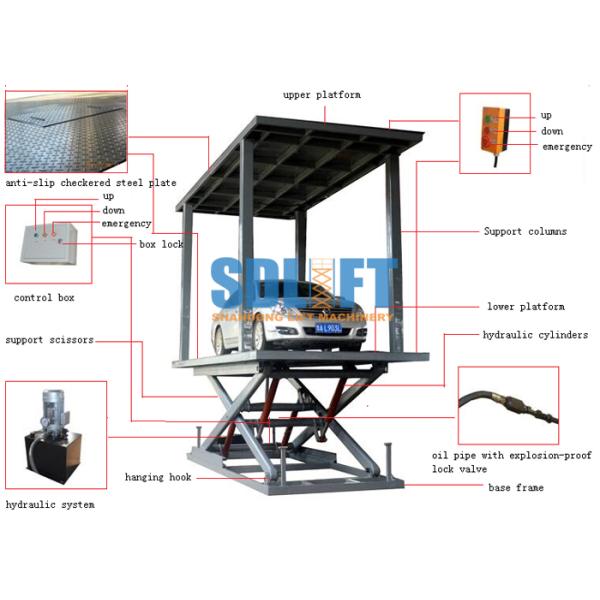

Sample Parts showing:

Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home

Configuration:

1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

2) Scissor material: 200mm*100mm*15mm high strength Manganese Steel.

3) Hydraulic system: 380V/5.5Kw

4) High Precision Hydraulic Cylinder: 100*4sets

5) Piston Rod: 70*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

Safety:


1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The limit switch system helps the hydraulic car parking system​ to stop at accurate position
3) Electricity leakage protection device is equipped on, all electric components are CE certified.
4) All the hydraulic car parking system are passed 1.2 times loading test before leaving factory.

The models we supplied for clients:

MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG2.5-3

2.5T

5.2m x 2.6m

3m

700mm

220V, 240V, 380V or 400V

SJG2-6.5

2T

5.2m x 2.8m

6.5m

750mm

220V, 240V, 380V or 400V

SJG2.5-3.5

2.5T

5.2m x 2.6m

3.5m

800mm

220V, 240V, 380V or 400V

SJG2.5-5

2.5T

5.6m x 3m

5m

750mm

220V, 240V, 380V or 400V

SJG3-2.5

3T

5m x 2.3m

2.5m

750mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

800mm

220V, 240V, 380V or 400V

SJG3-3.5

3T

5.6m x 2.7m

3.5m

800mm

220V, 240V, 380V or 400V

SJG5-10

5T

4.5m x 2.5m

10m

1150mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

850mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

950mm

220V, 240V, 380V or 400V

SJG15-4.5

15T

8m x 2.2m

4.5m

1050mm

220V, 240V, 380V or 400V

SJG20-5

20T

6m x 3m

5m

950mm

220V, 240V, 380V or 400V

The hydraulic car parking system can be customized as your detailed size.

Packaging & Shipping:

Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home

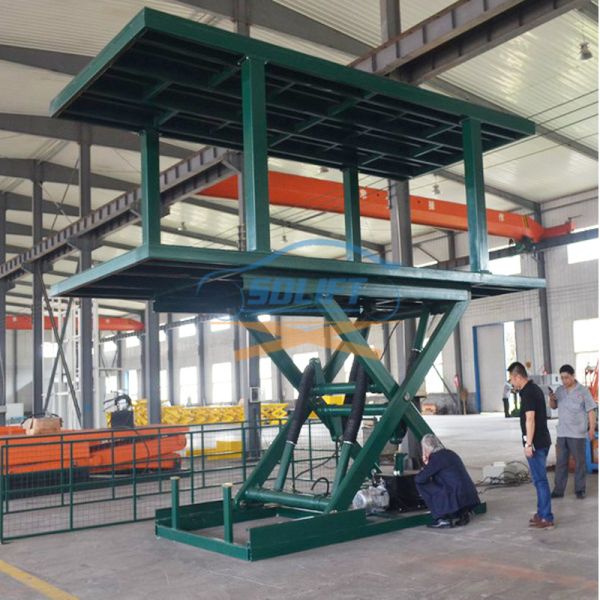

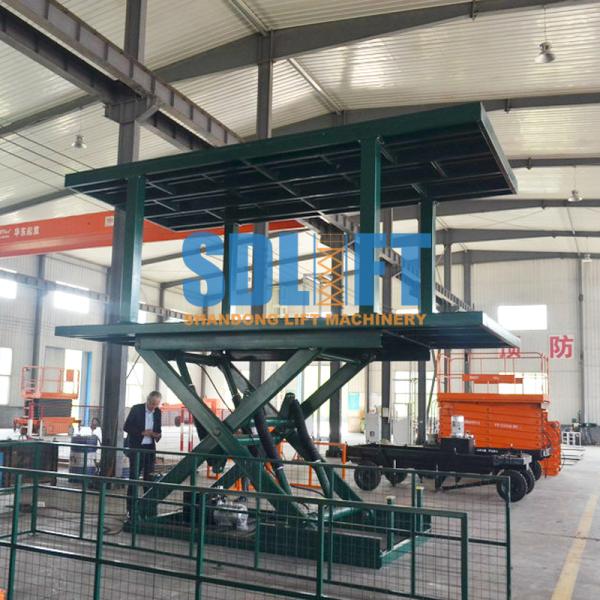

Production pictures:
​

Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home

Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home


CE Certificate:

Small Car Lift Hydraulic Car Lift Parking System Outdoor Elevator For Home
