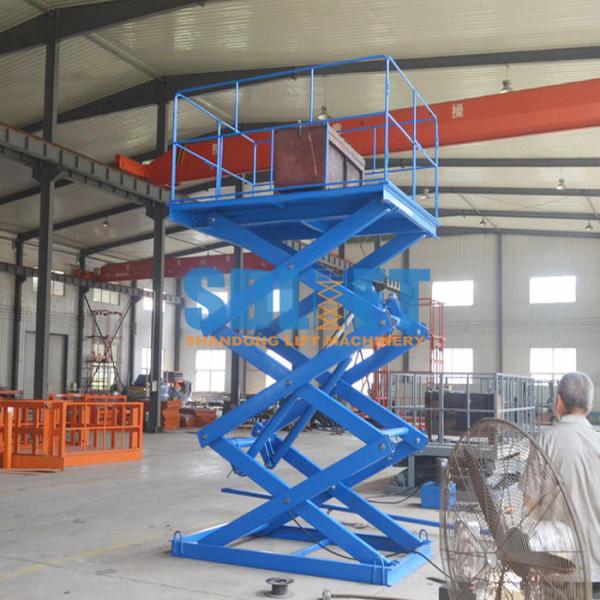

1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms
1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms
1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms
1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms
1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms
1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms
1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms
1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms
1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms
1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms
1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms
1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms
Specifications
Brand Name :
SDLIFT Or OEM
Model Number :
SJG1-3.5
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD2800- USD4800 / UNIT
Supply Ability :
1200 units per year
Delivery Time :
30 days
Packaging Details :
Iron case or plywood case package
Application :
hydraulic scissor cargo lift
Load capacity :
1000kgs
Control Panel :
Each floor
Lift System :
Hydraulic System
Safe Device :
Explosion-Proof Lock Valve
Control mode :
Control panel and control box
Lifting height :
3500mm
Platform size :
1800mm * 1400mm
Description

Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms with CE

· Parameters:

Load capacity: 1000kg

Lift height: 3500mm

Platform size: 1800mm x 1400mm

Power: 380v/50hz/3ph/3.0kw

· Configuration:

1) Platform Material: rectangular tube + checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.

7) Hydraulic pipe: high pressure pipe with double expanded metal protected

8) Hydraulic oil: summer 46#, winter 32#

9) Controller: 1 control box below, 1 hand controller above platform

· Service:

1) All machines sold must be tested before shipment, 100% quality.
2) 2 years warranty, with CE certification.
3) 24 hours technical support by email, telephone or video online.
4) User-friendly English manual for machine using and maintain.
5) Spare parts will be offered for free during warranty.
6) Professional design drawing can be designed and provided according to customer installation site.

· The models we supplied for clients:

MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG3-2.5

3T

2m x 3m

2.5m

500mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

750mm

220V, 240V, 380V or 400V

SJG3-5

3T

5.6m x 2.7m

5m

800mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

750mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

850mm

220V, 240V, 380V or 400V

SJG60-2.5

60T

8m x 2.2m

2.5m

950mm

220V, 240V, 380V or 400V

The Scissor Cargo Lift Hydraulic Scissor Lift can be customized as your detailed size.

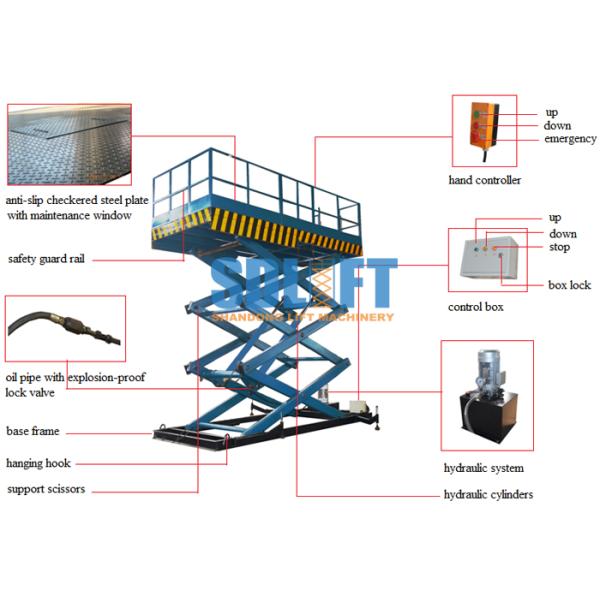

· The parts showing:

1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms

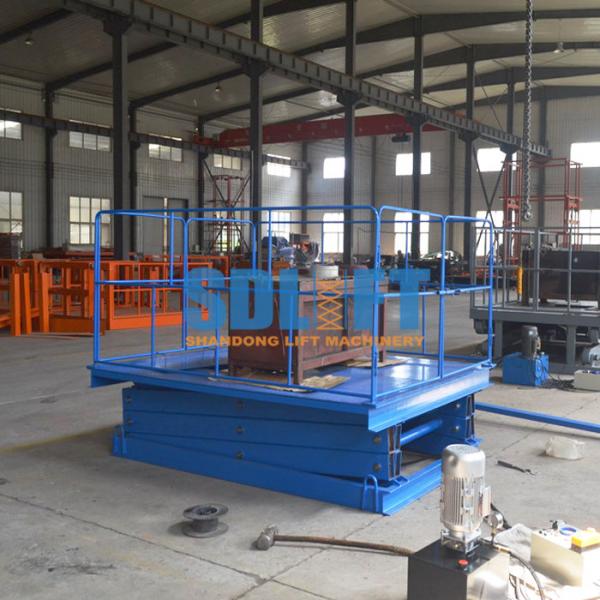

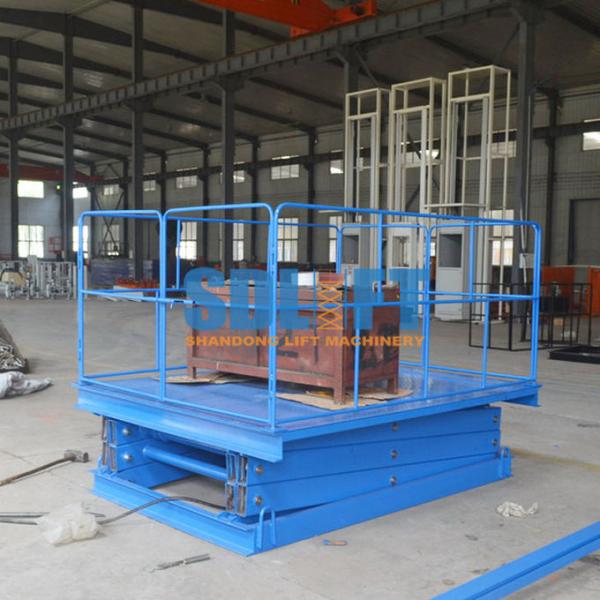

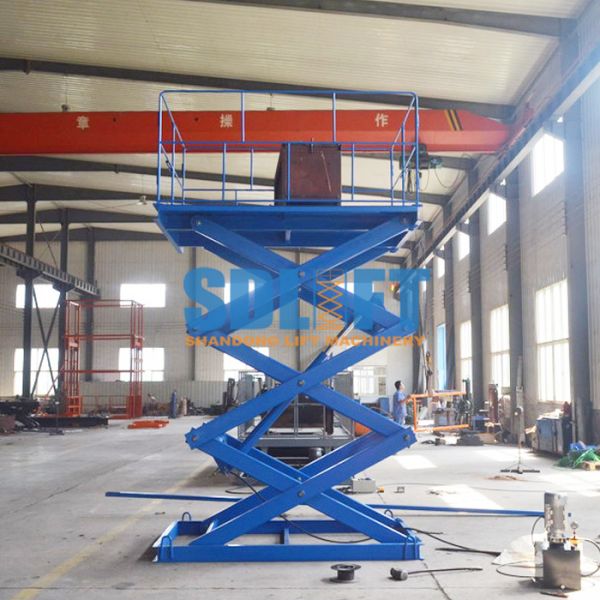

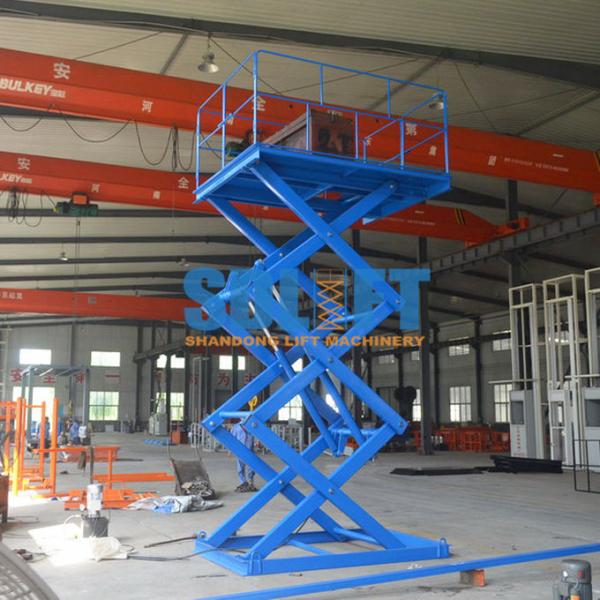

· The production showing:

1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms

1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms

1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms

· The customers visiting:

1T Stationary Hydraulic Scissor Lift Elevator , Pallet Scissor Lift Platforms
