1m - 12m Hydraulic Stair Wheelchair Platform Lift For The Old People With CE
1m - 12m Hydraulic Stair Wheelchair Platform Lift For The Old People With CE
1m - 12m Hydraulic Stair Wheelchair Platform Lift For The Old People With CE
1m - 12m Hydraulic Stair Wheelchair Platform Lift For The Old People With CE
1m - 12m Hydraulic Stair Wheelchair Platform Lift For The Old People With CE
1m - 12m Hydraulic Stair Wheelchair Platform Lift For The Old People With CE
1m - 12m Hydraulic Stair Wheelchair Platform Lift For The Old People With CE
1m - 12m Hydraulic Stair Wheelchair Platform Lift For The Old People With CE
Specifications
Brand Name :
SDLIFT
Model Number :
SJG0.25-2
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1unit
Price :
US1680- USD3800 / UNIT
Supply Ability :
1200units per year
Delivery Time :
20 working days
Packaging Details :
Iron case or nude
Usage :
Hydraulic stair wheelchair lifts for the old people
Three Control :
Easy to control lift
Lift height :
1m - 12m
Fixed ramp :
Easy on and off
Table Size :
1430mm(L) * 900mm(W) or as your request
Control :
Calling box and remote controller
Material :
Aluminum alloy with Powder coating
Emergency :
Lift can down by manual
Warning mark :
Remind people to be safe
Description

1m - 12m Hydraulic stair wheelchair lifts for the old people

with 2 Years Warranty:

Application:

Hydraulic stair wheelchair lift adopts new materialaluminium Alloy, which made the lift to be light weight, more​ durable and easy installation. It can easily lift the person and wheelchair with the capacity 250kg or more as your request.

It offers wheelchair users the opportunity to move freely within a multi-floored building​ while taking the wheelchair with them so they are fully independent between floors.

Product Description:

• Skidproof Platform Prevent tumble
• Powder-painting steel.
• Manual down valve on the motor.
• Control device: one on the platform, another installed on the wall nearby.
• Emergency stop: lifting and lowering process can be stopped immediately.
• Safety lock: use the key lock the platform when it is out of control.
• A small ramp on the entrance side, make access easier.

Products list:

Model Lifting height Load capacity Platform size Self weight Manual Door
SJG0.25-1 1000mm 250kg 1430*900mm 350kg Yes
SJG0.25-2 2000mm 250kg 1430*900mm 550kg Yes
SJG0.25-3 3000mm 250kg 1430*900mm 780kg Yes
SJG0.25-4 4000mm 250kg 1430*900mm 880kg Yes
SJG0.25-5 5000mm 250kg 1430*900mm 1000kg Yes
SJG0.25-6 6000MM 250kg 1430*900mm 1100kg Yes


Lifting height can be customized as your parameters.

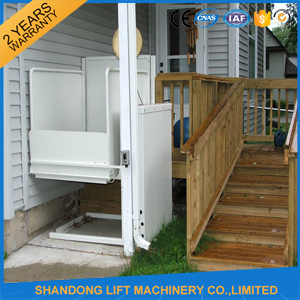

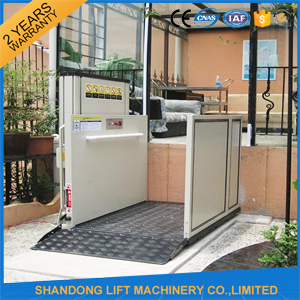

Installation pictures:

1m - 12m Hydraulic Stair Wheelchair Platform Lift For The Old People With CE

1m - 12m Hydraulic Stair Wheelchair Platform Lift For The Old People With CE

1m - 12m Hydraulic Stair Wheelchair Platform Lift For The Old People With CE
