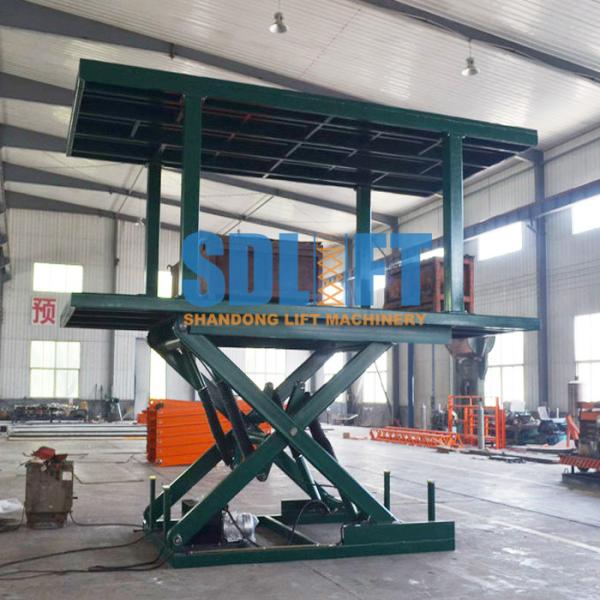

electric Double Deck Car Parking System for Car Parking

The frequent models we supplied for our clients:

Configuration:

1) Load capacity: 3000kgs (below platform)
3000kgs (upper platform)
2) Platform size: 5.2m x 2.6m (below platform)
5.2m x 2.6m (upper platform)
3) Lift height: 3m
4) Height between platforms: 3m
5) Platform Material:120mm*60mm rectangular tube +6mm checkered iron
6) Scissor material: 200mm*100mm*15mm high strength Manganese Steel.
7) Hydraulic system: 380V/5.5Kw
8) High Precision Hydraulic Cylinder: 110*4sets
9) Piston Rod: 80*4 hard chromium plating surface.
10) High-pressure oil pump
11) Hydraulic oil: summer 46#, winter 32#
12) Controller: 1 control box below, 1 control panel above platform

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The limit switch system helps the double deck car parking system to stop at accurate position.
3) Electricity leakage protection device is equipped on , all electric components are CE certified.
4) All the double deck car parking system are passed 1.2 times loading test before leaving factory.

Products Showing:

The workshops:

The Packing & Loading container:

The Customers visiting:

The Certificate:

Our services:

1) We can design the double deck car parking system as per your requirement.
2) The most suitable double deck car parking system will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
