Anti Skid Checkered Plate Stainless Steel Scissor Lift , Fixed Cargo Stationary Hydraulic Lift Platform
Anti Skid Checkered Plate Stainless Steel Scissor Lift , Fixed Cargo Stationary Hydraulic Lift Platform
Anti Skid Checkered Plate Stainless Steel Scissor Lift , Fixed Cargo Stationary Hydraulic Lift Platform
Anti Skid Checkered Plate Stainless Steel Scissor Lift , Fixed Cargo Stationary Hydraulic Lift Platform
Anti Skid Checkered Plate Stainless Steel Scissor Lift , Fixed Cargo Stationary Hydraulic Lift Platform
Anti Skid Checkered Plate Stainless Steel Scissor Lift , Fixed Cargo Stationary Hydraulic Lift Platform
Specifications
Brand Name :
SDLIFT
Model Number :
SJG4-4.8
Certification :
CE
Place of Origin :
Jinan, Shandong, China
MOQ :
1UNIT
Price :
USD 2000 - 6000 / unit
Supply Ability :
3000units / year
Delivery Time :
5-15 DAYS
Packaging Details :
Iron case or plywood case package
Type :
hydraulic scissor lift for cargo
Platform size :
3.6m x 2m
Loading capacity :
4000kgs
Travel height :
4800mm
Platform :
Anti-skid Checkered Plate
Motor :
from italy or Chinese famous brand
Package :
Iron case or plywood case package
Safety device :
explosion proof lock valve, emergency
Warranty :
2 Years
Color :
Orange Bule Grey as Requests
Voltage :
110v 220v 240v 380v Optional
Lift Drive / Actuation :
Hydraulic + Electric Control
Material :
High Strength Manganese Steel
Description

Fixed Cargo Stationary Hydraulic Scissor Lift Table

4000kgs 4800mm Travel Height​:

Features:

1 High-strength steel structure or steel structure

2 Specifications matching customers' needs

3 Mode of operation is flexible.

The Stationary Hydraulic Scissor Lift use a steel frame structure or high-strength steel structure bearing capacity from 0.5 to 200 tons, and product size and equipment size can be customized according to user needs. Mode of operation can be divided into upper and lower control and ground control of a single person and can also be multi-layer control, flipping spin control.

Safety Precaution:

1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.

In order to meet your requirements well, may I know your lift requirements as follows
1. lift height
2. load capacity
3. platform size
Or may I know your purpose for the lift? We could recommend the suitable lift for you.
All the lift are produced according to customer requirements

The models we supplied for clients:

MODEL

LOAD

CAPACITY

PLATFORM

SIZE

LIFT

HEIGHT

PIT

DEPTH

POWER

SJG2.5-3

2.5T

5.2m x 2.6m

3m

750mm

220V, 240V, 380V or 400V

SJG2-6.5

2T

5.2m x 2.8m

6.5m

800mm

220V, 240V, 380V or 400V

SJG2.5-3.5

2.5T

5.2m x 2.6m

3.5m

800mm

220V, 240V, 380V or 400V

SJG2.5-5

2.5T

5.6m x 3m

5m

800mm

220V, 240V, 380V or 400V

SJG3-2.5

3T

5m x 2.3m

2.5m

750mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

800mm

220V, 240V, 380V or 400V

SJG3-3.5

3T

5.6m x 2.7m

3.5m

800mm

220V, 240V, 380V or 400V

SJG5-10

5T

4.5m x 2.5m

10m

1150mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

850mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

950mm

220V, 240V, 380V or 400V

SJG15-4.5

15T

8m x 2.2m

4.5m

1150mm

220V, 240V, 380V or 400V

SJG20-5

20T

6m x 3m

5m

1200mm

220V, 240V, 380V or 400V

The Stationary Hydraulic Scissor Lift can be customized as your detailed size.

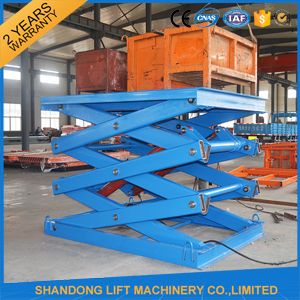

The Products showing:

Anti Skid Checkered Plate Stainless Steel Scissor Lift , Fixed Cargo Stationary Hydraulic Lift Platform Anti Skid Checkered Plate Stainless Steel Scissor Lift , Fixed Cargo Stationary Hydraulic Lift Platform

The certificates:

Anti Skid Checkered Plate Stainless Steel Scissor Lift , Fixed Cargo Stationary Hydraulic Lift Platform

Our services:

1) We can design the customerized hydraulic scissor car lift as per your requirement.

2) The most suitable hydraulic scissor car lift will be recommended to you once we got your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.

6) 2 years warranty for whole machine without man-made faults.

7) We will send you parts for free if there are any non-human factors faults during warranty time.

8) Supply 24-hours technical assistance by email, telephone or other communication online.

9) We could reply you in 2 hours after received your any questions even on weekend and holiday.

Engineers are available to your country if necessary.

Anti Skid Checkered Plate Stainless Steel Scissor Lift , Fixed Cargo Stationary Hydraulic Lift Platform
