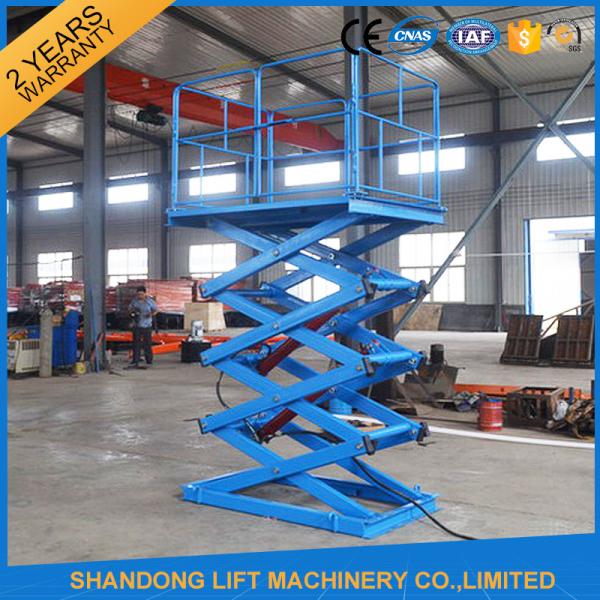

CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift For Warehouse Cargo Loading
CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift For Warehouse Cargo Loading
CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift For Warehouse Cargo Loading
CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift For Warehouse Cargo Loading
CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift For Warehouse Cargo Loading
CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift For Warehouse Cargo Loading
Specifications
Brand Name :
SDLIFT
Model Number :
SJG0.5-3
Certification :
CE
Place of Origin :
Jinan, Shandong, China
MOQ :
1UNIT
Price :
negotiation
Payment Terms :
T/T or L/C
Supply Ability :
3,000pcs per year
Delivery Time :
5-15 DAYS
Packaging Details :
solid iron case or plywood case package or as your requirments
Lift Mechanism :
Scissor Lift
Lift Drive / Actuation :
Electirc + Hydraulic
Power :
2.2kw
Rated Loading Capacity :
500kgs
miin. Lifting Height :
500mm
Max. Lifting Height :
3000mm
Table Size :
1500x1500mm
Weight :
800kgs
Application :
Warehouse hydraulic scissor lift for cargo lifting
Material :
High Strength Manganese Steel
Platform :
Anti-skid Checkered Plate
safety device :
explosion-proof lock valve
Description

CE Electric Stationary Hydraulic Scissor Lift for Warehouse

Cargo Loading

Application:

The stationary hydraulic scissor lift can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.

Operation is easy. There are 2 sets control system installed on the lift, 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.

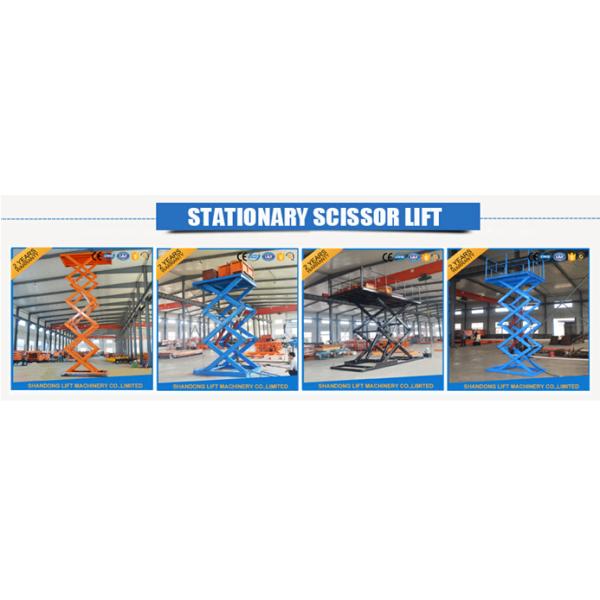

Stationary hydraulic scissor lift:

CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift For Warehouse Cargo Loading

The frequent models we supplied for our clients:

MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG0.3-2

0.3T

1.5m x 1.5m

2m

400mm

220V, 240V, 380V or 400V

SJG0.5-3

0.5T

2m x 1.8m

3m

500mm

220V, 240V, 380V or 400V

SJG1-4.5

1T

2.1m x 1.5m

4.5m

650mm

220V, 240V, 380V or 400V

SJG1.5-4

1.5T

2.2m x 1.6m

4m

600mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

800mm

220V, 240V, 380V or 400V

SJG3-3.5

3T

5.6m x 2.7m

3.5m

800mm

220V, 240V, 380V or 400V

SJG5-10

5T

4.5m x 2.5m

10m

1150mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

850mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

950mm

220V, 240V, 380V or 400V

SJG15-4.5

15T

8m x 2.2m

4.5m

1150mm

220V, 240V, 380V or 400V

SJG20-5

20T

6m x 3m

5m

1200mm

220V, 240V, 380V or 400V

The stationary hydraulic scissor lift can be customized as your detailed size.

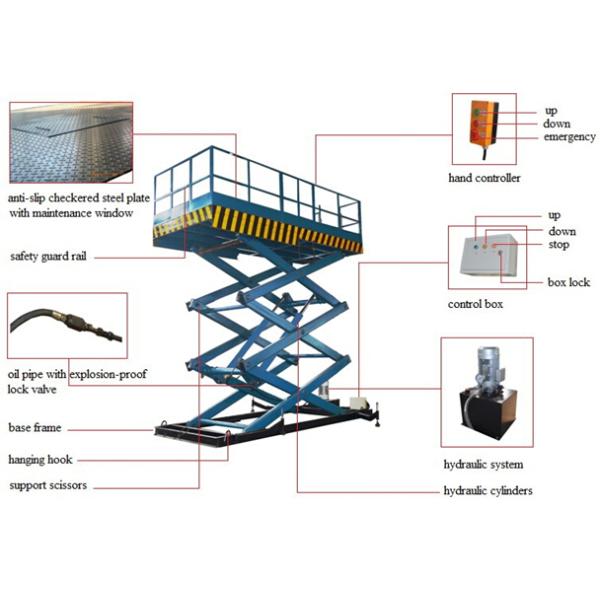

Parts showing:

CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift For Warehouse Cargo Loading

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above lift platform.
3) Equipped 4 guide rails, to ensure the stationary hydraulic scissor lift runs more smoothly and steadily.
4) The limit switch system helps the stationary hydraulic scissor lift to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the stationary hydraulic scissor lift are passed 1.2 times loading test before leaving factory.

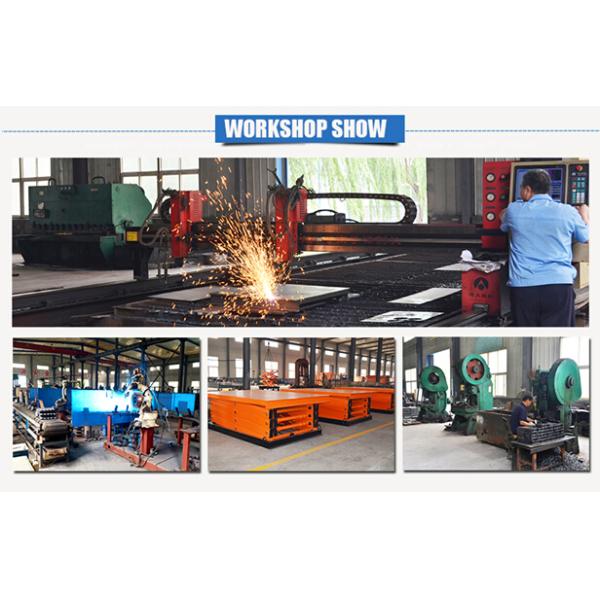

The workshops:

CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift For Warehouse Cargo Loading

The customers visiting:

CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift For Warehouse Cargo Loading

Our Certificates:

CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift For Warehouse Cargo LoadingOur Services:

  • User-friendly English manual for machine installation using and maintenance.
  • 2 year warranty for whole machine without man-made faults.
  • 2 sets spare parts as additional and free for you together with lift in shipment.
  • We will send you parts for free if there are any non-human factors faults during warranty time.
  • Supply 24-hours technical assistance by email, telephone or other communication online.
  • Engineers are available to your country if necessary.
