Warehouse / Factory / Garage Stationary Hydraulic Scissor Lift
Warehouse / Factory / Garage Stationary Hydraulic Scissor Lift
Warehouse / Factory / Garage Stationary Hydraulic Scissor Lift
Warehouse / Factory / Garage Stationary Hydraulic Scissor Lift
Warehouse / Factory / Garage Stationary Hydraulic Scissor Lift
Warehouse / Factory / Garage Stationary Hydraulic Scissor Lift
Warehouse / Factory / Garage Stationary Hydraulic Scissor Lift
Warehouse / Factory / Garage Stationary Hydraulic Scissor Lift
Warehouse / Factory / Garage Stationary Hydraulic Scissor Lift
Warehouse / Factory / Garage Stationary Hydraulic Scissor Lift
Specifications
Brand Name :
SDLIFT Or OEM
Model Number :
SJG
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD9800- USD18000 / UNIT
Payment Terms :
T/T
Supply Ability :
1200 units per year
Delivery Time :
30 days
Packaging Details :
Iron case or plywood case package
Application :
Heavy Duty Hydraulic Scissor Lift Warehouse Cargo Lift
Type :
4 cylinders hydraulic scissor lift
Load weight :
1ton-50tons
Lift height :
1-12m
Safe Device :
Explosion-Proof Lock Valve
Surface Treatment :
high-grade anti-corrosion painting
Description

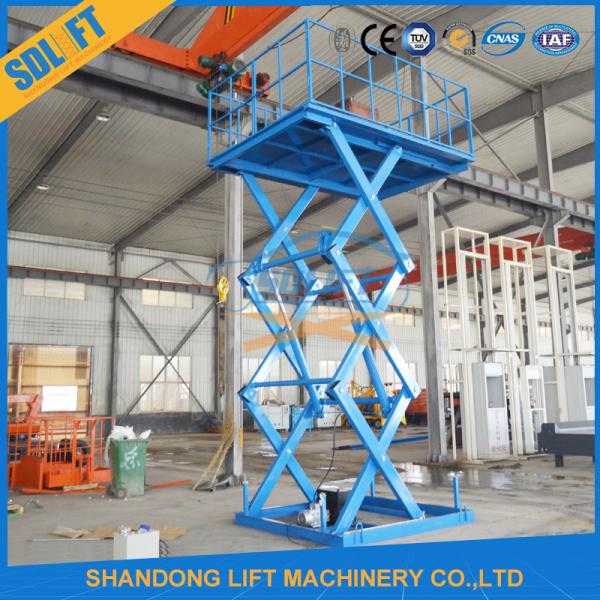

Warehouse / Factory / Garage Stationary Hydraulic Scissor Lift:

· Parameters:

Load capacity: 1ton-50tons

Lift height: 1-12m

Platform size: as requests

Power: 220v/380v/400v/415v or as request

This kind of Double scissors Stationary Hydraulic Scissor Lift adopts much more stronger Mn steel material to improve the load capacity and lifting height. The platform size, lift height and load capacity can be customized as per your request.
The load capacity can be from 1,000KG to 50,000KG, and lifting height is from 1m to 12m.

· Configuration:

1) Platform Material: rectangular tube + checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.

7) Hydraulic pipe: high pressure pipe with double expanded metal protected

8) Hydraulic oil: summer 46#, winter 32#

9) Controller: 1 control box, 1 hand controller, 2 remotes

· The frequent models we supplied for our clients:

MODEL

 LOAD CAPACITY PLATFORM SIZE LIFT HEIGHT PIT DEPTH POWER
SJG0.3-2 0.3T 1.5m x 1.5m 2m 400mm 220V, 240V, 380V or 400V
SJG0.5-3 0.5T 2m x 1.8m 3m 500mm 220V, 240V, 380V or 400V
SJG1-4.5 1T 2.1m x 1.5m 4.5m 650mm 220V, 240V, 380V or 400V
SJG1.5-4 1.5T 2.2m x 1.6m 4m 600mm 220V, 240V, 380V or 400V
SJG2-6.5 2T 5.2m x 2.8m 6.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-3 2.5T 5.2m x 2.6m 3m 750mm 220V, 240V, 380V or 400V
SJG2.5-3.5 2.5T 5.2m x 2.6m 3.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-5 2.5T 5.6m x 3m 5m 800mm 220V, 240V, 380V or 400V
SJG3-2.5 3T 5m x 2.3m 2.5m 750mm 220V, 240V, 380V or 400V
SJG3-3 3T 5.2m x 2.6m 3m 800mm 220V, 240V, 380V or 400V
SJG3-3.5 3T 5.6m x 2.7m 3.5m 800mm 220V, 240V, 380V or 400V
SJG5-10 5T 4.5m x 2.5m 10m 1150mm 220V, 240V, 380V or 400V
SJG8-2.5 8T 6.5m x 4.5m 2.5m 850mm 220V, 240V, 380V or 400V
SJG12-3 12T 5.5m x 2.8m 3m 950mm 220V, 240V, 380V or 400V
SJG15-4.5 15T 8m x 2.2m 4.5m 1150mm 220V, 240V, 380V or 400V
SJG20-5 20T 6m x 3m 5m 1200mm 220V, 240V, 380V or 400V

The hydraulic warehouse elevator lift can be customized as your detailed size.

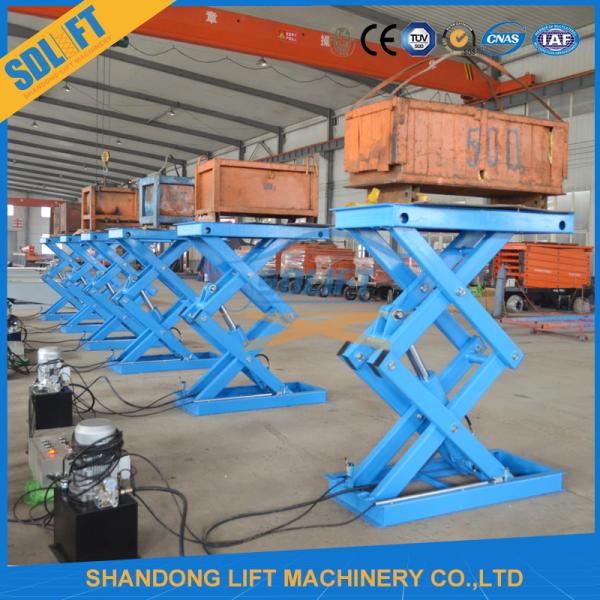

· Finished products in our factory:

Warehouse / Factory / Garage Stationary Hydraulic Scissor LiftWarehouse / Factory / Garage Stationary Hydraulic Scissor LiftWarehouse / Factory / Garage Stationary Hydraulic Scissor LiftWarehouse / Factory / Garage Stationary Hydraulic Scissor LiftWarehouse / Factory / Garage Stationary Hydraulic Scissor Lift

· Service:

1) All Hydraulic Scissor Lifts sold must be 1.2 times tested before shipment, 100% quality.
2) 2 years warranty, with CE certification.
3) 24 hours technical support by email, telephone or video online.
4) User-friendly English manual for machine using and maintain.
5) Spare parts will be offered for free during warranty.
6) Professional design drawing can be designed and provided according to customer installation site.

· CE Certificate:

Warehouse / Factory / Garage Stationary Hydraulic Scissor Lift

· Customers visiting in our factory:

Warehouse / Factory / Garage Stationary Hydraulic Scissor Lift

· Contact us:

General Manager : Owen Li

Shandong Lift Machinery Co., Ltd.

Address: No. 1677, Jinan Area of China (Shandong) Pilot Free Trade Zone, Shandong, China

Tel: 86-531-85882730 / 66957937 Fax: 86-531-66957937

Mobile / WhatsApp: +86 13969113583 Skype: shandonglift
