Specifications
Brand Name :
SDLIFT Or OEM
Model Number :
SJG3-2.5
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD7800- USD13800 / UNIT
Payment Terms :
T/T
Supply Ability :
1200 units per year
Delivery Time :
30 days after deposit
Packaging Details :
Iron case or plywood case package
Usage :
vehicle scissor lift portable home car lift for garage
Controls :
2 remotes, 1 control box, 1 upper control
Load capacity :
3000kgs / 3000kgs
Lift height :
2500mm
Platform size :
5200mm x 2600mm
Safety Device :
Explosion Proof Lock Valve
Description

vehicle scissor lift portable home car lift for garage with CE

Application:

- The portable home car lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.

- Operation is easy. There are 2 sets control system installed on the portable car lift, 1 control box below, and 1 hand controller and 2 remotes.

Sample Parts showing:

3tonne 2.5m Hydraulic Scissor Car Lift Vehicle Portable For Home Garage

Parameters:

1) Load capacity: 3000kgs (lower platform)
3000kgs (upper platform)
2) Platform size: 5.2m x 2.6m (lower platform)
5.2m x 2.6m (upper platform)
3) Lift height: 2.5m
4) Height between platforms: 2.5m
5) Power: 380v/50hz/3ph/5.5kw (or 220v)
6) Control system: 1 control box, 1 control panel, 2 remotes
7) Control buttons: up, down, stop, emergency
8) Safety device: explosion-proof lock valve
9) Standard: CE, ISO9001​

Configuration:

1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

2) Scissor material: 200mm*100mm*15mm high strength Manganese Steel.

3) Hydraulic system: 380V/5.5Kw

4) High Precision Hydraulic Cylinder: 100*4sets

5) Piston Rod: 70*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

Advantages:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The limit switch system helps the vehicle scissor lift to stop at accurate position.

3) Electricity leakage protection device is equipped on, all electric components are CE certified.

4) All the portable home car lift for garages are passed 1.2 times loading test before leaving factory.

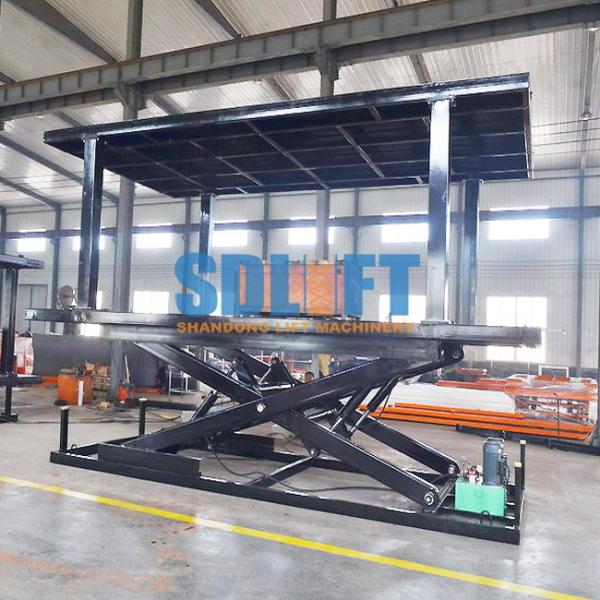

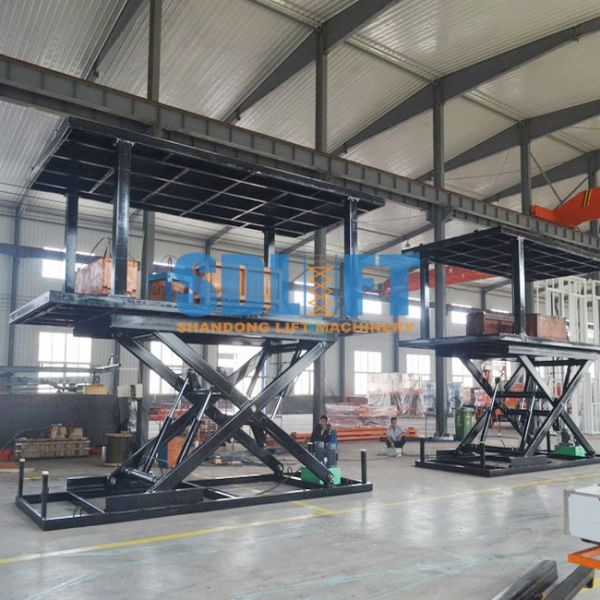

Production pictures:​

3tonne 2.5m Hydraulic Scissor Car Lift Vehicle Portable For Home Garage3tonne 2.5m Hydraulic Scissor Car Lift Vehicle Portable For Home Garage3tonne 2.5m Hydraulic Scissor Car Lift Vehicle Portable For Home Garage

Product List:

MODEL LOAD CAPACITY PLATFORM SIZE LIFT HEIGHT PIT DEPTH POWER
SJG2.5-3 2.5T 5.2m x 2.6m 3m 750mm 220V, 240V, 380V or 400V
SJG2-6.5 2T 5.2m x 2.8m 6.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-3.5 2.5T 5.2m x 2.6m 3.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-5 2.5T 5.6m x 3m 5m 800mm 220V, 240V, 380V or 400V
SJG3-2.5 3T 5m x 2.3m 2.5m 750mm 220V, 240V, 380V or 400V
SJG3-3 3T 5.2m x 2.6m 3m 800mm 220V, 240V, 380V or 400V
SJG3-3.5 3T 5.6m x 2.7m 3.5m 800mm 220V, 240V, 380V or 400V
SJG5-10 5T 4.5m x 2.5m 10m 1150mm 220V, 240V, 380V or 400V
SJG8-2.5 8T 6.5m x 4.5m 2.5m 850mm 220V, 240V, 380V or 400V
SJG12-3 12T 5.5m x 2.8m 3m 950mm 220V, 240V, 380V or 400V
SJG15-4.5 15T 8m x 2.2m 4.5m 1150mm 220V, 240V, 380V or 400V
SJG20-5 20T 6m x 3m 5m 1200mm 220V, 240V, 380V or 400V

Loading into container in our factory:

3tonne 2.5m Hydraulic Scissor Car Lift Vehicle Portable For Home Garage

3tonne 2.5m Hydraulic Scissor Car Lift Vehicle Portable For Home Garage

3tonne 2.5m Hydraulic Scissor Car Lift Vehicle Portable For Home Garage

CE Certificate:

3tonne 2.5m Hydraulic Scissor Car Lift Vehicle Portable For Home Garage

Our service:

1) We can design the portable home car lift for garage as per your requirement.
2) The portable home car lift for garage will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
