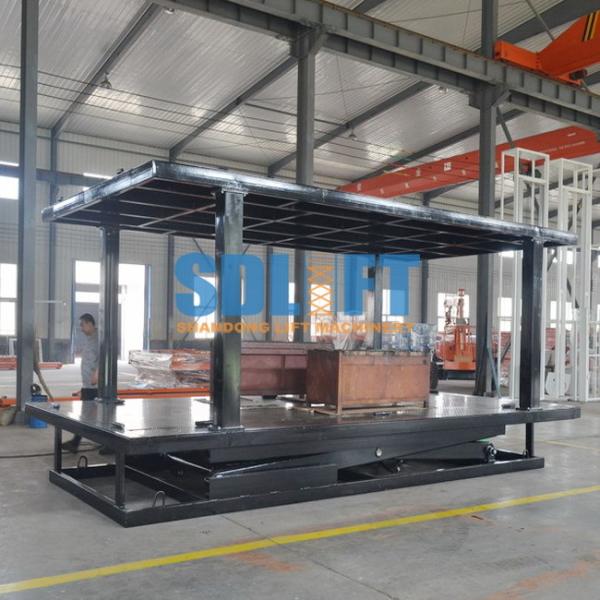

Portable Automotive 3M 3T Scissor Lift For Car Parking
Portable Automotive 3M 3T Scissor Lift For Car Parking
Portable Automotive 3M 3T Scissor Lift For Car Parking
Portable Automotive 3M 3T Scissor Lift For Car Parking
Portable Automotive 3M 3T Scissor Lift For Car Parking
Portable Automotive 3M 3T Scissor Lift For Car Parking
Portable Automotive 3M 3T Scissor Lift For Car Parking
Portable Automotive 3M 3T Scissor Lift For Car Parking
Portable Automotive 3M 3T Scissor Lift For Car Parking
Portable Automotive 3M 3T Scissor Lift For Car Parking
Portable Automotive 3M 3T Scissor Lift For Car Parking
Portable Automotive 3M 3T Scissor Lift For Car Parking
Specifications
Brand Name :
SDLIFT Or OEM
Model Number :
SJG3-3
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD7800- USD13800 / UNIT
Payment Terms :
T/T
Supply Ability :
1200 units per year
Delivery Time :
30 days after deposit
Packaging Details :
Iron case or plywood case package
Application :
utomotive scissor lift equipment for car parking
Controls :
2 remotes, 1 control box, 1 upper control
Load capacity :
3000kgs / 3000kgs
Lift height :
3000mm
Platform size :
5600mm x 2800mm, or can be customized
Safety Device :
Explosion Proof Lock Valve
Description

3T 3M Portable Automotive Scissor Lift Equipment For Car Parking With CE

portable automotive scissor lift equipment for car parking with CE

Parameters:

1) Load capacity: 3000kgs (lower platform)
3000kgs (upper platform)
2) Platform size: 5.6m x 2.8m (lower platform)
5.6m x 2.8m (upper platform)
3) Lift height: 3m
4) Height between platforms: 3m
5) Power: 380v/50hz/3ph/5.5kw (or 220v)
6) Control system: 1 control box, 1 control panel, 2 remotes
7) Control buttons: up, down, stop, emergency
8) Safety device: explosion-proof lock valve
9) Standard: CE, ISO9001​

Sample Parts showing:

Portable Automotive 3M 3T Scissor Lift For Car Parking

Installation sites:
Portable Automotive 3M 3T Scissor Lift For Car Parking
Portable Automotive 3M 3T Scissor Lift For Car Parking

Production pictures:​

Portable Automotive 3M 3T Scissor Lift For Car Parking

Portable Automotive 3M 3T Scissor Lift For Car Parking

Product List:

MODEL LOAD CAPACITY PLATFORM SIZE LIFT HEIGHT PIT DEPTH POWER
SJG2.5-3 2.5T 5.2m x 2.6m 3m 750mm 220V, 240V, 380V or 400V
SJG2-6.5 2T 5.2m x 2.8m 6.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-3.5 2.5T 5.2m x 2.6m 3.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-5 2.5T 5.6m x 3m 5m 800mm 220V, 240V, 380V or 400V
SJG3-2.5 3T 5m x 2.3m 2.5m 750mm 220V, 240V, 380V or 400V
SJG3-3 3T 5.2m x 2.6m 3m 800mm 220V, 240V, 380V or 400V
SJG3-3.5 3T 5.6m x 2.7m 3.5m 800mm 220V, 240V, 380V or 400V
SJG5-10 5T 4.5m x 2.5m 10m 1150mm 220V, 240V, 380V or 400V
SJG8-2.5 8T 6.5m x 4.5m 2.5m 850mm 220V, 240V, 380V or 400V
SJG12-3 12T 5.5m x 2.8m 3m 950mm 220V, 240V, 380V or 400V
SJG15-4.5 15T 8m x 2.2m 4.5m 1150mm 220V, 240V, 380V or 400V
SJG20-5 20T 6m x 3m 5m 1200mm 220V, 240V, 380V or 400V

Advantages:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The limit switch system helps automotive scissor lift equipment to stop at accurate position.

3) Electricity leakage protection device is equipped on, all electric components are CE certified.

4) All the automotive scissor lift equipments are passed 1.2 times loading test before leaving factory.

CE Certificate:

Portable Automotive 3M 3T Scissor Lift For Car Parking

Our service:

1) We can design the Hydraulic Car lift as per your requirement.
2) The Hydraulic Car lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.

Contact us:

Joyce Zhang
-------------------------------------------
Shandong Lift Machinery Co., Ltd.
Tel: 86-531-85882730 Fax: 86-531-62321282
Mobile/wechat: 86-15953178102
Mail: sale01@shandonglift.com
http: www.scissorslifttable.com
-------------------------------------------
