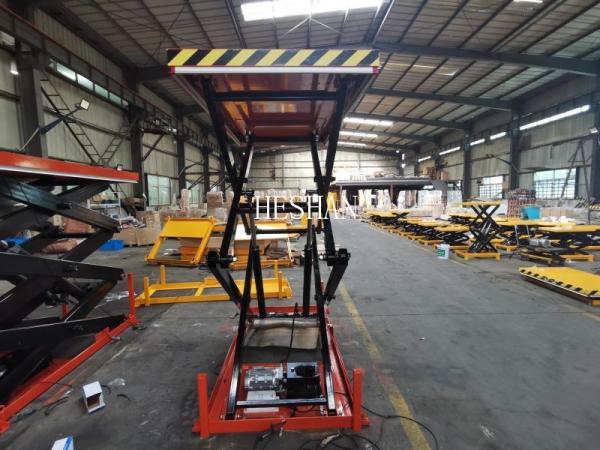

3m Stationary Three Scissors Hydraulic Lift Tables 4000kg Table Lift Mechanism
3m Stationary Three Scissors Hydraulic Lift Tables 4000kg Table Lift Mechanism
3m Stationary Three Scissors Hydraulic Lift Tables 4000kg Table Lift Mechanism
3m Stationary Three Scissors Hydraulic Lift Tables 4000kg Table Lift Mechanism
Specifications
Brand Name :
HESHAN
Model Number :
SLT
Certification :
CE,ISO,SGS,ROHS
Place of Origin :
China
MOQ :
1 unit
Price :
USD 900-USD 4000/unit
Payment Terms :
T/T, Western Union
Supply Ability :
1000/units per month
Delivery Time :
15-20 work days
Packaging Details :
Plywood case package
Application :
Hydraulic Electric Scissor Lift
Load Capacityy :
1000kg,2000kg,3000kg,4000kg
Platform Size :
2000*1700mm
Voltage :
110v 220v 240v 380v optional
Color :
Customized
Feature :
Easy Operation Safety Convenience
Warranty :
2 Years
After-sales service provided :
Free spare parts,Video technical support
Description

3m Stationary Three Scissors Hydraulic Lift Tables 4000kg Table Lift Mechanism

Scissor lift tables are an indispensable tool in various industrial, construction, and manufacturing settings. These tables are designed to lift and place heavy loads in areas that are difficult to access and have limited space. With its adjustable height feature, scissor lift tables provide a safe and stable platform for handling loads.
One of the major advantages of using a scissor lift table is its versatility. It can perform a wide range of tasks, from lifting and positioning hefty machinery to transporting goods within a warehouse. To enhance its functionality and make it more suitable for specific tasks, the table can be equipped with a variety of accessories, including casters, conveyors, and workstations.
Table Lift Mechanism is an essential equipment that offers efficient and safe handling of heavy loads, making it an ideal choice for industries that require material handling solutions. Its flexibility and adaptability make it a valuable asset for any workspace that needs to optimize its lifting and positioning processes.

Basic Parameter:

  • Load range: 1000kg~4000kg. Or customized according to customer requirements.
  • Platform Size: standard parameters or special customization.
  • Maximum lifting height: customized.

Standard Hysraulic Electric Scissor Lift Tbale Parameters:

(Can be customized if special size or requirement)

Model Load Capacity(KG) Self Height(MM) Max Platform Height(MM) Platform Size(MM) Base Size(MM) Lifting time(s) Motor(KW) Net weight(KG)
SLT01 1000 205 1000 1300×820 1240×640 20~25 1.1 160
SLT02 1000 205 1000 1600×1000 1240×640 20~25 1.1 186
SLT03 1000 240 1300 1700×850 1580×640 30~35 1.1 200
SLT04 1000 240 1300 1700×1000 1580×640 30~35 1.1 210
SLT05 1000 240 1300 2000×850 1580×640 30~35 1.1 212
SLT06 1000 240 1300 2000×1000 1580×640 30~35 1.1 223
SLT07 1000 240 1300 1700×1500 1580×1320 30~35 1.1 365
SLT08 1000 240 1300 2000×1700 1580×1320 30~35 1.1 430
SLT2001 2000 230 1000 1300×850 1220×785 20~25 1.5 235
SLT2002 2000 230 1050 1600×1000 1280×785 20~25 1.5 268
SLT2003 2000 250 1300 1700×850 1600×785 25~35 2.2 289
SLT2004 2000 250 1300 1700×1000 1600×785 25~35 2.2 300
SLT2005 2000 250 1300 2000×850 1600×785 25~35 2.2 300
SLT2006 2000 250 1300 2000×1000 1600×785 25~35 2.2 315
SLT2007 2000 250 1400 1700×1500 1600×1435 25~35 2.2 415
SLT2008 2000 250 1400 2000×1800 1600×1435 25~35 2.2 500
SLT4001 4000 240 1050 1700×1200 1600×900 30~40 2.2 375
SLT4002 4000 240 1050 2000×1200 1600×900 30~40 2.2 405
SLT4003 4000 300 1400 2000×1000 1980×900 35~40 2.2 470
SLT4004 4000 300 1400 2000×1200 1980×900 35~40 2.2 490
SLT4005 4000 300 1400 2200×1000 2000×900 35~40 2.2 480
SLT4006 4000 300 1400 2200×1200 2000×900 35~40 2.2 505
SLT4007 4000 350 1300 1700×1500 1620×1400 35~40 2.2 570
SLT4008 4000 350 1300 2200×1800 1620×1400 35~40 2.2 655

3m Stationary Three Scissors Hydraulic Lift Tables 4000kg Table Lift Mechanism

Description:

  • Exceptional anti-corrosion protection is achieved through a high-quality stoving varnish treatment applied to the surface of the Scissor Lift Table, ensuring its durability and longevity.
  • The premium pump station guarantees smooth and stable lifting and lowering operations, delivering consistent and reliable performance.
  • The scissor design incorporates advanced anti-pinch technology and self-lubricating main pin-rolls, enhancing the table's durability, reducing friction, and minimizing maintenance requirements.
  • For convenient lifting and installation, the table is equipped with a removable lifting eye, facilitating effortless handling and efficient setup.
  • The heavy-duty cylinders feature a drainage system and check valve, preventing unexpected lowering in the event of a hose burst and prioritizing operator safety during operation.
  • A pressure relief valve is integrated to safeguard against overloading, while the flow control valve allows for adjustable descent speed, providing precise control and operational flexibility.

Safety Precautions:

  • Industrial scissor lift table Explosion-Proof Valves: These valves safeguard the hydraulic pipes and prevent hydraulic pipe ruptures.
  • Pressure Relief Valve: This valve helps regulate pressure and prevents high pressure buildup during upward movements.
  • Emergency Descent Valve: In the event of an emergency or power failure, this valve enables a controlled descent of the platform.
  • Anti-Fall Device: This feature ensures the stability and safety of the platform, preventing any accidental dropping.
  • Automatic Safety Sensors: Equipped with sensors, the lift platform will automatically stop when it encounters any obstacles or barriers.

Conditions:

Quality warranty: 24 Months.Free Spare Parts Replacement.

Packing: will be packed by high quality boxes and put on pallet.

Contact Informaiton:

Mr. Dennis
Mob Whatsapp and Wechat:+86-18562653283
Skype:Dennis Gaomingfang
