Automotive Battery Powered Scissor Lift Hydraulic Electric Aerial Work Platform
Automotive Battery Powered Scissor Lift Hydraulic Electric Aerial Work Platform
Automotive Battery Powered Scissor Lift Hydraulic Electric Aerial Work Platform
Automotive Battery Powered Scissor Lift Hydraulic Electric Aerial Work Platform
Specifications
Brand Name :
HESHAN
Model Number :
MST
Certification :
CE,ISO,SGS,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
USD1000~USD 2000 per set
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000 set per year
Delivery Time :
15-25 work days
Packaging Details :
export packing cases
Table size :
2550*1530mm
Lift drive / actuation :
Hydraulic, Electric Motor, AC/DC/Petrol/Diesel
Weight :
1360kg
Warranty :
2 Year
Lift mechanism :
Scissor Lift
After-sales service provided :
Video technical support, Online support
Power :
3kW, 2.2kw, 1.5kw, 1-3kw, By Battery
Color :
Blue, Red, Choice, Optional, grew
Max. lifting height :
20M
Voltage :
220v/380v/450v, According to local voltage
Keywords :
Scissor lift, mobile hydraulic scissor lift platform, hydraulic car lift, Self propelled scissor lift platform
Control System :
PLC Control
MOQ :
1 Set
Payment Term :
T/T, L/C
Description

Hydraulic Automotive Electric Battery Scissor Lift Aerial Work Platform

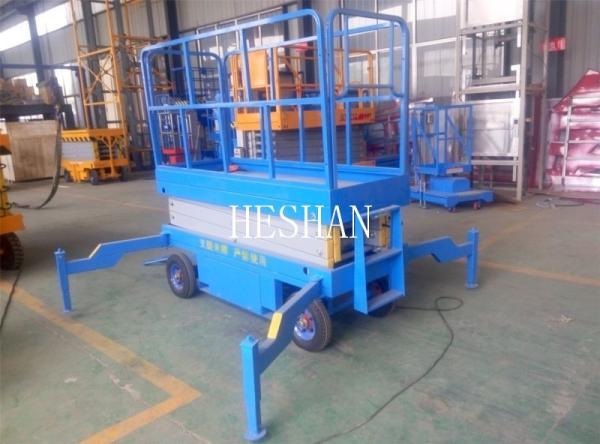

This is a wheels Scissor Lift Aerial Work Platform. It's like a little elevator on wheels that can lift people and things up high. It's super useful for things like fixing lights or painting ceilings. And the wheels make it easy to move around to different spots. Overall, it's a pretty cool piece of equipment that can save a lot of time and effort.
These lifts are designed with a scissor mechanism that is powered by either hydraulic or electric means, providing a smooth and efficient lifting operation. The platform is mounted on wheels or casters for easy mobility and maneuverability, and it can be adjusted to reach higher elevations.

Basic Parameter:

Model No. Table Size Loading Capacity Platform Height Working Height (m) Retract Height (m) Voltage Overall size N.W.(kg)
MSL0504 2100*830 500 4 6 1.2 1 or 3phase 2250*950*1100 800
MSL0506 2100*830 500 6 8 1.2 1 or 3phase 2250*950*1200 880
MST0507 2100*830 500 6.8 8.8 1.28 1 or 3phase 2250*950*1200 970
MST0508 2100*930 500 8 10 1.38 1 or 3phase 2250*1060*1380 1050
MST0509 2100*930 500 9 11 1.5 1 or 3phase 2250*1060*1500 1165
MST0510 2100*1230 500 10 12 1.53 1 or 3phase 2250*1350*1530 1360
MST0311 2100*1230 300 11 13 1.65 1 or 3phase 2250*1350*1650 1400
MST0512 2550*1530 500 12 14 1.75 1 or 3phase 2796*1670*1750 2260
MST0514 2812*1530 500 14 16 1.81 1 or 3phase 3067*1730*1810 2486
MST0316 2812*1600 300 16 18 2.08 1 or 3phase 3067*1810*2080 3063
MST0318 3070*1600 300 18 20 2.08 1 or 3phase 3321*1810*2080 3900
MST1004 2100*1200 1000 4 6 1.18 3phase 2250*1350*1180 1250
MST1006 2100*1200 1000 6 8 1.3 3phase 2250*1350*1300 1400
MST1008 2100*1200 1000 8 10 1.42 3phase 2250*1350*1420 1585
MST1010 2100*1200 1000 10 12 1.53 3phase 2250*1350*1530 1700
MST1012 2550*1530 1000 12 14 1.75 3phase 2796*1700*1780 2560
MST1014 2812*1600 1000 14 16 1.81 3phase 3067*1810*1900 3230
MST1506 2100*1530 1500 6 8 1.53 3phase 2250*1750*1530 1780
MST1508 2100*1530 1500 8 10 1.69 3phase 2250*1750*1690 2070
MST1510 2100*1500 1500 10 12 1.85 3phase 2250*1750*1850 2250
MST1512 2600*1500 1500 12 14 1.85 3phase 3000*1900*2300 3500
MST1514 3200*1600 1500 14 16 1.96 3phase 3500*2000*2200 5000
MST2006 2100*1530 2000 6 8 1.53 3phase 2250*1750*1530 1780
MST2008 2100*1530 2000 8 10 1.69 3phase 2250*1750*1690 2070
MST2010 2100*1530 2000 10 12 1.85 3phase 2250*1750*1850 2250
MST2012 2600*1500 2000 12 14 1.954 3phase 3000*1900*2300 4500
MST2014 3200*1600 2000 14 16 2.23 3phase 3500*2000*2500 5500

Automotive Battery Powered Scissor Lift Hydraulic Electric Aerial Work PlatformAutomotive Battery Powered Scissor Lift Hydraulic Electric Aerial Work Platform

The unique configurations of the mobile scissor lift include:

  1. A platform made of sturdy 60mm x 40mm rectangular tubing and reinforced with a 3mm checkered iron plate.
  2. Scissors constructed of high strength manganese steel measuring 150mm x 50mm x 5mm.
  3. A hydraulic system powered by a 310 10ml/r pump.
  4. High precision hydraulic cylinders, with two sets of ￠80 and two sets of ￠100.
  5. Durable piston rods, featuring ￠40 and ￠50 with a hard chromium plating surface.
  6. A high-pressure oil pump and hydraulic oil adjusted for summer at 45＃ and winter at 32＃.
  7. 600-9 rubber wheels, with four pieces in total.

In terms of safety, the mobile scissor lift is equipped with:

  1. Explosion-proof valves for added protection.
  2. Anti-skid plate for secure footing.
  3. Overload protective system to prevent overloading.
  4. Single control solenoid valves to prevent dropping in the event of power failure.
  5. Emergency decline valve for emergency situations.
  6. Four supporting legs for added stability.
Our Electric Scissor Man Lift incorporates efficient power management systems to optimize energy usage and extend battery life. The lift is equipped with smart charging technology, allowing for faster and more efficient charging cycles. This ensures that the lift is ready for use when needed while minimizing energy consumption and reducing operational costs.
In summary, our Electric Scissor Man Lift offers industry-leading technology, intelligent safety features, quiet and environmentally friendly operation, enhanced accessibility and ergonomics, versatile maneuverability, durable construction, and efficient power management. It is a reliable and efficient solution that prioritizes safety, productivity, and sustainability. Choose our Electric Scissor Man Lift to elevate your operations and experience the benefits of advanced technology and superior design.
