Specifications
Brand Name :
HESHAN
Model Number :
GTJZ
Certification :
CE,ISO,SGS,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
USD7000~USD10000 per set
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000 set per year
Delivery Time :
15 work days
Packaging Details :
export packing cases
Table size :
2270×1150mm
Rated loading capacity :
300kg
Max. lifting height :
6000mm~16000mm
Application :
Loading, Indoor or outdoor aerial work, Maintenance in aerial work, Out aerial working platform, Aerial Installation
Keywords :
Scissor lift, mobile hydraulic scissor lift platform, hydraulic car lift, Self propelled scissor lift platform
Delivery package :
Export standard plywood case
Feature :
Easy Operation, Low Noise, Convenience, Safety, people can operate on the platform
Voltage :
110v 220v 240v 380v Optional,According to local voltage
Color :
Blue, Red, Choice, Optional, grew
Lift mechanism :
Scissor Lift
Lift drive :
Hydraulic, Electric Motor
After-sales service provided :
Free spare parts, Online support
Description

12m Self Propelled Driving Electric Automotive Scissor Lift

Hydraulic Self Propelled Scissor Lift work platforms are designed to provide access to elevated heights in a range of applications. This type of lift is powered by hydraulic technology, allowing them to operate in a variety of environments with minimal manual effort. The platform can be operated from ground level, and can reach heights up to 40 feet. These machines are typically used for construction, maintenance, installation and inspection operations, and are ideal for working in areas that are difficult to access. Safety features such as adjustable stabilizers and integrated brakes help ensure the operator's safety while working. With the flexibility and dependability of these machines, they can be used in multiple industries, including industrial and commercial facilities, airports, and warehouses.

Basic Parameter:

Model No. GTJZ06 GTJZ08 GTJZ10 GTJZ12 GTJZ14
Working Height(mm) 8000 10000 12000 14000 15800
Lifting Height (mm) 6000 8000 10000 12000 13800
Lifting capacity 300 300 300 300 227
Max height-guardrail unfold (mm) 2150 2275 2400 2525 2590
Max height-guardrail folded (mm) 1190 1315 1440 1565 2050
Overall Length (mm) 2400 2640
Overall Width (mm) 1150 1130
Platform Size (mm) 2270×1150 2840x1390
Platform extend size (mm) 900
Min ground clearance (mm) 110/20
Wheelbase (mm) 1850
Min turn radius-inner wheel (mm) 0
Min turn radius-outer wheel (mm) 2100 2700
Power source (v/kw) 24/3.0 24/4.5
Running speed-folding (km/h) 4
Running speed-rising (km/h) 0.8
Rising/falling speed (sec) 40/50 70/80
Battery (V/AH) 4×12/135 4x12/150
Charger (V/A) 24/25 24v/30
Max climbing ability (%) 20
Max working allowable angle 2-3°
Way of control Electro-hydraulic proportion control
Driver Double front-wheel
Hydraulic drive Double rear-wheel
Wheel size-stuffed&no mark Φ381×127
Whole weight (kg) 1900 2080 2490 2760 3320

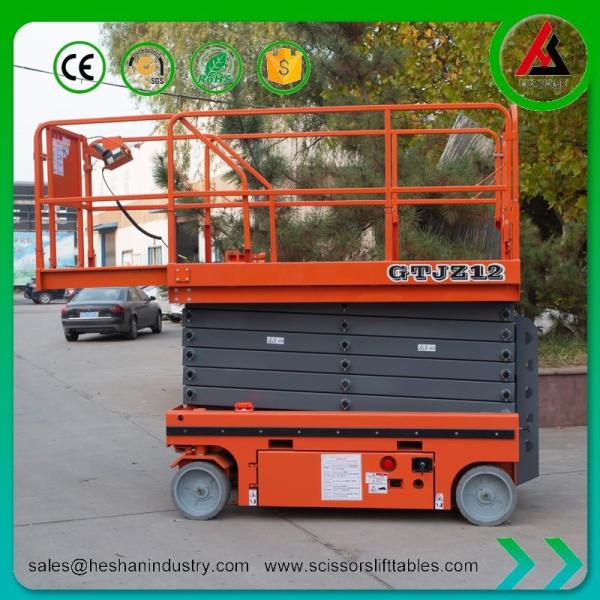

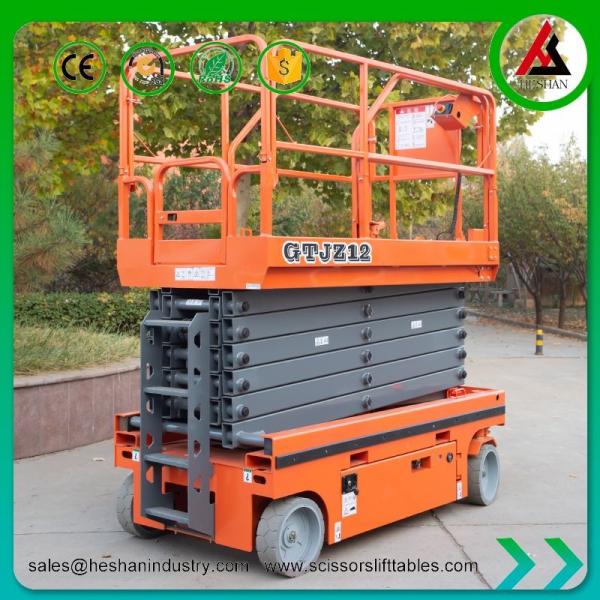

12m Self Propelled Automotive Scissor Lift Electric Aerial Work Platform Lift

The Details Mobile scissor lift:

12m Self Propelled Automotive Scissor Lift Electric Aerial Work Platform Lift

Configuration:
  • Folding guardrails
  • Multi-function control handle
  • Anti-skidding platform
  • Extendable platform
  • Automatic lock gate
  • High strength scissors
  • Durable hydraulic cylinder
  • Stable hydraulic pump station
  • Hydraulic drive motor
  • Non-marking PU driving wheels
  • Pot hole automatic protection system
  • Automatic brakes system
  • Emergency stop button
  • Emergent descent valve
  • Automatic diagnostic indicator
  • Tilt sensor alarm
  • Siren
  • Safety brackets
  • Forklift hole
  • Intelligent battery charger
  • High capacity battery

Features & Advantages:
  • Controlled by imported intelligent technology.
  • Powered by DC, can be controlled manually or automatically with adjustable speed.
  • Excellent climbing ability.
  • Recharge restriction for platform rising.
  • Automatic braking function for driving motor.
  • Emergent drop locked.
  • Automatic malfunction diagnosis for convenient maintenance.

Safety Precautions:
  • Explosion-proof valves to protect hydraulic pipe and prevent pipe rupture.
  • Spillover valve to prevent high pressure during upward movement and adjust pressure.
  • Emergency decline valve for emergency descent or power off.
  • Anti-dropping device to prevent platform falling.

Scissor lift Factory:

12m Self Propelled Automotive Scissor Lift Electric Aerial Work Platform Lift

12m Self Propelled Automotive Scissor Lift Electric Aerial Work Platform Lift

Introducing our remarkable Electric Scissor Man Lift, a game-changing solution for efficient and safe vertical access. With its cutting-edge technology and innovative design, this versatile lift revolutionizes the way you work at heights. From its impressive performance to its user-friendly features, every aspect of our Electric Scissor Man Lift is meticulously crafted to deliver exceptional functionality and surpass industry standards.
Designed for optimum efficiency, our Electric Scissor Man Lift streamlines your operations by providing quick and convenient vertical access. Its robust scissor mechanism enables smooth and precise elevation, allowing you to reach elevated work areas with ease. The spacious platform provides ample workspace for you and your tools, boosting productivity and minimizing downtime. Get the job done efficiently and effectively with our Electric Scissor Man Lift.
