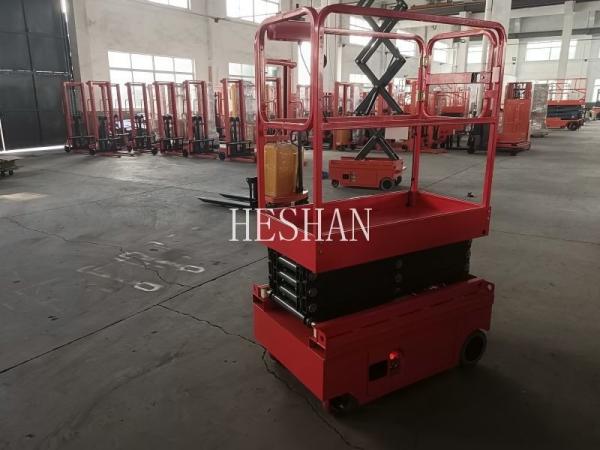

Hydraulic 3.9M Self Propelled Lifting Platform Mobile Indoor Electric Scissor Lift
Hydraulic 3.9M Self Propelled Lifting Platform Mobile Indoor Electric Scissor Lift
Hydraulic 3.9M Self Propelled Lifting Platform Mobile Indoor Electric Scissor Lift
Hydraulic 3.9M Self Propelled Lifting Platform Mobile Indoor Electric Scissor Lift
Specifications
Brand Name :
HESHAN
Model Number :
SGT
Certification :
CE,ISO,SGS,ROHS,CE, GS
Place of Origin :
CHINA
MOQ :
1 SET
Price :
3000~4000 USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 units per month
Delivery Time :
5-8 work days
Packaging Details :
Standard export packing
Application :
Maintenance, Aerial work, maintenance and other operations, Aerial installation, Widely
Table size :
1170*600mm
Load Capacity :
300kg
Lift drive / actuation :
Hydraulic, Electric Motor
Power :
Battery
Warranty :
1 Year
After-sales service provided :
Free spare parts, Online support
Lift mechanism :
Scissor Lift
Voltage :
as customer's need
Keywords :
Hydraulic Vehicle-mounted Elevating Platform, Hydraulic Scissor Lift Trolley, electric platform lift, scissor lift platform, scissor man lift
Lifting Speed :
0.2m/s
Lowering Speed :
0.1m/s
Material :
Steel
Name :
Hydraulic Scissor Lift
Description

Electric 3.9M Hydraulic Self Propelled Small Mobile Indoor Scissor Lift

Small Mobile Indoor Scissor Lift is a type of equipment used for vertical lifting of light to medium loads in indoor spaces. It consists of a platform that is raised and lowered by a scissor mechanism, which is powered by either electric or hydraulic means. The platform is mounted on wheels or casters for easy mobility and maneuverability in tight spaces. These lifts are commonly used in warehouses, factories, and other indoor facilities for tasks such as maintenance, stock picking, and inventory management. They are compact, lightweight, and easy to operate, making them an ideal solution for indoor lifting needs.

Specification:
Model Type SGT3.0 SGT3.9
Max. Platform Height (mm) 3000 3900
Max. Working Height (mm) 5000 5900
Lift Rated Capacity (kg) 300 300
Ground Clearance (mm) 60
Platform Size (mm) 1170*600
Wheelbase (mm) 990
Min. turning radius (mm) 1200
Max. Drive peed(Platform Lifted) 4km/h
Max. Drive Speed(Platform down) 0.8km/h
Lifting/falling speed (SEC) 20/30
Max. Travel Grade (%) 10-15
Drive motors (V/KW) 2×24/0.3
Lifting motor (V/KW) 24/0.8
Battery (V/AH) 2×12/ 80
Charger (V/A) 24/15A
Max allowable working angle 2°
Overall Length(mm) 1180
Overall Width (mm) 760
Overall Height (mm) 1830 1930
Overall Net Weight (kg) 490 600

Small Hydraulic Scissor Lifts features:
Hydraulic 3.9M Self Propelled Lifting Platform Mobile Indoor Electric Scissor LiftHydraulic 3.9M Self Propelled Lifting Platform Mobile Indoor Electric Scissor Lift

1. Compact and Portable: Mini Portable Man Lifts are compact and portable, making them easy to move around and operate in tight spaces.
2. Versatile Design: Mini Portable Man Lifts have a versatile design that allows them to be used in various work environments, including production lines, warehouses, and factories.
3. Strong Load Capacity: Despite their small size, Mini Portable Man Lifts have a strong load capacity, capable of handling heavy items with ease.
4. Safety Features: Mini Portable Man Lifts are equipped with safety features such as safety belts, limit switches, and anti-slip pedals, ensuring maximum safety for workers during operation.
5. Low Maintenance: Mini Portable Man Lifts are designed for easy maintenance, reducing repair costs and extending their lifespan.
6. High Efficiency: The hydraulic systems used in Mini Portable Man Lifts allow for quick and efficient lifting and lowering, improving work efficiency.
7. Practical Applications: Mini Portable Man Lifts are widely applicable in different fields, including manufacturing, logistics, warehousing, and construction. They can handle various lifting tasks, making them a valuable asset in numerous industries.
