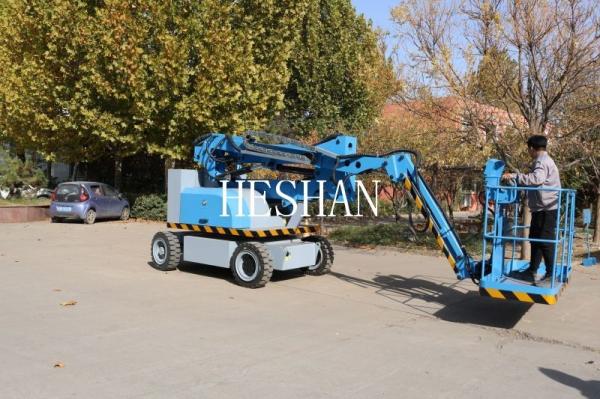

10m 12m 14m Spider Aerial Boom Lift Equipment With CE Approved
10m 12m 14m Spider Aerial Boom Lift Equipment With CE Approved
10m 12m 14m Spider Aerial Boom Lift Equipment With CE Approved
10m 12m 14m Spider Aerial Boom Lift Equipment With CE Approved
Specifications
Brand Name :
HESHAN
Model Number :
GTZZ
Certification :
CE,ISO,SGS,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
USD 8000~USD 30000
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
15-25 work days
Packaging Details :
Export packing cases
Application :
plant installation, maintenance, venue construction,maintenance, construction engineering, large-scale warehousing, aviation,aerospace industry applications, airports,harbors, urban utilities,gardening, curtain wall engineering
Feature :
Easy Operation Safety Convenience, platform 360° rotation, Low noise, Electrostatic spraying painting, Self-Propelled Hydraulic Mobile
Color :
Blue, Red, Yellow,Orange
Table Size :
1.83*0.76M
Lifting height :
8m,10m,12m,14m,16m,19m,22m,28m~45m
Power :
Diesel,Battery
Warranty :
1 Year
Rotation Angle :
360 degree
Lift Mechanism :
Articulated Lift
Weight :
2200kg
Controls :
Varies
Drive Speed :
Varies
Ground Clearance :
Varies
Height :
Varies
Description

10m 12m 14m Aerial Spider Articulating Boom Lift With CE

Spider articulating boom lifts are also known as spider lifts, tracked lifts, or compact crawlers. These lifts are designed to provide safe and efficient access to high and hard-to-reach areas in a variety of environments. The spider lift is mounted on a tracked chassis, which allows for greater stability and mobility on uneven or rough terrain. The articulated boom can be extended and positioned precisely, and the spider lift's compact size allows it to fit through narrow doorways and tight spaces. The spider lift is operated by a remote control, allowing the operator to work from a safe distance. Overall, spider articulating boom lifts are a versatile and efficient tool for a wide range of industries and applications.
Specification:
Model Type No. GTZZ-12D GTZZ-16D GTZZ-20D GTZZ-24D GTZZ-25D GTZZ-30D GTZZ-38D GTZZ-40D GTZZ-45D
Working Height Max 14 m 18 m 22 m 26.2 m 27.1 m 32 m 40.1 m 42.3 m 47.8 m
Platform Height Max 12 m 16 m 20 m 24.2 m 25.1 m 30 m 38.1m 40.3 m 35.8 m
Working Radius Max 8 m 9.8 m 12.6 m 15.8 m 16 m 20.2 m 21.6 m 21.6 m 23 m
Lifting capacity 200kg 230 kg 230 kg 230 kg 230 kg 480 kg 480 kg 480kg 480 kg
Crossing Height 5m 7.75 m 9.2 m 9.8 m 9.2 m 12.2m 19.5m 19.5m 19.5m
Length( stowed) Ⓓ 5.3m 7.7 m 9.07 m 9.92 m 9.75 m 12.52 m 11.37 m 12.15m 11.6m
Width (stowed) Ⓔ 2m 2.28 m 2.38 m 2.48 m 2.58 m 2.5 m 2.5 m 2.49m 2.5 m
Height(stowed) Ⓒ 2.26m 2.38 m 2.49 m 2.82 m 2.8 m 3.17 m 3.17 m 3.17m 5.1 m
Wheel base Ⓕ 2.4m 2.45m 2.45m 3 m 3 m 3.66 m 3.96 m 3.96m 5.6 m
Ground clearance Ⓖ 200mm 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.38 m
Platform Ⓑ*Ⓐ 1.1*0.67m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 2.44×0.91m 2.44×0.91m 2.44*0.91m 2.44×0.91m
Tuning radius (inside) 3.0m 2.61 m 2.66 m 2.6 m 2.6 m 2.74 m 3.13m 3.13m 2.69 m
Tuning radius(outside) 5.2m 5.61 m 5.66 m 5.85m 5.85 m 5.85 m 6.5m 6.5m 7.07 m
Speed(stowed) 3.2km/h 4.2km/h 4.2km/h 4.2 km/h 4.2 km/h 4.14 m 4.14 m 4.14m 4.4 km/h
Travel speed(raised) 0.8km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h
Turn table swing 360° Continuous
Platform Leveling Automatic leveling
Swing Speed 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm
Grade ability 30% 45% 45% 45% 45% 45% 45% 45% 40%
Solid tire 33*12-20 33×12-20 33×12-20 36×14-20 385/65-24 385/65-22.5 385/65-22.5 445/65-22.5 445/65-22.5

10m 12m 14m Spider Aerial Boom Lift Equipment With CE Approved10m 12m 14m Spider Aerial Boom Lift Equipment With CE Approved

Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.

10m 12m 14m Spider Aerial Boom Lift Equipment With CE Approved

Touch display fault code, easy maintenance.

If you're in need of a reliable and high-performing boom lift cherry picker, look no further. Our machines are engineered with the power and reach necessary to access hard-to-reach work areas. With strong terrainability and convenient operation, our articulated boom lifts are perfect for both indoor and outdoor use.

10m 12m 14m Spider Aerial Boom Lift Equipment With CE Approved

Versatile Applications for Various Industries
Our Boom lifts cater to a wide range of industries, including construction, maintenance, facility management, and more. Whether you need to install lighting fixtures, conduct routine inspections, or perform complex repairs, our Boom lifts offer the versatility to meet your specific requirements. With their robust design and high weight capacity, they can handle different materials, tools, and equipment, making them an indispensable asset for your projects.
Unmatched Reach and Maneuverability
Reach new heights and access the most demanding work areas effortlessly with our Boom lifts. Equipped with an extendable and articulating boom arm, they provide exceptional reach and maneuverability, even in tight spaces. You can confidently navigate obstacles, position yourself precisely, and accomplish tasks that were once deemed impossible. Our Boom lifts give you the freedom to elevate your projects and exceed expectations.
