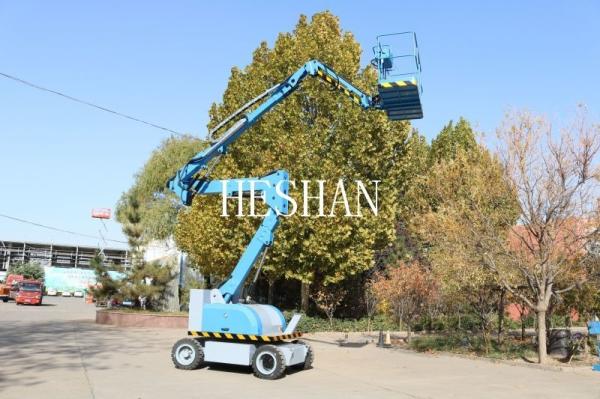

Gtzz Diesel Articulated Boom Lift Platform 230kg Load Capacity For Aerial Work
Gtzz Diesel Articulated Boom Lift Platform 230kg Load Capacity For Aerial Work
Gtzz Diesel Articulated Boom Lift Platform 230kg Load Capacity For Aerial Work
Gtzz Diesel Articulated Boom Lift Platform 230kg Load Capacity For Aerial Work
Specifications
Brand Name :
HESHAN
Model Number :
GTZZ
Certification :
CE,ISO,SGS,ROHS
Place of Origin :
China
MOQ :
1 set
Price :
USD 8000~USD 30000
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
15-25 work days
Packaging Details :
Export packing cases
Application :
plant installation, maintenance, venue construction,maintenance, construction engineering, large-scale warehousing, aviation,aerospace industry applications, airports,harbors, urban utilities,gardening, curtain wall engineering
Feature :
Easy Operation Safety Convenience, platform 360° rotation, Low noise, Electrostatic spraying painting, Self-Propelled Hydraulic Mobile
Max. Working height :
45M
Power supply :
Diesel-powered,Battery powered
Lifting height :
8m,10m,12m,14m,16m,19m,22m,28m~45m
Machinery Test Report :
Provided
Warranty :
1 Year
Rotation Angle :
360 degree
Lift Mechanism :
Articulated Lift
Weight :
2200kg
Product Name :
Articulated Boom Lift
Safety Features :
Safety Harness, Emergency Stop, etc.
Description

Gtzz16 China Work Aerial Platform Diesel Power Articulated Boom Lift

Diesel articulated boom lift platforms are versatile pieces of equipment that are used in various industries and applications. They are commonly used in construction, maintenance, and industrial applications for tasks such as painting, window cleaning, and equipment maintenance. The diesel engine provides the lift with a reliable and powerful source of energy, making it suitable for outdoor and rough terrain use. Additionally, their articulated booms provide greater flexibility and maneuverability, allowing operators to work around obstacles and in confined spaces. Overall, the combination of outreach, flexibility, and power make diesel articulated boom lift platforms a valuable tool for any industry that requires access to high and hard-to-reach areas, especially in outdoor and rough terrain environments.
Specification:
Model Type No. GTZZ-12D GTZZ-16D GTZZ-20D GTZZ-24D GTZZ-25D GTZZ-30D GTZZ-38D GTZZ-40D GTZZ-45D
Working Height Max 14 m 18 m 22 m 26.2 m 27.1 m 32 m 40.1 m 42.3 m 47.8 m
Platform Height Max 12 m 16 m 20 m 24.2 m 25.1 m 30 m 38.1m 40.3 m 35.8 m
Working Radius Max 8 m 9.8 m 12.6 m 15.8 m 16 m 20.2 m 21.6 m 21.6 m 23 m
Lifting capacity 200kg 230 kg 230 kg 230 kg 230 kg 480 kg 480 kg 480kg 480 kg
Crossing Height 5m 7.75 m 9.2 m 9.8 m 9.2 m 12.2m 19.5m 19.5m 19.5m
Length( stowed) Ⓓ 5.3m 7.7 m 9.07 m 9.92 m 9.75 m 12.52 m 11.37 m 12.15m 11.6m
Width (stowed) Ⓔ 2m 2.28 m 2.38 m 2.48 m 2.58 m 2.5 m 2.5 m 2.49m 2.5 m
Height(stowed) Ⓒ 2.26m 2.38 m 2.49 m 2.82 m 2.8 m 3.17 m 3.17 m 3.17m 5.1 m
Wheel base Ⓕ 2.4m 2.45m 2.45m 3 m 3 m 3.66 m 3.96 m 3.96m 5.6 m
Ground clearance Ⓖ 200mm 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.38 m
Platform Ⓑ*Ⓐ 1.1*0.67m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 2.44×0.91m 2.44×0.91m 2.44*0.91m 2.44×0.91m
Tuning radius (inside) 3.0m 2.61 m 2.66 m 2.6 m 2.6 m 2.74 m 3.13m 3.13m 2.69 m
Tuning radius(outside) 5.2m 5.61 m 5.66 m 5.85m 5.85 m 5.85 m 6.5m 6.5m 7.07 m
Speed(stowed) 3.2km/h 4.2km/h 4.2km/h 4.2 km/h 4.2 km/h 4.14 m 4.14 m 4.14m 4.4 km/h
Travel speed(raised) 0.8km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h
Turn table swing 360° Continuous
Platform Leveling Automatic leveling
Swing Speed 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm
Grade ability 30% 45% 45% 45% 45% 45% 45% 45% 40%
Solid tire 33*12-20 33×12-20 33×12-20 36×14-20 385/65-24 385/65-22.5 385/65-22.5 445/65-22.5 445/65-22.5

Gtzz Diesel Articulated Boom Lift Platform 230kg Load Capacity For Aerial Work

Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.

Touch display fault code, easy maintenance.

The Articulated Boom Lift is the perfect equipment for those seeking precision, versatility, and power in their aerial work platform. Its multi-section boom allows for easy access to hard-to-reach areas, and with two types to choose from, engine drive and electric drive, it is suitable for both indoor and outdoor work environments. Its features, including convenience, safety, and reliability, make it the ideal equipment for any work setting.

Customizable Colors
Articulated Boom lifts offer the option of customization, allowing customers to choose from a range of colors that align with their branding or personal preferences. Whether it's a vibrant hue to make a statement or a color that blends seamlessly with the surrounding environment, customization adds a touch of uniqueness to the equipment, making it visually appealing and easily recognizable on the job site.
Specialized Attachments and Accessories
To cater to specific project requirements, Articulated Boom lifts can be equipped with a variety of specialized attachments and accessories. These include material handling hooks, tool trays, lighting systems, or even cameras for enhanced visibility. Customizing the lift with these specialized features allows operators to optimize productivity and efficiency for specific tasks, making the equipment versatile and adaptable.
